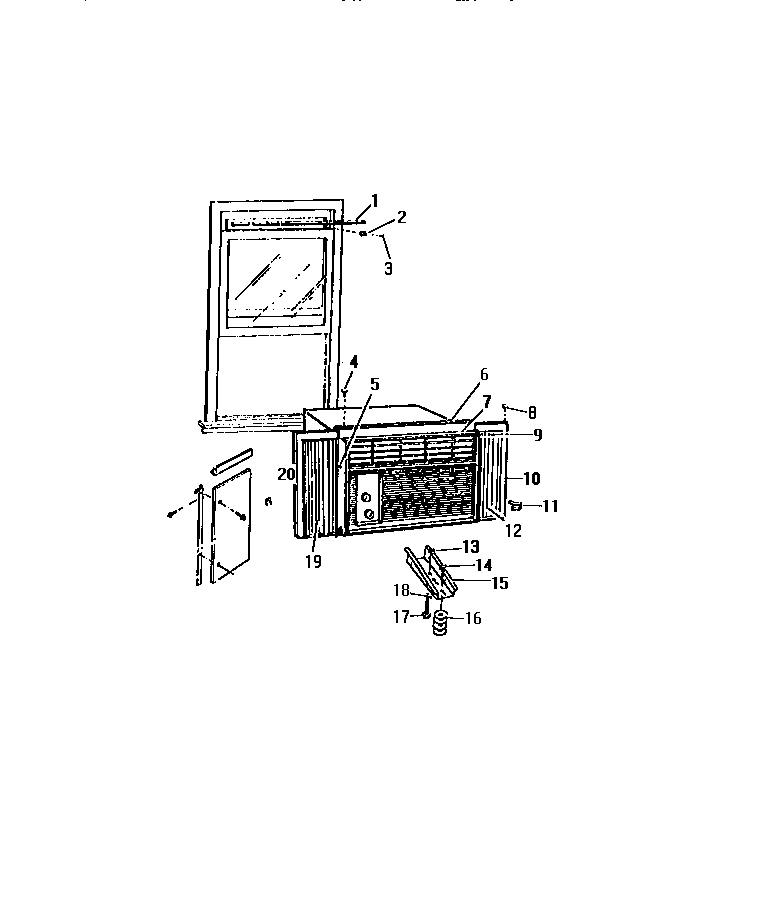

A11MEDTC2 07 – CABINET, WINDOW MOUNTING PARTS (`AA
Written by
in
A11MEDTC2 07 – CABINET, WINDOW MOUNTING PARTS (`AA
Products
| Position | Product |
|---|---|
| 1 | SEAL-SASH |
| 2 | STOP, SASH |
| 3 | SCREW |
| 5 | SCREW (6) |
| 6 | WCI 8007493 |
| 8 | SCREW (2) |
| 9 | RETAINER (2) |
| 9 | SCREW |
| 10 | CHANNEL, RH |
| 11 | CLIP-RETAINER |
| 14 | SCREW |
| 15 | WCI 8012989 |
| 16 | WASHER |
| 17 | SCREW-ADJUSTABLE |
| 18 | NUT |
| 19 | PANEL, ACCORDIAN |
| 20 | CHANNEL, LH |
