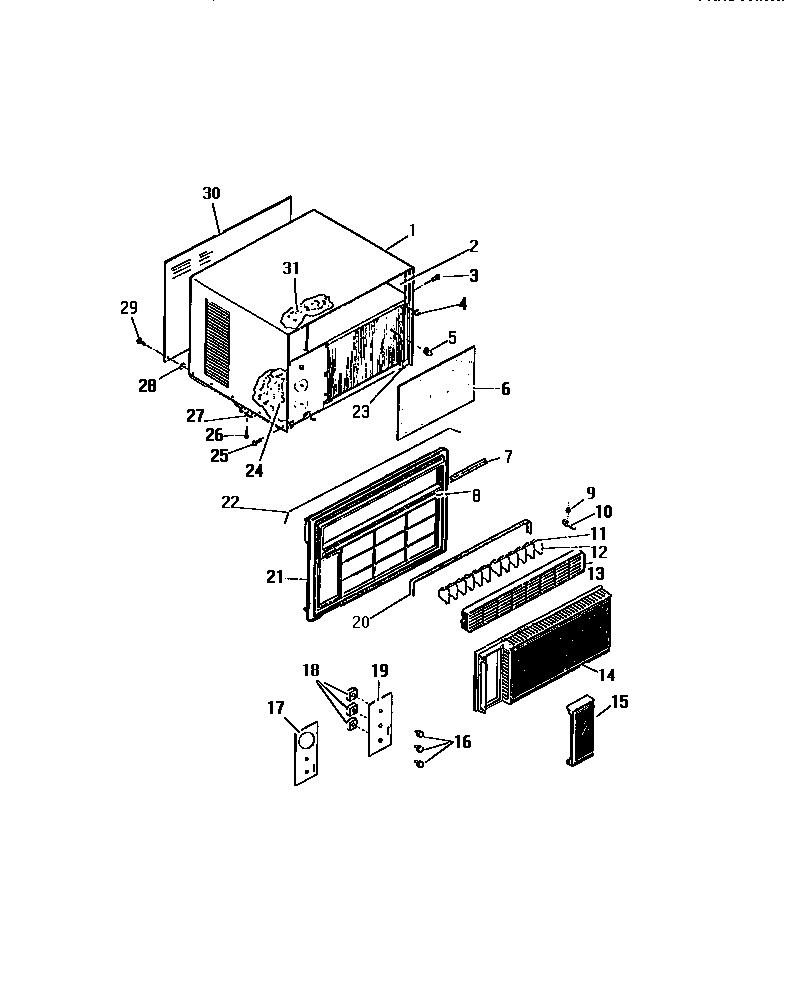

A11MEDTC2 08 – CABINET FRONT (`CC` CABINET MODELS)

A11MEDTC2 08 – CABINET FRONT (`CC` CABINET MODELS)

Written by

in

A11MEDTC2 08 – CABINET FRONT (`CC` CABINET MODELS)

Products

PositionProduct
1SHELL
2INSULATION-SHELL, R. SIDE
3SCREW-FRONT LOCKING
4WCI 8010928
5CLIP-CAP. TUBE
6WCI 8009020
7WCI 8014101
8WCI 8013750
9PAD (2)
10HANDLE (2)
11WCI 8013697
12LOUVER (12)
13WCI 8011041
14WCI 8013733
15HOUSING, ALMOND
16WCI 8006835
17WCI 8013737
18SPACER
20SEAL-CABINET, FRONT
21WCI 8013731
22WCI 8013740
23CLIP-FRONT TO BASE
24INSULATION-SHELL, L. SIDE
26WCI 8013148
27SUPPORT
28NUT
29SCREW
30PANEL-REAR
31WCI 8013177
