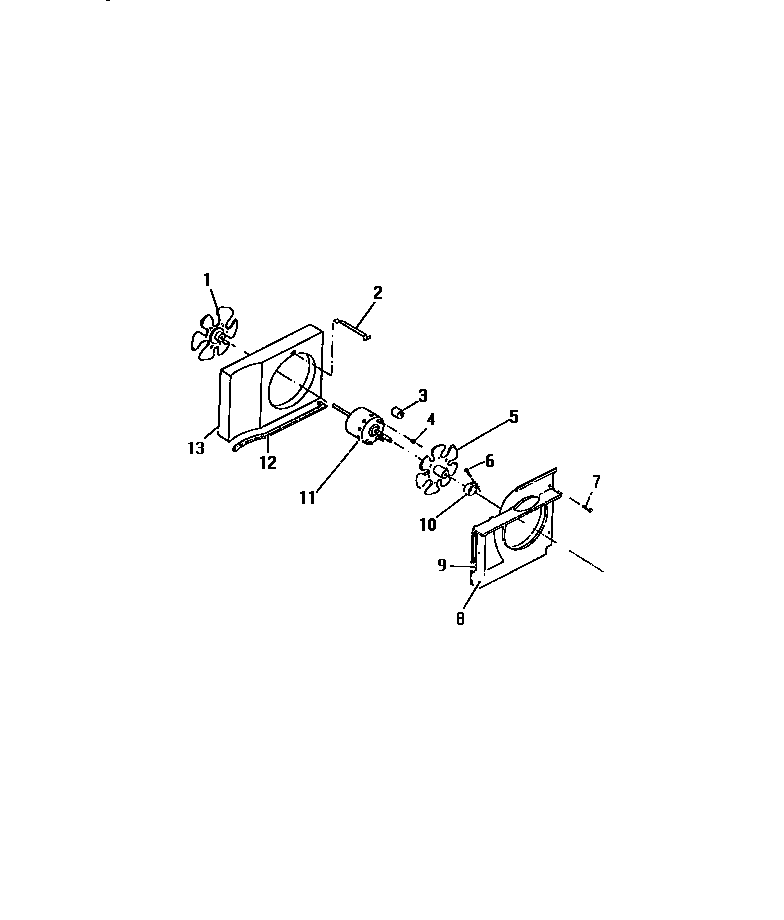

A11MEUC2 03 – SHROUD, SCROLL, BLOWER MOTOR (`AAA`

A11MEUC2 03 – SHROUD, SCROLL, BLOWER MOTOR (`AAA`

Written by

in

A11MEUC2 03 – SHROUD, SCROLL, BLOWER MOTOR (`AAA`

Products

PositionProduct
1WCI 8010951
1FAN, CONDENSER (INCL. CLAMP)
2WCI 8007517
2CLIP
3WCI 8013766
3WCI 8006943
3GROMMET (3)
4NUT (3)
5FAN, EVAPORATOR (INCL. CLAMP)
6SCREW
7SCREW (4)
8SHROUD, EVAPORATOR
9SEAL
10CLAMP
11WCI 8014232
11EVAPORATOR
11WCI 8019144
11WCI 8019146
12SEAL
13WCI 8007485
