A11MEUC2 08 – CABINET FRONT (`CC` CABINET MODELS)

A11MEUC2 08 – CABINET FRONT (`CC` CABINET MODELS)

Written by

in

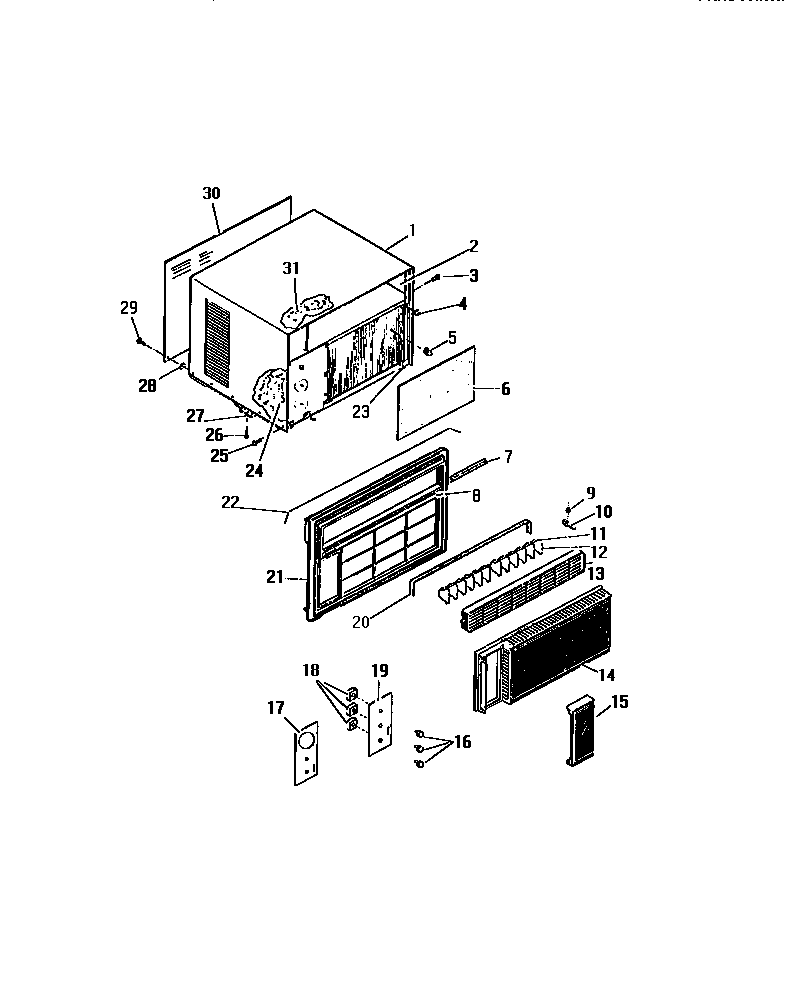

A11MEUC2 08 – CABINET FRONT (`CC` CABINET MODELS)

Products

Position	Product
1	SHELL
2	INSULATION-SHELL, R. SIDE
3	SCREW-FRONT LOCKING
4	WCI 8010928
5	CLIP-CAP. TUBE
6	WCI 8009020
7	WCI 8014101
8	WCI 8013749
9	PAD (2)
10	HANDLE (2)
11	WCI 8013697
12	LOUVER (12)
13	WCI 8011041
14	WCI 8013733
15	HOUSING, ALMOND
16	WCI 8006835
18	SPACER
19	WCI 8013705
20	SEAL-CABINET, FRONT
21	WCI 8013731
22	WCI 8013739
23	CLIP-FRONT TO BASE
24	INSULATION-SHELL, L. SIDE
26	WCI 8013148
27	SUPPORT
28	NUT
29	SCREW
30	PANEL-REAR
31	WCI 8013177
