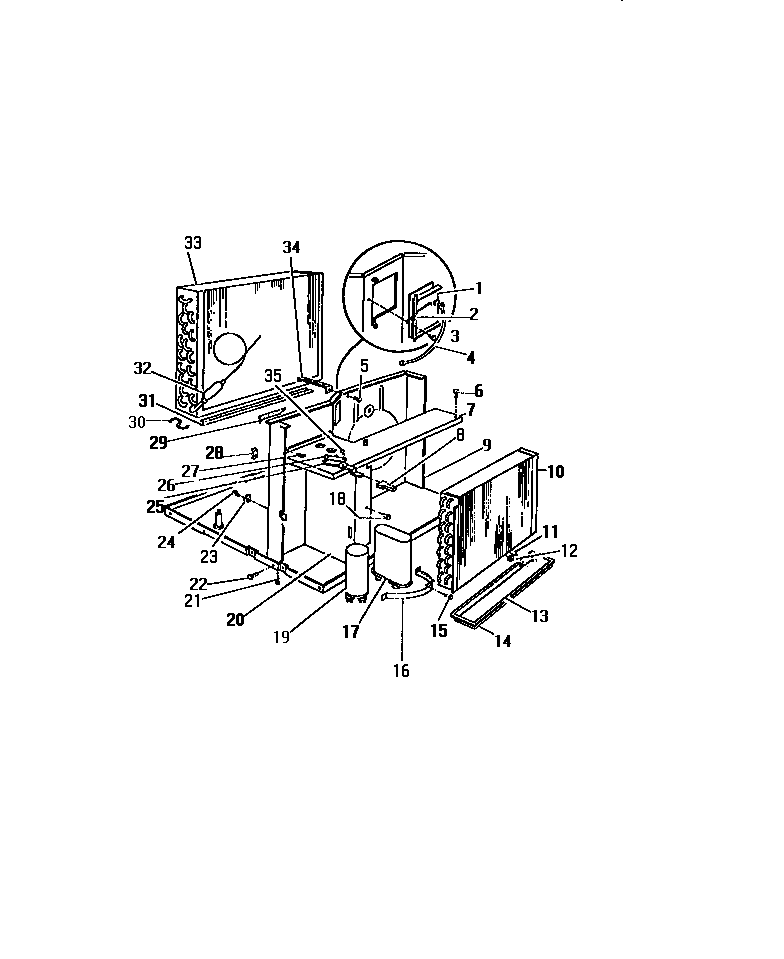

A11MEUC2 10 – EVAPORATOR, CONDENSER (`CC` CABINET – Aparts

A11MEUC2 10 – EVAPORATOR, CONDENSER (`CC` CABINET

Products

Position	Product
1	WCI 8003023
2	WCI 8003049
4	CABLE-VENT DOOR
5	WCI 8002951
7	PARTITION-HORIZONTAL
8	WCI 8007538
9	WCI 8007688
10	WCI 8013717
11	WCI 8006791
12	GROMMET, BASE DRAIN
13	TRAY
14	WCI 8007537
15	SCREW
16	CLAMP-CAPACITOR
19	CAPACITOR
20	DIVIDER-VERTICAL
21	SCREWS
22	WCI 8007567
23	WCI 8009025
25	WCI 8007539
26	WCI 8009028
28	CLIP-CONDENSER
29	INSULATION-REAR
30	SNUBBER
31	WCI 8007559
32	DRIER
33	WCI 8009126
34	SUPPORT
35	SCREW (4)
