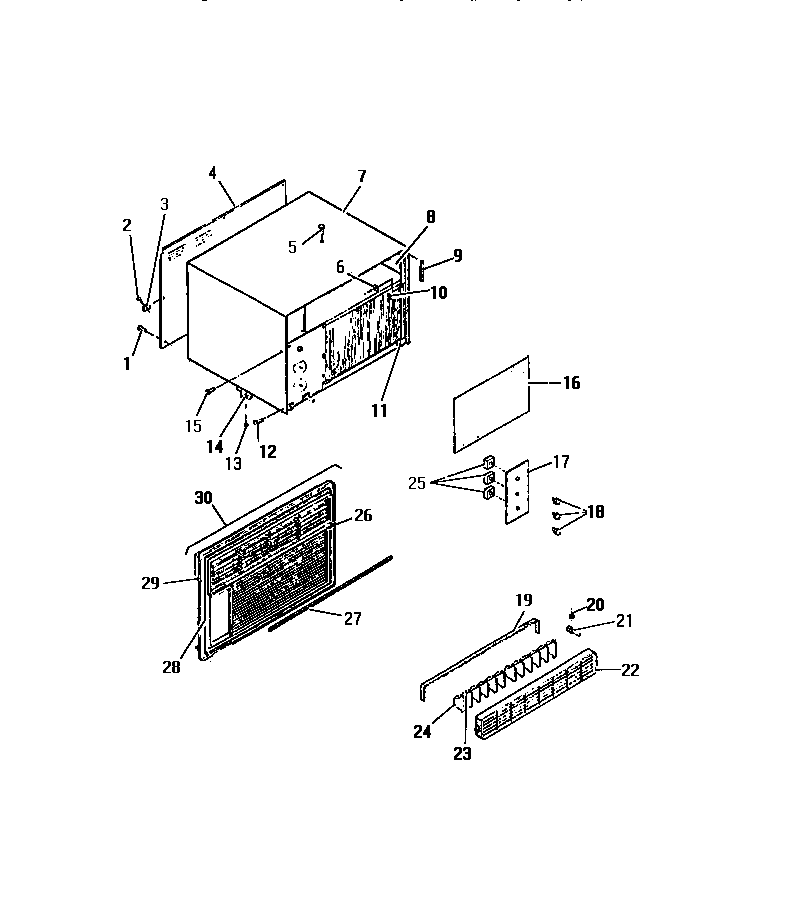

A11MEUSD2 29 – CABINET, FRONT (`B` CABINET MODELS)

A11MEUSD2 29 – CABINET, FRONT (`B` CABINET MODELS)

Written by

in

A11MEUSD2 29 – CABINET, FRONT (`B` CABINET MODELS)

Products

PositionProduct
3NUT
4PANEL-REAR
5SCREW
6WCI 8010928
7WCI 8010936
7WCI 8013178
8INSULATION-SHELL, L. SIDE
8WCI 8009355
8INSULATION-SHELL, R. SIDE
8WCI 8012995
8WCI 8012996
9WCI 8009359
9WCI 8009358
9SEAL-CABINET, FRONT
10CLIP-CAP. TUBE
11CLIP-FRONT TO BASE
12SCREW
13SCREW (2)
14SUPPORT
15SCREW-FRONT LOCKING
16WCI 8009020
17WCI 8016151
17WCI 8006841
17WCI 8009094
18WCI 8016109
18KNOB-CONTROL (3)
19WCI 8007684
20PAD (2)
21HANDLE (2)
22WCI 8007846
23WCI 8013697
24LOUVER (12)
25SPACER-DIAL PLATE
25SPACER
26WCI 8009110
26WCI 8013748
26WCI 8016330
27WCI 8014101
27WCI 8007681
28WCI 8016148
28WCI 8016147
29WCI 8007859
30WCI 8016162
30WCI 8016161
30WCI 8016163
