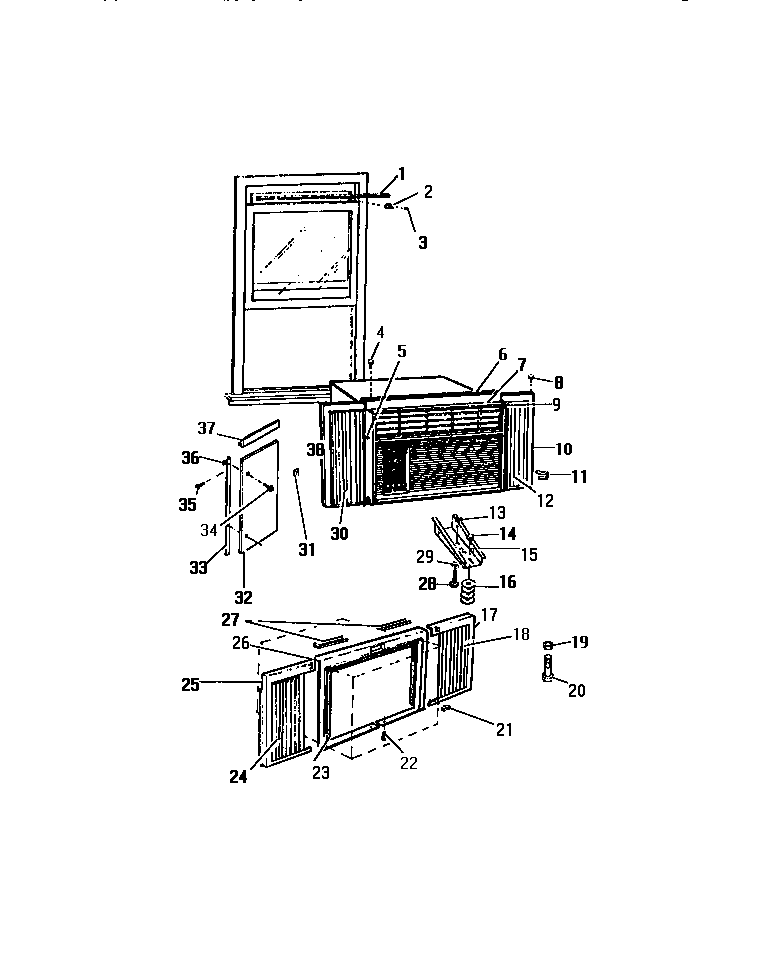

A11MEUTSD2 14 – CABINET, WINDOW MOUNTING PARTS (`AA

A11MEUTSD2 14 – CABINET, WINDOW MOUNTING PARTS (`AA

Written by

in

A11MEUTSD2 14 – CABINET, WINDOW MOUNTING PARTS (`AA

Products

PositionProduct
1SEAL-SASH
2STOP, SASH
3SCREW
5SCREW (6)
6WCI 8007493
6SUPPORT-TOP
7SEAL, RAIL
8SCREW (2)
9RETAINER (2)
9SCREW
10CHANNEL, RH
11CLIP-RETAINER
14SCREW
15WCI 8012989
16WASHER
17CHANNEL, E-Z HANDLE, R.H.
19WCI 8016090
20WCI 8016080
21SEAL, SNUBBER (2)
22SCREW (2)
23WCI 8016103
24WCI 8016111
25CHANNEL, E-Z HANDLE, L.H.
26FRAME, E-Z HANDLE
27GUIDE (2)
28SCREW-ADJUSTABLE
29NUT
30PANEL, ACCORDIAN
31CLIPS
33RETAINER (2)
34SCREW
35SCREW
36NUT
37SEAL (2)
38CHANNEL, LH
