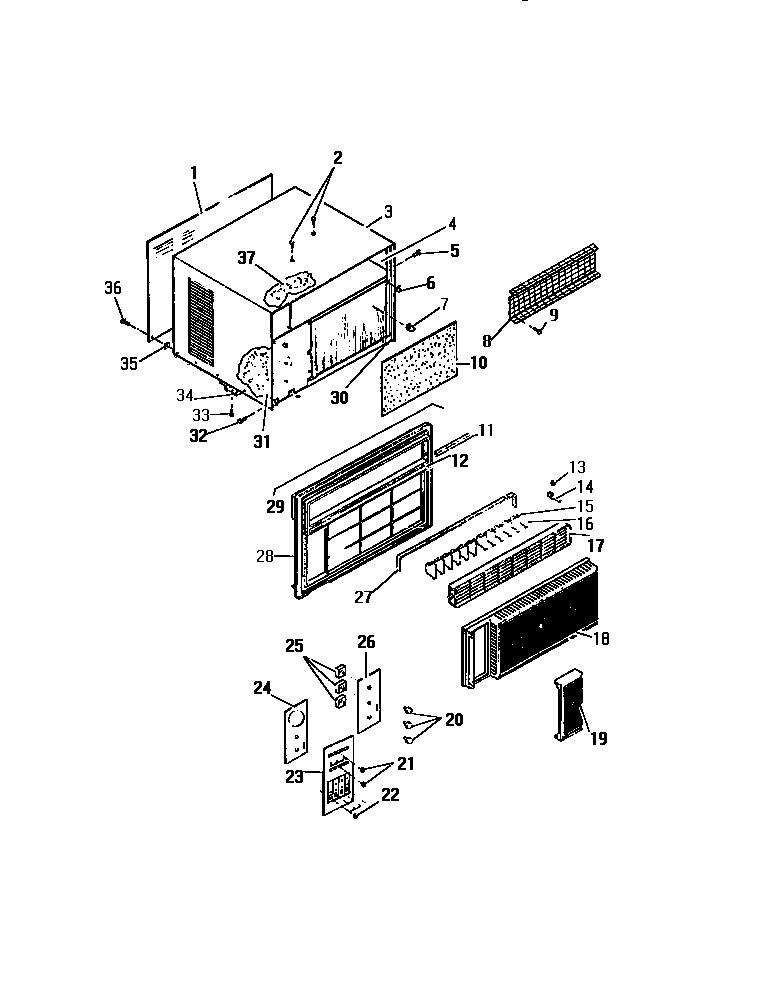

A11MEUTSD2 15 – CABINET FRONT (`CC` CABINET MODELS)

Products

PositionProduct
1PANEL-REAR
2SCREW
3SHELL
4INSULATION-SHELL, R. SIDE
5SCREW-FRONT LOCKING
6WCI 8010928
7CLIP-CAP. TUBE
10WCI 8009020
11WCI 8014101
12WCI 8016349
13PAD (2)
14HANDLE (2)
15WCI 8013697
16LOUVER (12)
17LOUVER & GRILL ASSEMBLY
18WCI 8013733
19WCI 8016326
20WCI 8016109
24WCI 8016152
25WCI 8006801
27SEAL-CABINET, FRONT
28WCI 8016325
29WCI 8016328
30CLIP-FRONT TO BASE
33SCREW (2)
34SUPPORT
35NUT
36SCREW
37WCI 8007542
