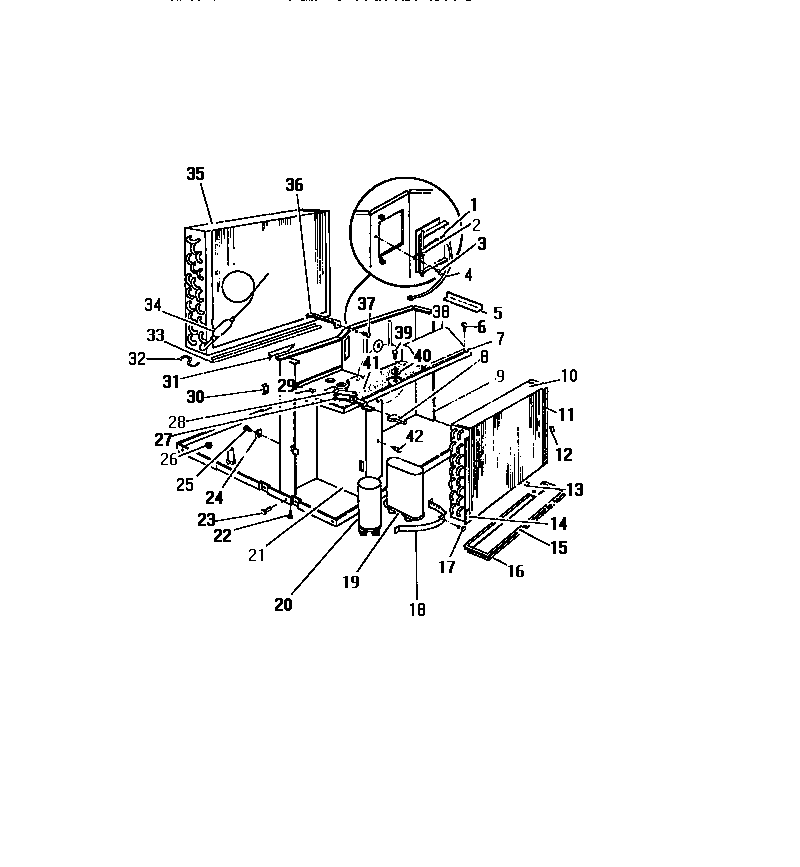

A11MEUTSD2 17 – EVAPORATOR, CONDENSER (`CC` CABINET

Products

Position	Product
*23134	WCI 8007517
1	WCI 8006929
2	WCI 8003049
4	CABLE, VENT DOOR, 12.22 LENGTH
5	WCI 8013760
7	PARTITION-HORIZONTAL
8	WCI 8007538
9	WCI 8007688
10	WCI 8016142
11	SEAL, EVAPORATOR BRACKET, WRAPPER
13	WCI 8006791
14	SEAL, EVAPORATOR BRACKET, CONTACT TUBE
15	TRAY
16	INSULATION
17	SCREW
18	WCI 8006798
19	WCI 8009154
20	CAPACITOR-RUN
21	DIVIDER-VERTICAL
22	SCREWS
23	WCI 8007567
24	WCI 8009025
26	GROMMET, BASE DRAIN
27	WCI 8007539
28	WCI 8009028
30	CLIP-CONDENSER
31	INSULATION-REAR
32	SNUBBER
33	WCI 8007559
34	DRIER
35	WCI 8016141
36	SUPPORT
37	SCREW, GROUND TO CONTROL PANEL
38	WCI 8016084
39	WCI 8016223
40	WCI 8007557
41	WCI 8016083
42	SCREW (4)
