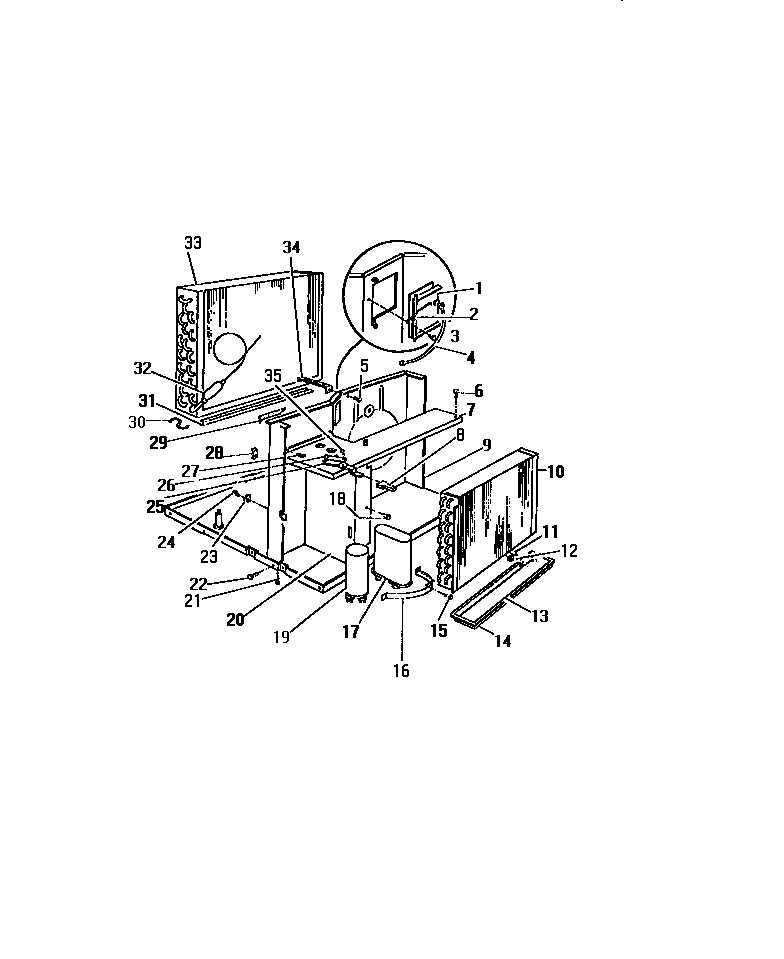

A13MUC2 10 – EVAPORATOR, CONDENSER (`CC` CABINET

Products

PositionProduct
1WCI 8003023
2WCI 8003049
4CABLE-VENT DOOR
4CABLE, VENT DOOR, 12.22 LENGTH
5WCI 8002951
7PARTITION-HORIZONTAL
8WCI 8007538
9WCI 8007688
10WCI 8013717
10WCI 8013723
11WCI 8006791
12GROMMET, BASE DRAIN
13TRAY
14WCI 8007537
15SCREW
16CLAMP-CAPACITOR
16WCI 8006798
17WCI 8009152
19CAPACITOR-RUN
19CAPACITOR
20DIVIDER-VERTICAL
21SCREWS
22WCI 8007567
23WCI 8009025
25WCI 8007539
26WCI 8009028
28CLIP-CONDENSER
29INSULATION-REAR
30SNUBBER
31WCI 8007559
32DRIER
33WCI 8013022
33WCI 8009126
34SUPPORT
35SCREW (4)
