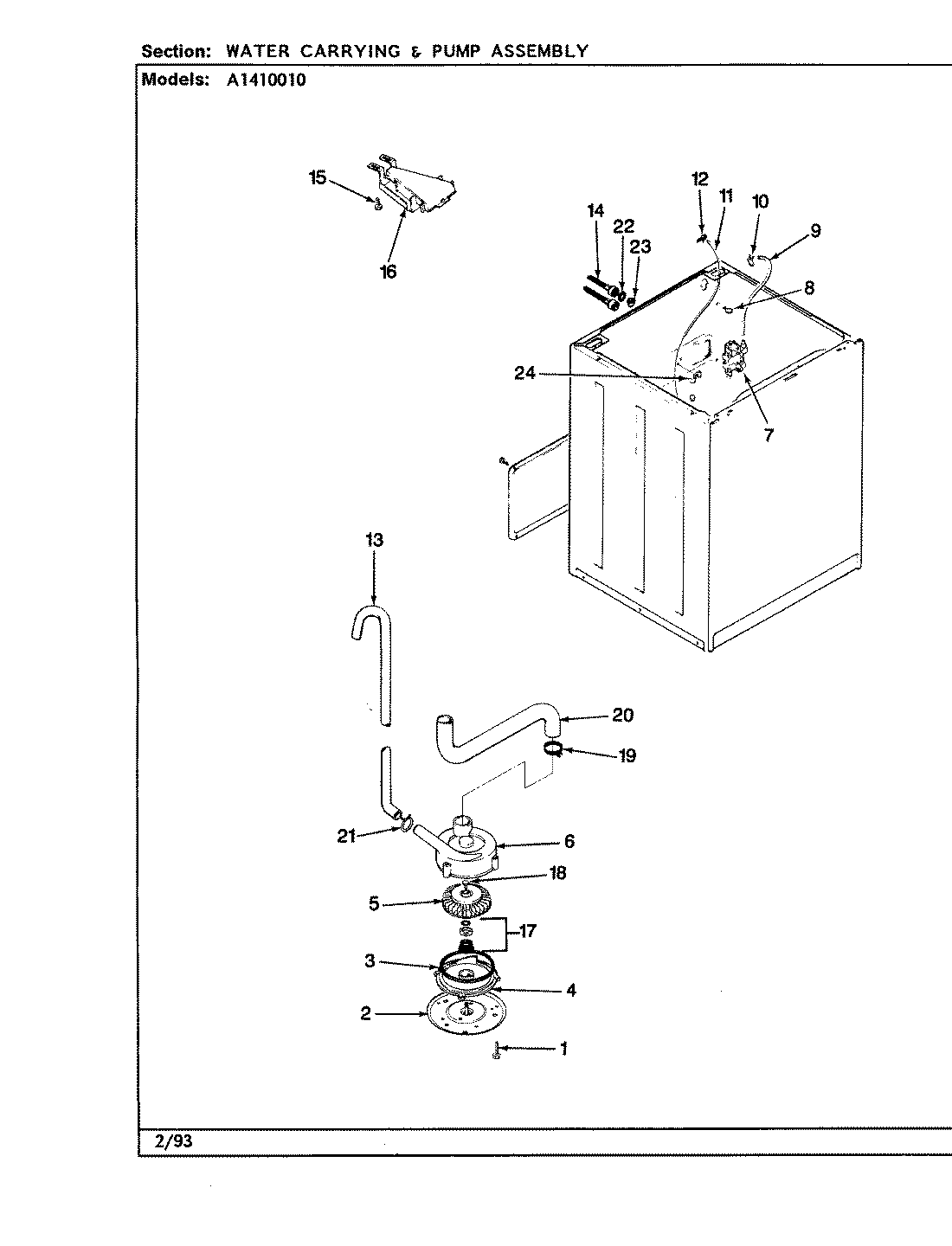

A1410010 06 – WATER CARRYING (REV. F)

A1410010 06 – WATER CARRYING (REV. F)

Written by

in

A1410010 06 – WATER CARRYING (REV. F)

Products

PositionProduct
1MAY 25-7405
2MAY 33-6035
3MAY 33-6032
4MAY 35-2058
5WP35-6465 Whirlpool Drain Pump
6MAY 35-2056
6MAY 35-2099
7WP25-7220 Whirlpool Cabinet Clip
7MAY 35-2375
11MAY 35-2261
11MAY 35-2322
12MAY 33-6099
13MAY 35-2896
14MAY 35-0873
1412002749 Whirlpool Flume Hose Kit
15WP90767 Whirlpool Screw
16MAY 35-2051
17MAY 35-0707
18MAY 25-7894
19MAY 25-6069
20MAY 35-2982
21WP285655 Whirlpool Hose Clamp
22MAY 25-7048
23MAY 33-7313
24WP596669 Whirlpool Hose Clamp
