A1538EC2 08 – CABINET FRONT (`CC` CABINET MODELS) – Aparts

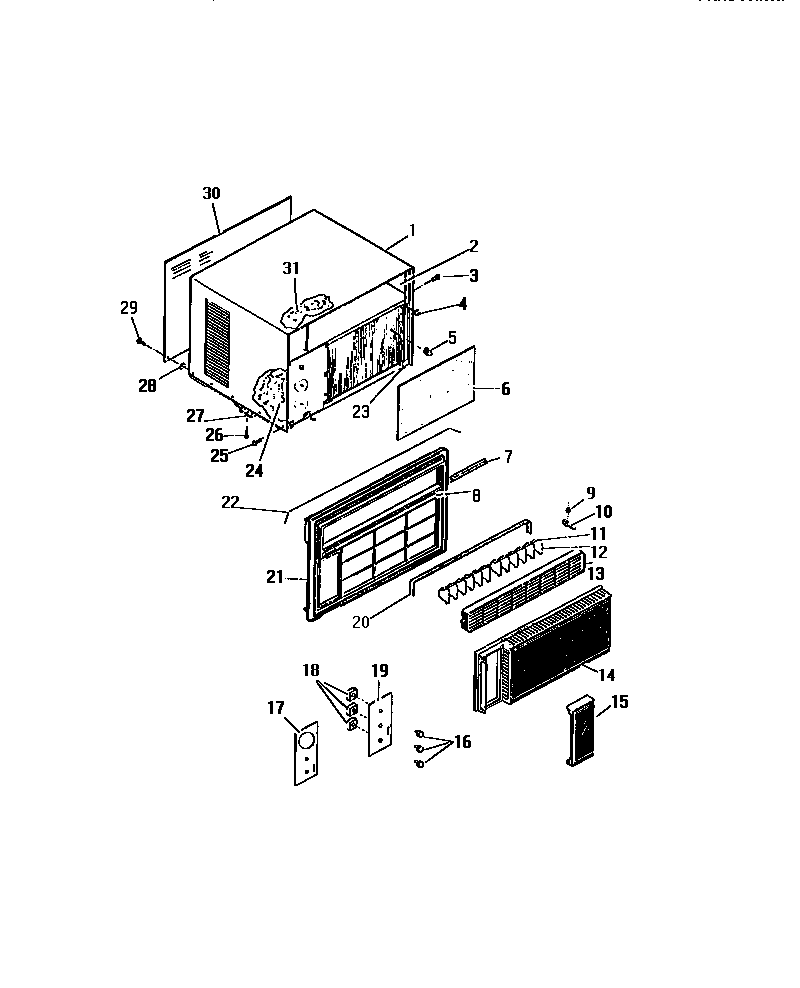

A1538EC2 08 – CABINET FRONT (`CC` CABINET MODELS)

Products

Position	Product
1	SHELL
2	INSULATION-SHELL, R. SIDE
3	SCREW-FRONT LOCKING
4	WCI 8010928
5	CLIP-CAP. TUBE
6	WCI 8009020
7	WCI 8014101
8	WCI 8013750
8	WCI 8013749
9	PAD (2)
10	HANDLE (2)
11	WCI 8013697
12	LOUVER (12)
13	WCI 8011041
14	WCI 8013733
15	HOUSING, ALMOND
16	WCI 8006835
17	WCI 8013737
18	SPACER
19	WCI 8013705
19	WCI 8009094
20	SEAL-CABINET, FRONT
21	WCI 8013731
22	WCI 8013739
22	WCI 8013740
23	CLIP-FRONT TO BASE
24	INSULATION-SHELL, L. SIDE
26	WCI 8013148
27	SUPPORT
28	NUT
29	SCREW
30	PANEL-REAR
31	WCI 8013177
