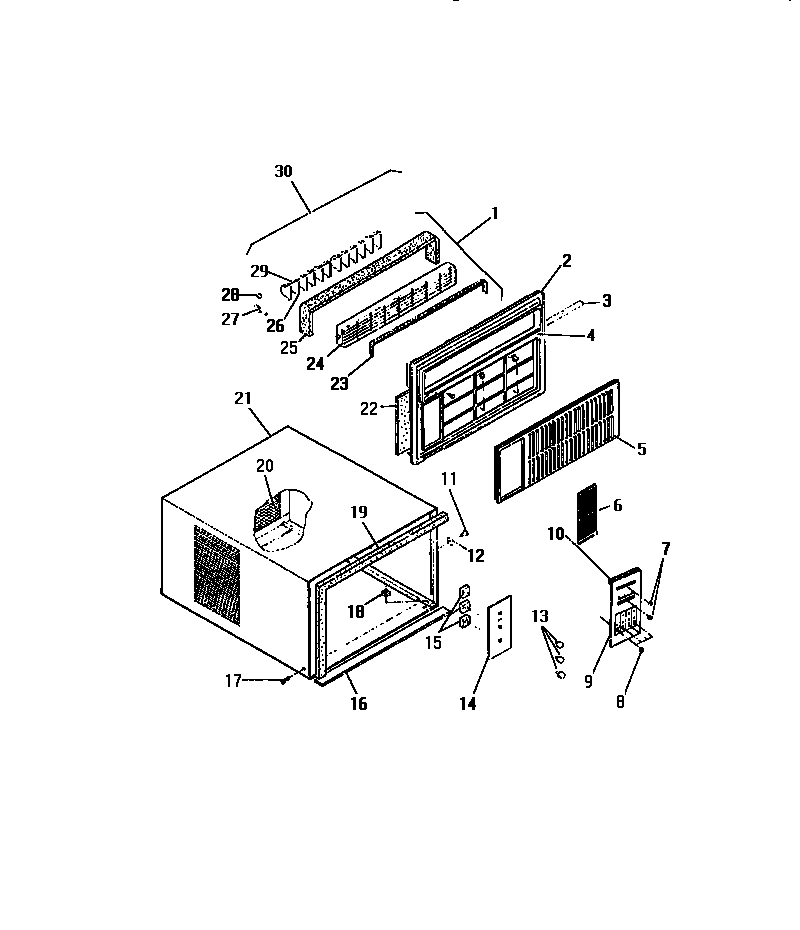

A1538UD2 22 – CABINET FRONT (`DD` CABINET MODELS)

A1538UD2 22 – CABINET FRONT (`DD` CABINET MODELS)

Written by

in

A1538UD2 22 – CABINET FRONT (`DD` CABINET MODELS)

Products

PositionProduct
1WCI 8016155
2WCI 8016187
3WCI 8007602
4WCI 8016175
5WCI 8016189
6DOOR
7KNOB-SLIDE CONTROL
8WCI 8016116
9WCI 8016214
10SEAL-ESCUTCHEON
11SCREW-FRONT LOCKING
12WCI 8010928
15SEAL-SPACER (NON-ILLUSTRATED)
16WCI 8007643
17SCREW
18WCI 8007576
19WCI 8007835
20WCI 8006808
21WCI 8016144
22WCI 8007210
23WCI 8007615
24WCI 8013730
25WCI 8007616
26WCI 8013694
27HANDLE (2)
28PAD (2)
29WCI 8013696
30WCI 8016209
