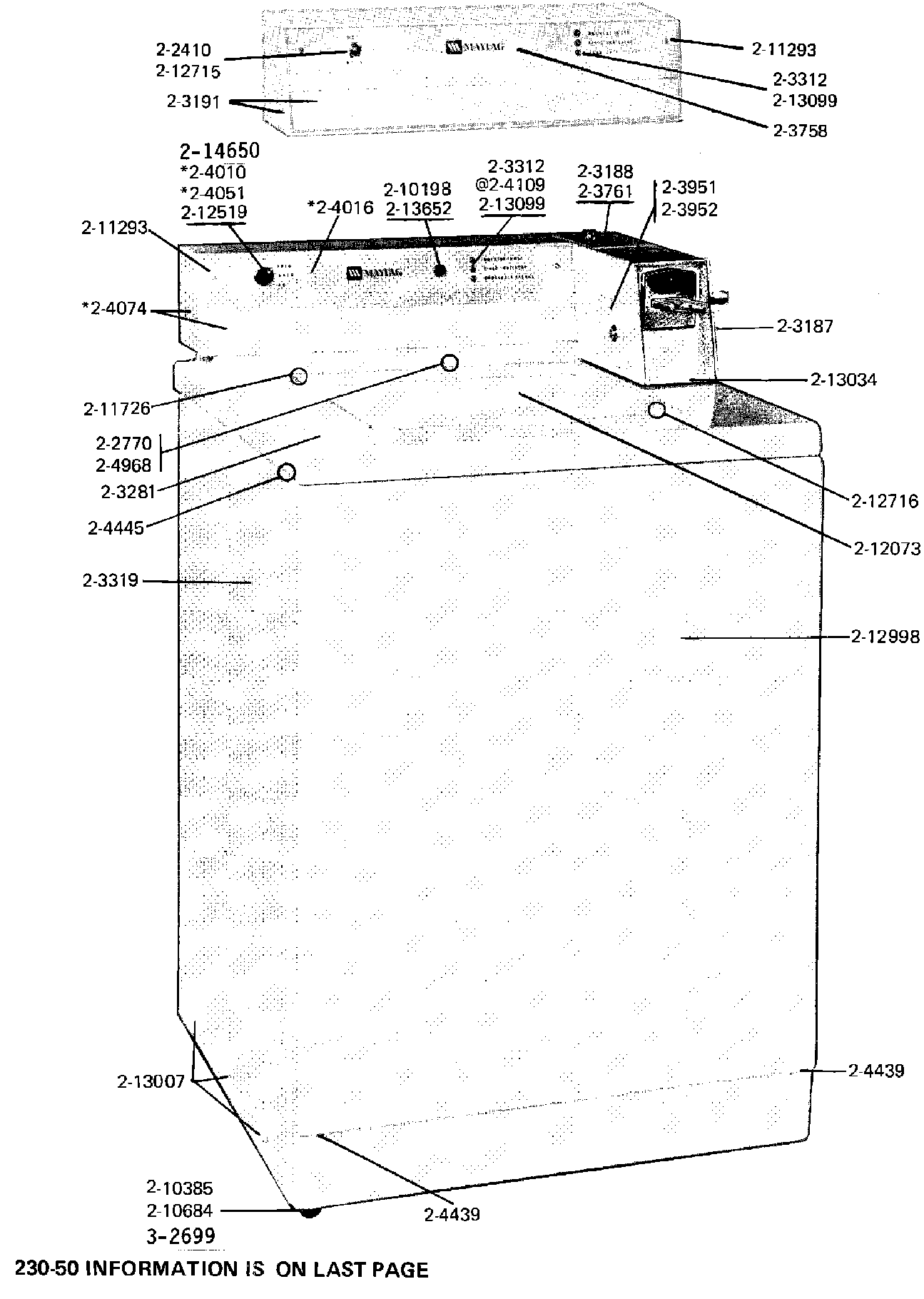

A15CA 01 – FRONT VIEW

Products

Position	Product
003	MAY 203188
011	MAY 203761
015	MAY 204010
017	MAY 204051
019	MAY 204109
023	SCREW & FSTNER ASSY (FT. PNL)
024	MAY 204445
025	PLUNGER & BRACKET ASSEMBLY–W
026	W10820036 Whirlpool Door Switch Kit
027	MAY 210198
028	WP210385 Whirlpool Lock Nut
029	WP210684 Whirlpool Dishwasher Leveling Leg Pad
031	WP211726 Whirlpool Ball Assembly
032	MAY 212073
033	MAY 212519
035	WP212716 Whirlpool Lid Bumper
036	MAY 212982
037	MAY 212998
038	213007 Whirlpool Screw #12
040	MAY 213099
041	WP27001200 Whirlpool Screw
043	SCREW FOR 2-4051 KNOB
044	LEG, ADJUSTABLE (W/NUT)—S
045	DOWEL PIN FOR HANDLE
