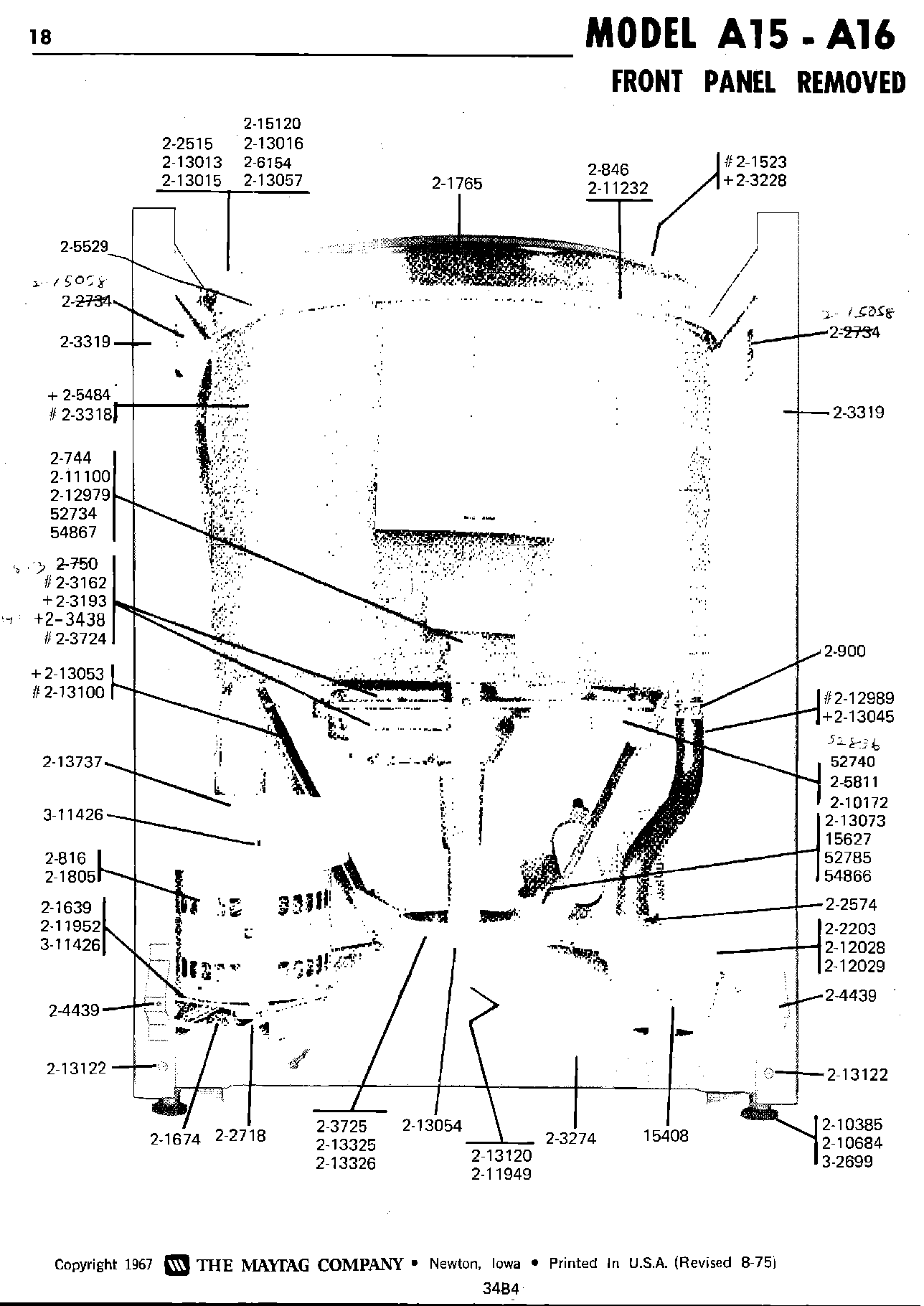

A15CA 06 – FRONT PANEL REMOVED

Products

Position	Product
001	MAY Y015408
003	MAY Y052734
004	WP62739 Whirlpool Nut
005	MAY Y052785
007	MAY Y053241
008	MAY Y054866
009	MAY Y054867
010	MAY Y055978
011	HI-TEMP ADHESIVE
012	MAY 200461
013	W10175939 Whirlpool Bolt Assembly
015	MAY 200816
017	MAY 200900
019	WP596669 Whirlpool Hose Clamp
020	MAY 201639
021	MAY 201674
022	MAY 201765
023	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
024	MAY 202203
026	WP285655 Whirlpool Hose Clamp
028	202718 Whirlpool Tension Spring
029	MAY Y202734
032	MAY 203274
033	MAY 203318
035	PART NOT USED
036	MAY 203724
037	MAY 203725
038	SCREW & FSTNER ASSY (FT. PNL)
041	MAY 206154
043	WP210385 Whirlpool Lock Nut
044	WP210684 Whirlpool Dishwasher Leveling Leg Pad
045	MAY 211028
047	MAY 211100
048	WP211232 Whirlpool Seal
049	MAY 211704
050	WPY014874 Whirlpool Screw
051	WP211949 Whirlpool Nut
052	MAY Y211952
054	MAY 212979
055	WPY212989 Whirlpool Outer Hose
056	WP213013 Whirlpool Injector Hose
057	WP213015 Whirlpool Nozzle Injector Tube
058	WP216201 Whirlpool Rubber Injector Valve
059	MAY 213054
060	MAY 213057
061	MAY 213073
062	MAY 213088
063	MAY 213100
064	MAY 213120
065	WP27001200 Whirlpool Screw
066	WP213325 Whirlpool Clip
067	MAY 213326
068	DOWEL PIN FOR HANDLE
069	MAY 213737
070	MAY 215120
071	LEG, ADJUSTABLE (W/NUT)—S
072	MAY Y310632
073	WP3400029 Whirlpool Dishwasher Nut
