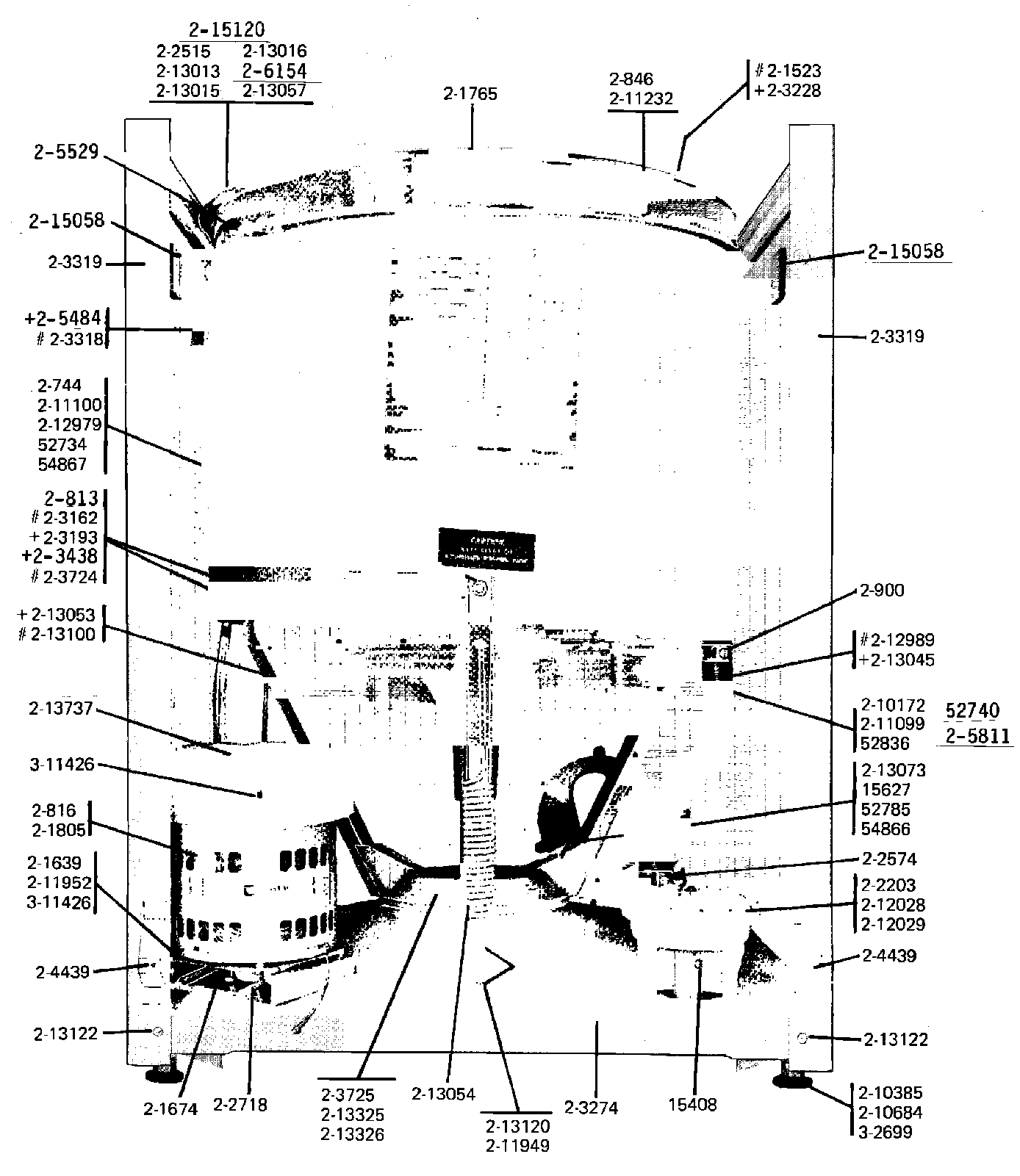

A16CA 12 – FRONT PANEL REMOVED

A16CA 12 – FRONT PANEL REMOVED

Written by

in

A16CA 12 – FRONT PANEL REMOVED

Products

PositionProduct
001MAY Y015408
003MAY Y052734
004WP62739 Whirlpool Nut
005MAY Y052785
007MAY Y053241
008MAY Y054866
009MAY Y054867
010MAY Y055978
011HI-TEMP ADHESIVE
012MAY 200461
013W10175939 Whirlpool Bolt Assembly
015MAY 200816
017MAY 200900
018WP596669 Whirlpool Hose Clamp
019MAY 201639
020MAY 201674
021MAY 201765
02212002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
023MAY 202203
025WP285655 Whirlpool Hose Clamp
027202718 Whirlpool Tension Spring
028MAY Y202734
030PART NOT USED
031MAY 203274
033PART NOT USED
034MAY 203725
035SCREW & FSTNER ASSY (FT. PNL)
036PART NOT USED
039MAY 206154
041WP210385 Whirlpool Lock Nut
042WP210684 Whirlpool Dishwasher Leveling Leg Pad
043MAY 211028
045MAY 211100
046WP211232 Whirlpool Seal
047MAY 211704
048WPY014874 Whirlpool Screw
049WP211949 Whirlpool Nut
050MAY Y211952
052MAY 212979
053WP213013 Whirlpool Injector Hose
054WP213015 Whirlpool Nozzle Injector Tube
055WP216201 Whirlpool Rubber Injector Valve
056WP213045 Whirlpool Dishwasher Tub to Pump Hose
057PART NOT USED
058MAY 213054
059MAY 213057
060MAY 213073
061MAY 213088
062MAY 213120
063WP27001200 Whirlpool Screw
064WP213325 Whirlpool Clip
065MAY 213326
066DOWEL PIN FOR HANDLE
067MAY 213737
068MAY 215120
069LEG, ADJUSTABLE (W/NUT)—S
070MAY Y310632
071WP3400029 Whirlpool Dishwasher Nut
