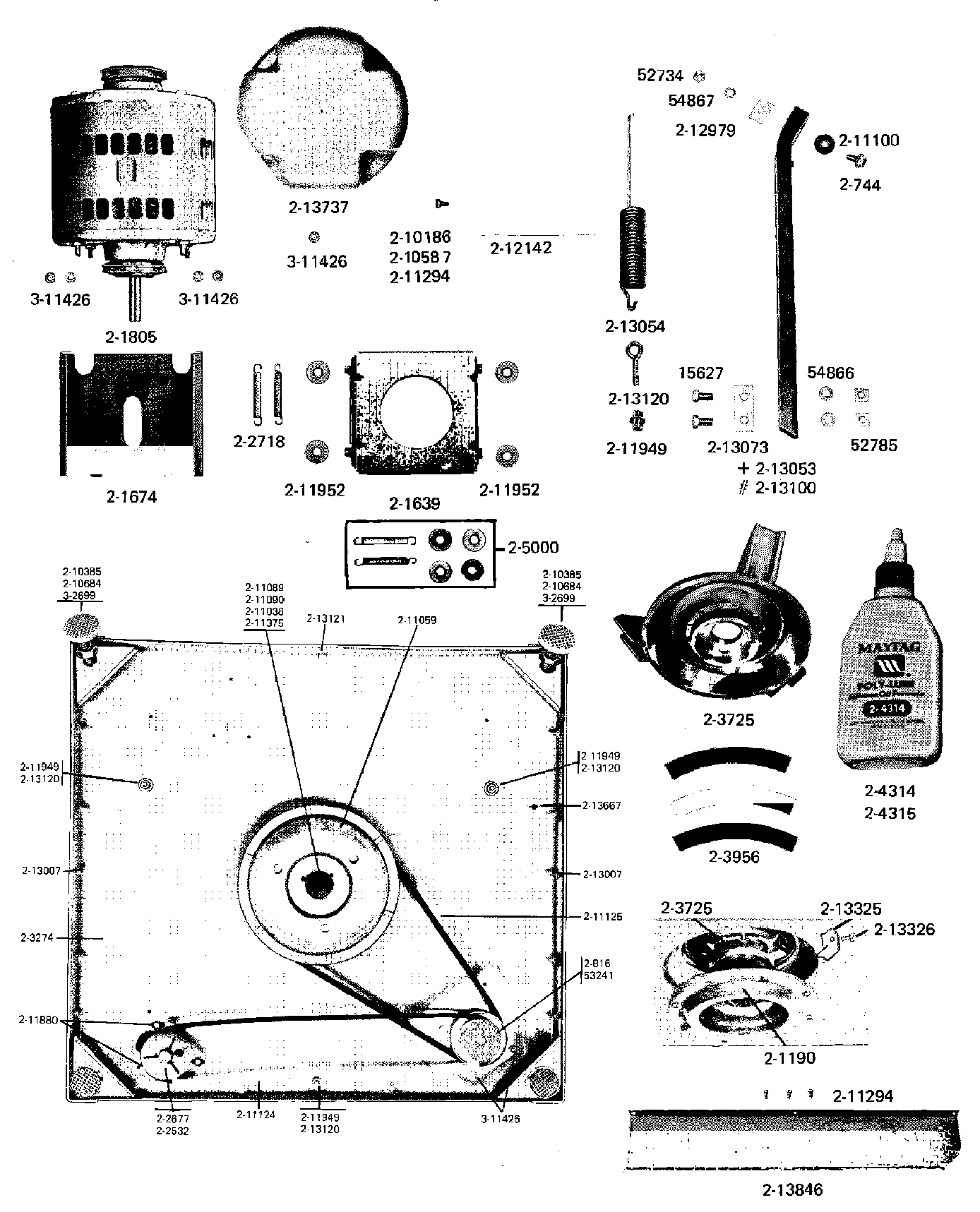

A16CM 06 – MOTOR MOUNT, BASE FRAME & CENTERING SPRS

Products

Position	Product
002	MAY Y052734
003	MAY Y052785
004	MAY Y053241
005	MAY Y054866
006	MAY Y054867
007	MAY Y055978
008	HI-TEMP ADHESIVE
009	MAY Y056016
010	W10175939 Whirlpool Bolt Assembly
011	MAY 200816
012	MAY 201190
013	MAY 201639
014	MAY 201674
015	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
016	MAY 202203
018	202718 Whirlpool Tension Spring
019	MAY 203274
020	MAY 203725
021	203956 Whirlpool Damper Pads 3 Pack with Poly
022	MAY 204314
023	MAY 204590
024	WP99003172 Whirlpool Silicone L
025	205000 Whirlpool Motor Spring and Guide Kit
026	MAY 210186
027	WP210385 Whirlpool Lock Nut
029	WP210684 Whirlpool Dishwasher Leveling Leg Pad
030	WP8281227 Whirlpool Screw
032	MAY 211043
033	MAY 211045
034	MAY 211059
035	WP211089 Whirlpool Lug Stop
036	WP22003555 Whirlpool Washer ST
037	MAY 211100
038	12112425 Whirlpool Washer Pump and Drive Belt Set
040	WP90767 Whirlpool Screw
041	WP912618 Whirlpool Dishwasher Screw
042	WPY014874 Whirlpool Screw
043	WP211949 Whirlpool Nut
044	MAY Y211952
045	MAY 212979
046	213007 Whirlpool Screw #12
047	PART NOT USED
048	MAY 213054
049	MAY 213073
050	MAY 213120
051	WPW10346892 Whirlpool Screw
052	WP213325 Whirlpool Clip
053	MAY 213326
055	DOWEL PIN FOR HANDLE
056	MAY 213737
057	MAY 213846
058	LEG, ADJUSTABLE (W/NUT)---S
059	WP3400029 Whirlpool Dishwasher Nut
060	MAY Y311916
