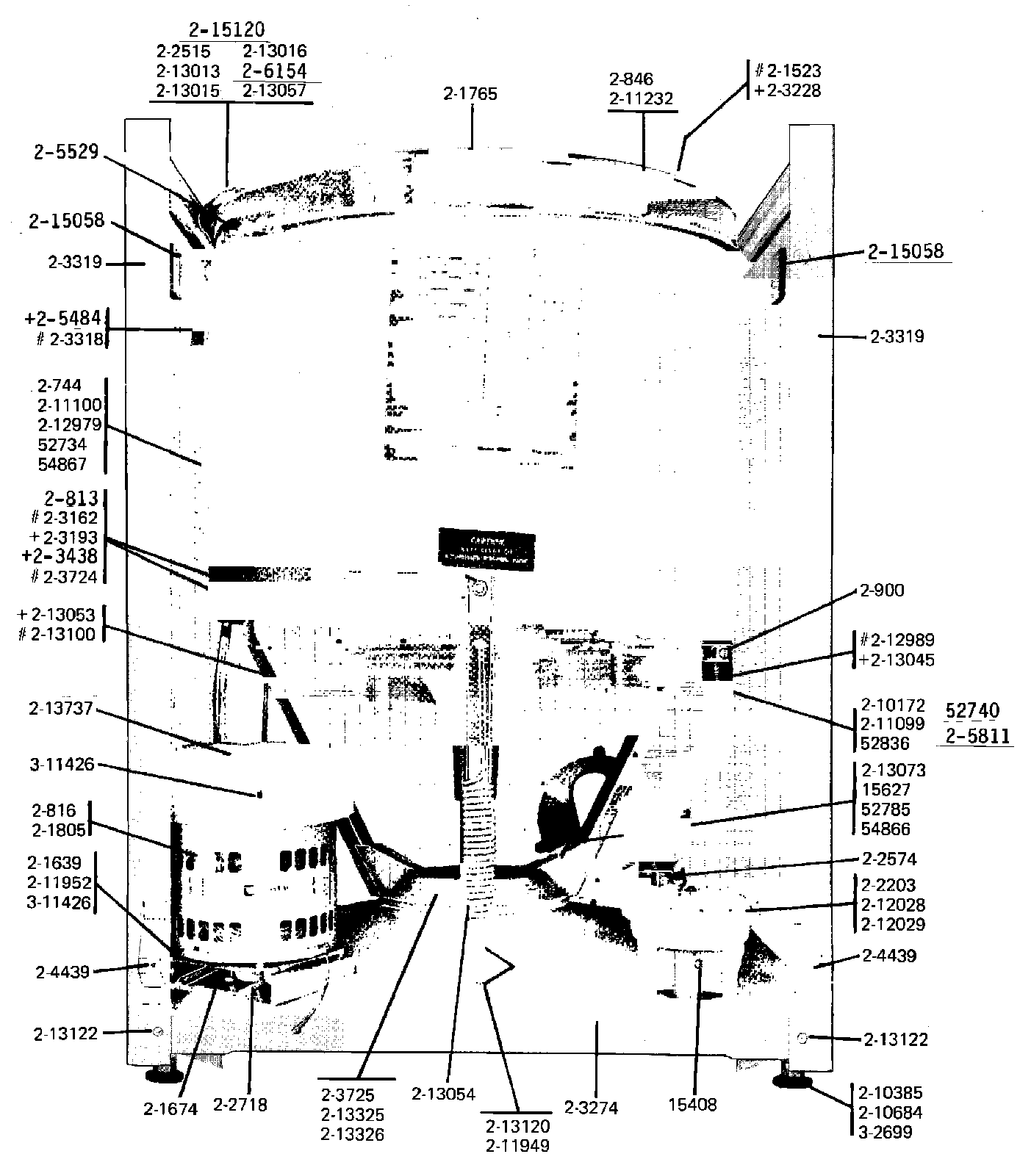

A16CT 13 – FRONT PANEL REMOVED

Products

Position	Product
001	MAY Y015408
003	MAY Y052734
004	WP62739 Whirlpool Nut
005	MAY Y052785
007	MAY Y053241
008	MAY Y054866
009	MAY Y054867
010	MAY Y055978
011	HI-TEMP ADHESIVE
012	MAY 200461
013	W10175939 Whirlpool Bolt Assembly
015	MAY 200816
017	MAY 200900
018	WP596669 Whirlpool Hose Clamp
019	MAY 201639
020	MAY 201674
021	MAY 201765
022	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
023	MAY 202203
025	WP285655 Whirlpool Hose Clamp
027	202718 Whirlpool Tension Spring
028	MAY Y202734
030	PART NOT USED
031	MAY 203274
033	PART NOT USED
034	MAY 203725
035	SCREW & FSTNER ASSY (FT. PNL)
036	PART NOT USED
039	MAY 206154
041	WP210385 Whirlpool Lock Nut
042	WP210684 Whirlpool Dishwasher Leveling Leg Pad
043	MAY 211028
045	MAY 211100
046	WP211232 Whirlpool Seal
047	MAY 211704
048	WPY014874 Whirlpool Screw
049	WP211949 Whirlpool Nut
050	MAY Y211952
052	MAY 212979
053	WP213013 Whirlpool Injector Hose
054	WP213015 Whirlpool Nozzle Injector Tube
055	WP216201 Whirlpool Rubber Injector Valve
056	WP213045 Whirlpool Dishwasher Tub to Pump Hose
057	PART NOT USED
058	MAY 213054
059	MAY 213057
060	MAY 213073
061	MAY 213088
062	MAY 213120
063	WP27001200 Whirlpool Screw
064	WP213325 Whirlpool Clip
065	MAY 213326
066	DOWEL PIN FOR HANDLE
067	MAY 213737
068	MAY 215120
069	LEG, ADJUSTABLE (W/NUT)---S
070	MAY Y310632
071	WP3400029 Whirlpool Dishwasher Nut
