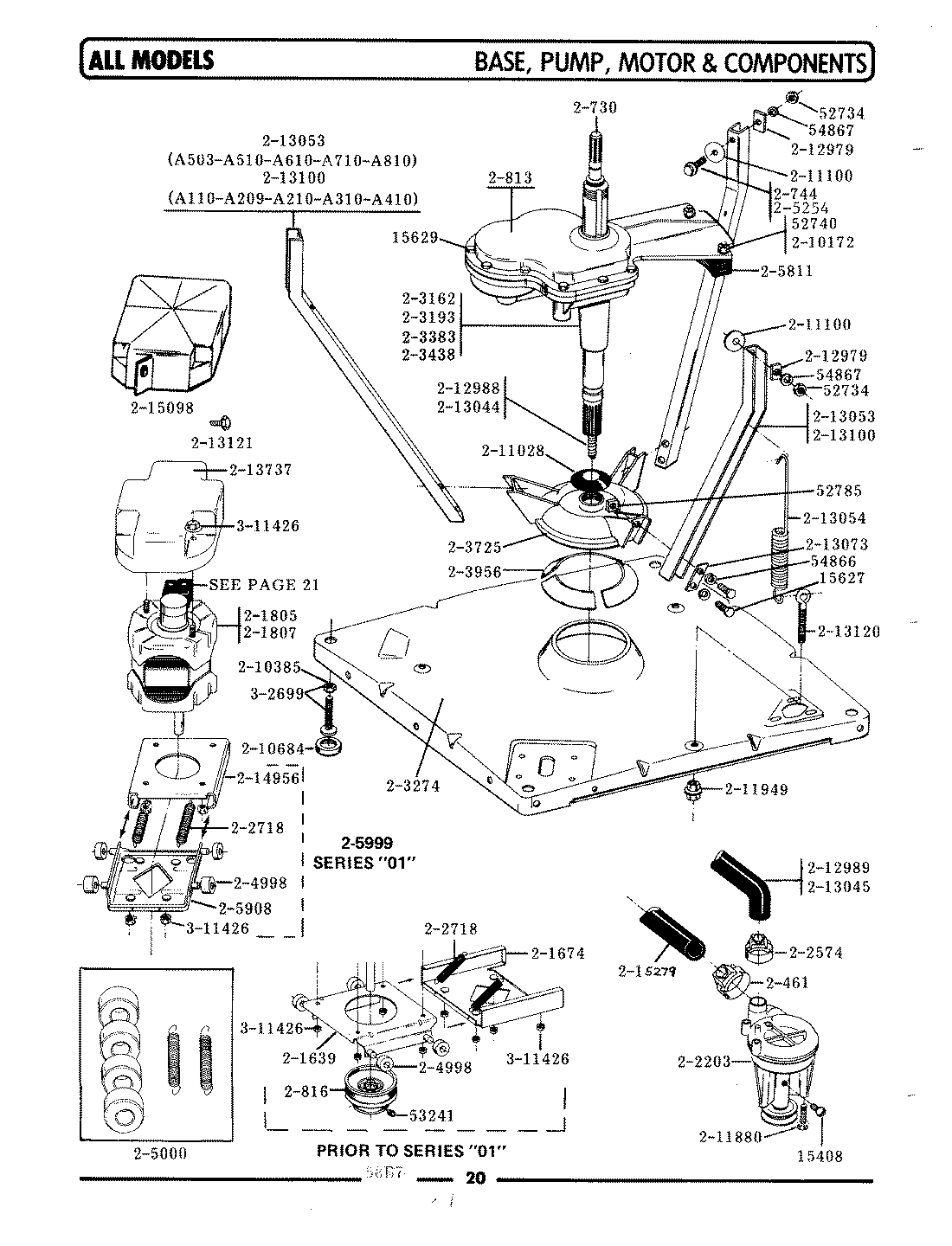

A180 02 – BASE, PUMP, MOTOR & COMPONENTS

Products

Position	Product
NI	MAY 205131
NI	MAY 200750
NI	MAY 204807
NI	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
NI	2-1664-8 AND 2-5463
NI	MAY 205134
NI	MAY 204437
1	MAY Y015408
3	MAY Y015629
4	MAY Y052734
5	WP62739 Whirlpool Nut
6	MAY Y052785
7	MAY Y053241
8	MAY Y054866
9	MAY Y054867
10	MAY 200461
11	MAY 200730
12	W10175939 Whirlpool Bolt Assembly
14	MAY 200813
15	MAY 200816
16	MAY 201639
17	MAY 201674
18	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
20	MAY 202203
21	WP285655 Whirlpool Hose Clamp
22	202718 Whirlpool Tension Spring
23	MAY 203162
25	MAY 203274
27	MAY 203725
28	203956 Whirlpool Damper Pads 3 Pack with Poly
31	205000 Whirlpool Motor Spring and Guide Kit
37	MAY 205811
38	MAY 205908
39	MAY 205999
40	MAY 210172
41	WP210385 Whirlpool Lock Nut
42	WP210684 Whirlpool Dishwasher Leveling Leg Pad
43	MAY 211028
44	MAY 211100
45	WPY014874 Whirlpool Screw
46	WP211949 Whirlpool Nut
47	MAY 212979
48	MAY 212988
49	WPY212989 Whirlpool Outer Hose
50	PART NOT USED
53	MAY 213054
54	MAY 213073
55	MAY 213100
56	MAY 213120
57	WPW10346892 Whirlpool Screw
58	MAY 213737
59	WP22003410 Whirlpool Drain Hose
60	MAY 214956
61	MAY 215098
62	LEG, ADJUSTABLE (W/NUT)---S
63	WP3400029 Whirlpool Dishwasher Nut
