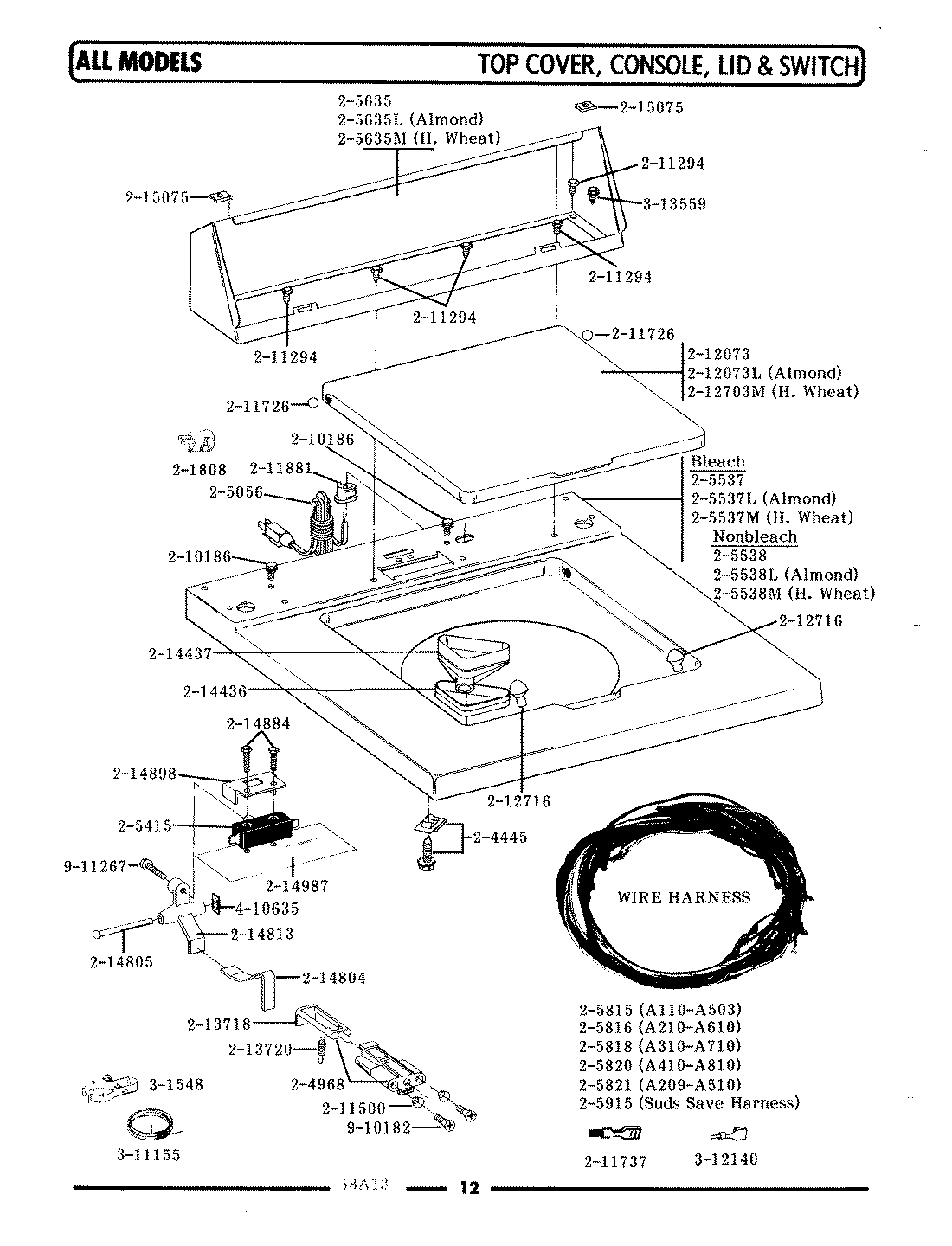

A182 05 – TOP COVER, CONSOLE & LID SWITCH

Products

Position	Product
NI	MAY 911267
NI	MAY 410635
NI	WP212716 Whirlpool Lid Bumper
NI	MAY 211737
NI	MAY 910182
1	MAY 205997
2	MAY Y201808
3	MAY 204445
4	PLUNGER & BRACKET ASSEMBLY–W
5	MAY 205056
6	W10820036 Whirlpool Door Switch Kit
7	MAY 205538
10	MAY 205635
13	MAY 205821
14	MAY 205915
15	MAY 210186
16	WP90767 Whirlpool Screw
17	MAY 211500
18	WP211726 Whirlpool Ball Assembly
20	GROMMET
21	MAY 212073
25	MAY 213718
26	WP213720 Whirlpool Spring Assembly
28	MAY 214804
29	MAY 214805
30	MAY 214813
31	MAY 214884
32	MAY 214898
33	MAY 214987
34	MAY 215075
35	MAY 301548
36	WP311155 Whirlpool Wire Assembly
37	MAY Y312140
38	MAY Y313559
