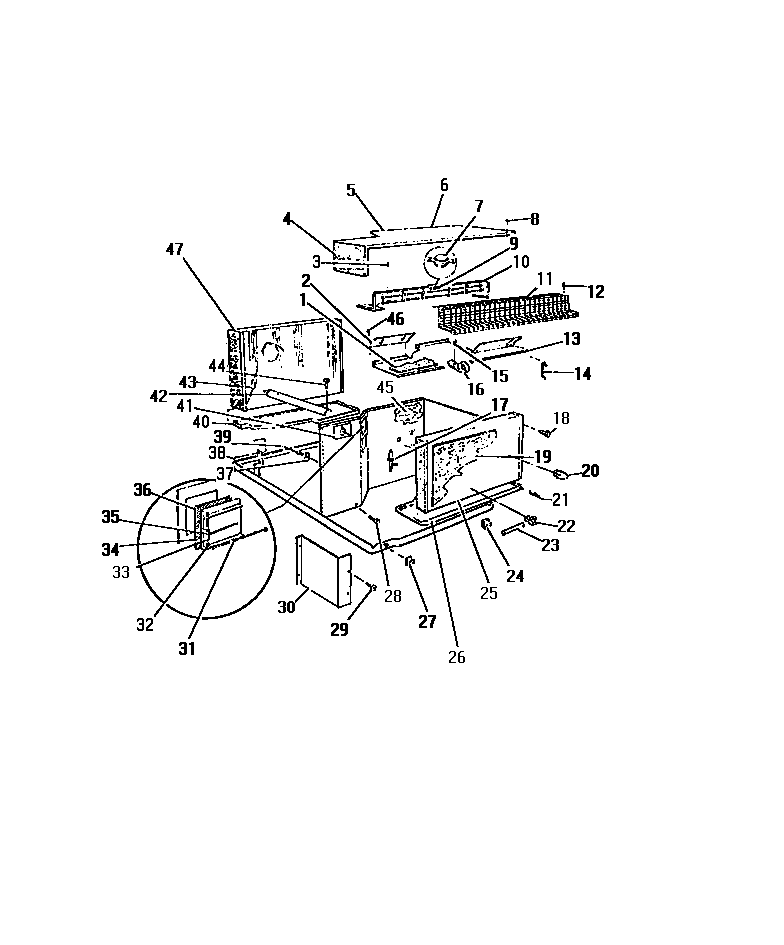

A1838C2 16 – EVAPORATOR, CONDENSER (`DD` CABINET

Products

Position	Product
1	WCI 8009349
2	WCI 8007191
4	WCI 8007652
5	WCI 8007189
6	WCI 8007650
12	SCREW-SCROLL
13	WCI 8013171
14	WCI 8007668
15	WCI 8007193
16	WCI 8006914
18	WCI 8009138
19	WCI 8007210
21	HOSE-EVAP DRAIN
22	CLIP-CAP. TUBE
23	INSULATOR-TUBE
24	CLIP-FRONT TO BASE
25	WCI 8013721
26	TRAY-EVAP
27	CLIP-FRT TO BASE LH
29	SCREW, PLATE, CABLE TO BULKHEAD
30	WCI 8007644
31	CABLE, VENT DOOR, 12.22 LENGTH
32	WCI 8006784
33	ROD-HINGE
34	WCI 8007636
35	WCI 8007192
36	WCI 8007141
37	WCI 8009025
38	WCI 8007637
39	SPRING-OVERLOAD
40	TRAY-COND.
41	WCI 8007606
42	WCI 8007199
43	DRIER
44	WCI 8009156
45	WCI 8009350
46	WCI 8002951
47	WCI 8013713
