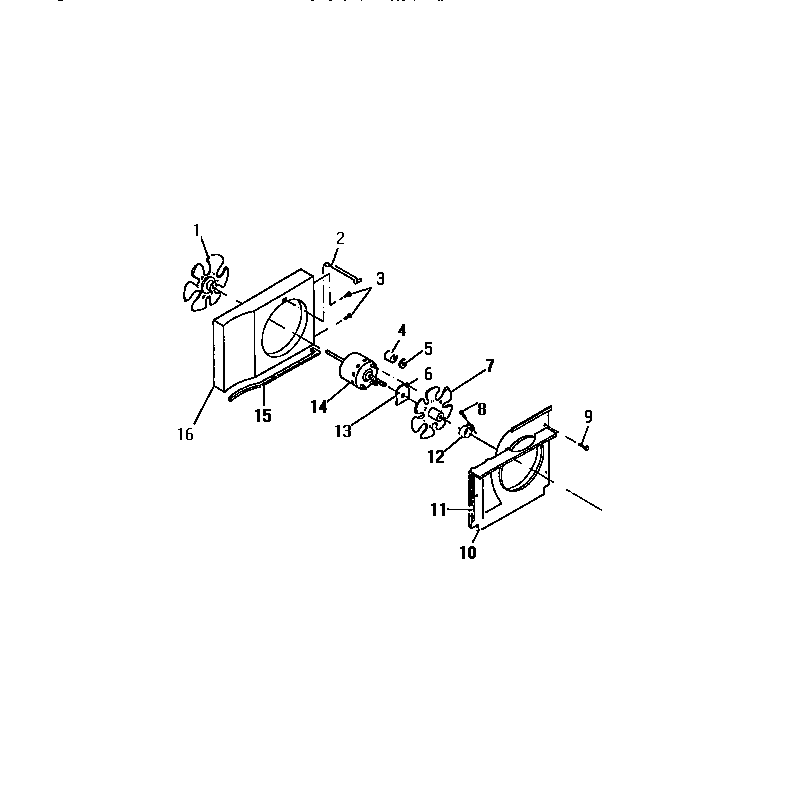

A1838D2 10 – SHROUD, SCROLL, BLOWER MOTOR (`AAA`

A1838D2 10 – SHROUD, SCROLL, BLOWER MOTOR (`AAA`

Written by

in

A1838D2 10 – SHROUD, SCROLL, BLOWER MOTOR (`AAA`

Products

PositionProduct
*23127SPACER, PLATE, SPLASH (2)
*23128WCI 8012678
*23129SCREW, FAN MOTOR MOUNTING (3)
1WCI 8010951
1FAN, CONDENSER (INCL. CLAMP)
1FAN, CONDENSER (INCL. CLAMP AND SCREW)
1FAN-CONDENSER (INCL. CLAMP)
2CLIP
2WCI 8007517
3SCREW, GROUND TO CONTROL PANEL
4WCI 8013766
4WCI 8006943
4GROMMET (3)
5WCI 8002976
6NUT (3)
7FAN, EVAPORATOR (INCL. CLAMP)
7FAN-EVAPORATOR (INCL. CLAMP)
8WCI 8013635
8SCREW
9SCREW (4)
10WCI 8013079
10SHROUD, EVAPORATOR
11SEAL
12CLAMP (EVAPORATOR & CONDENSER FAN-BLADE CLAMP)
12CLAMP
13WCI 8007483
14WCI 8016165
14WCI 8010875
14WCI 8013815
14WCI 8009144
14WCI 8015769
14WCI 8016134
14WCI 8016164
15SEAL
16SHROUD, CONDENSER
