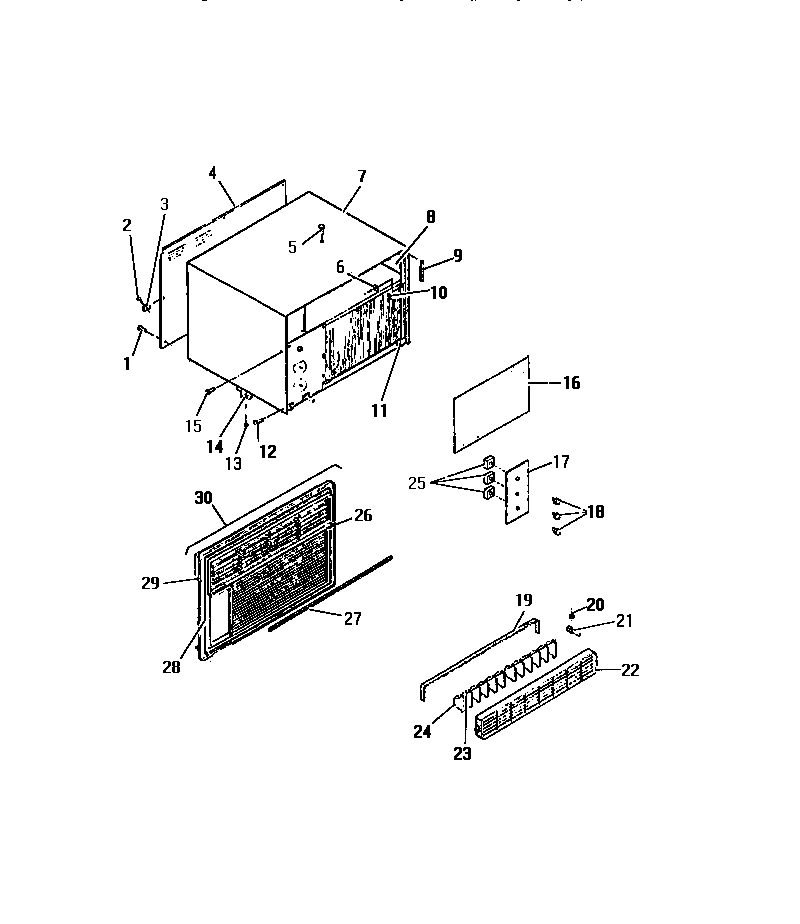

A1838D2 29 – CABINET, FRONT (`B` CABINET MODELS)

A1838D2 29 – CABINET, FRONT (`B` CABINET MODELS)

Written by

in

A1838D2 29 – CABINET, FRONT (`B` CABINET MODELS)

Products

Position	Product
3	NUT
4	PANEL-REAR
5	SCREW
6	WCI 8010928
7	WCI 8010936
7	WCI 8013178
8	INSULATION-SHELL, L. SIDE
8	WCI 8009355
8	INSULATION-SHELL, R. SIDE
8	WCI 8012995
8	WCI 8012996
9	WCI 8009359
9	WCI 8009358
9	SEAL-CABINET, FRONT
10	CLIP-CAP. TUBE
11	CLIP-FRONT TO BASE
12	SCREW
13	SCREW (2)
14	SUPPORT
15	SCREW-FRONT LOCKING
16	WCI 8009020
17	WCI 8016151
17	WCI 8006841
17	WCI 8009094
18	WCI 8016109
18	KNOB-CONTROL (3)
19	WCI 8007684
20	PAD (2)
21	HANDLE (2)
22	WCI 8007846
23	WCI 8013697
24	LOUVER (12)
25	SPACER-DIAL PLATE
25	SPACER
26	WCI 8009110
26	WCI 8013748
26	WCI 8016330
27	WCI 8014101
27	WCI 8007681
28	WCI 8016148
28	WCI 8016147
29	WCI 8007859
30	WCI 8016162
30	WCI 8016161
30	WCI 8016163
