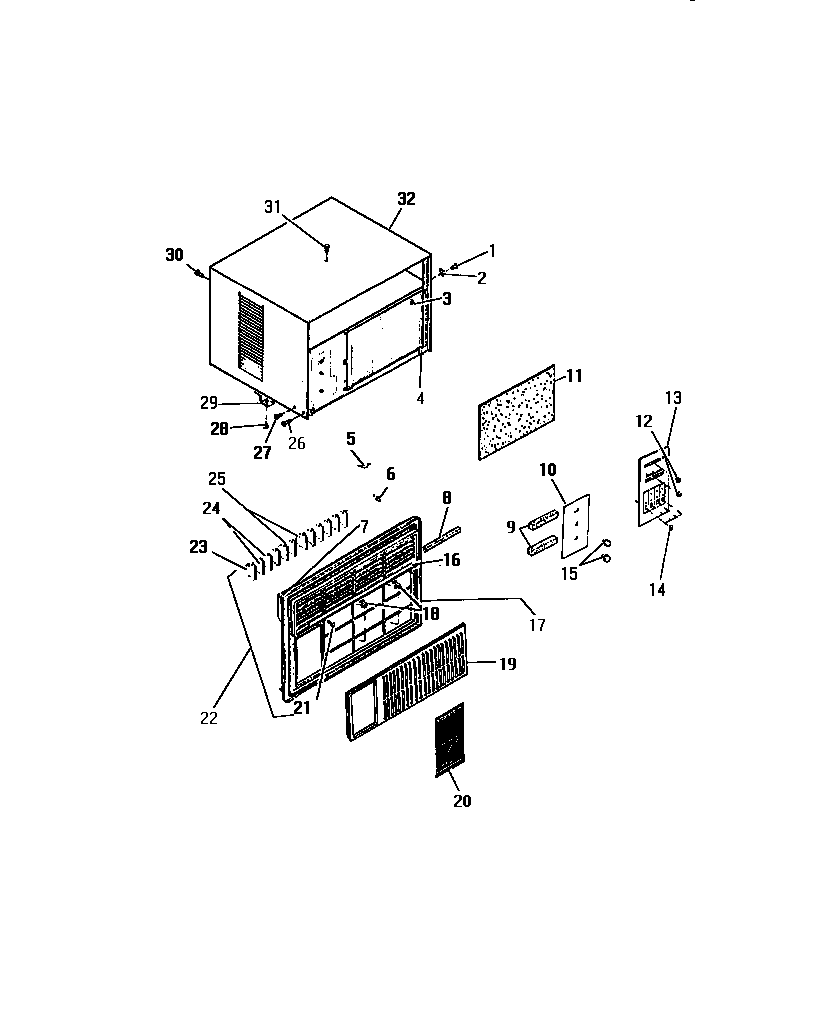

A1838ED2 08 – CABINET FRONT (`AAA` CABINET MODELS – Aparts

A1838ED2 08 – CABINET FRONT (`AAA` CABINET MODELS

Products

Position	Product
*23126	WCI 8007474
1	SCREW-FRONT LOCKING
2	NUT
3	CLIP-CAP. TUBE
4	CLIP (2)
5	WCI 8009030
6	HANDLE (2)
7	WCI 8007461
8	SEAL
9	SEAL-ESCUTCHEON
9	SEAL
10	PANEL, CONTROL
11	WCI 8009018
12	KNOB-SLIDE CONTROL
13	WCI 8016212
14	WCI 8016116
15	WCI 8016109
16	WCI 8016215
16	INSERT, MULLION
16	WCI 8013631
17	WCI 8016183
18	SPRING, CLIP RETAINING (4)
19	WCI 8016184
19	WCI 8016185
20	DOOR, CONTROL
20	DOOR, CONTROL
21	SCREW-FRONT
22	WCI 8016200
22	WCI 8016203
22	WCI 8016202
22	WCI 8016201
23	LOUVER (12)
24	WCI 8014228
25	LINK-LOUVER (2)
26	SCREW
27	SCREW (4)
28	SCREW (2)
29	SUPPORT
31	SCREW
31	SCREW (8)
31	SCREW
32	SHELL
32	WCI 8016099
