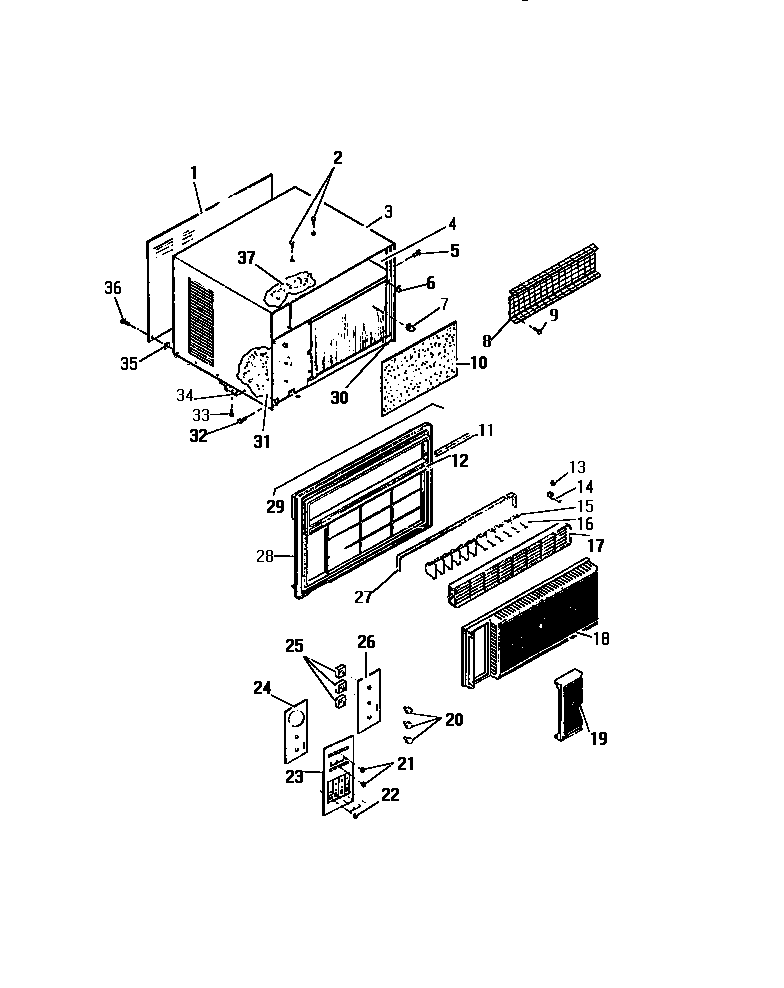

A1838ED2 15 – CABINET FRONT (`CC` CABINET MODELS)

Products

Position	Product
1	PANEL-REAR
2	SCREW
3	WCI 8013175
4	INSULATION-SHELL, R. SIDE
5	SCREW-FRONT LOCKING
6	WCI 8010928
7	WCI 8013095
8	SCREEN
9	SCREW (2)
10	WCI 8009019
11	WCI 8013174
12	WCI 8016399
13	PAD (2)
14	HANDLE (2)
15	WCI 8013697
16	LOUVER (12)
17	LOUVER & GRILL ASSEMBLY
20	WCI 8016109
25	SPACER
26	WCI 8016398
27	SEAL-CABINET, FRONT
28	FRAME
29	WCI 8016400
30	CLIP-FRONT TO BASE
33	SCREW (2)
34	SUPPORT
35	NUT
36	SCREW
37	WCI 8007542
