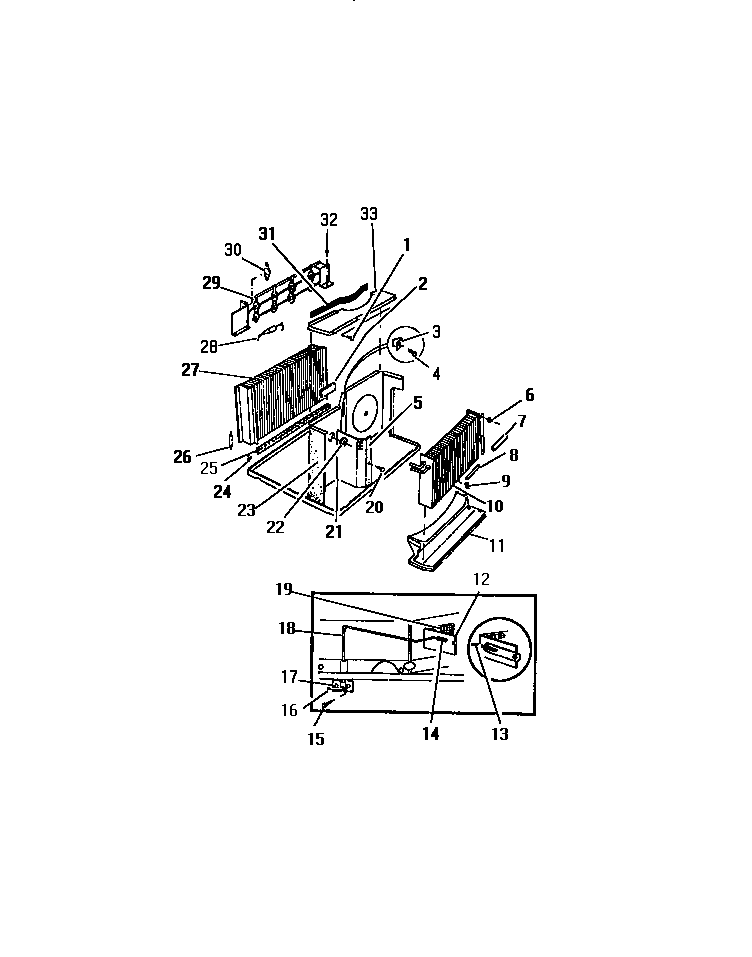

A1838UD2 11 – EVAPORATOR, CONDENSER (`AAA` CABINE

Products

Position	Product
2	WCI 8006453
3	WCI 8009025
5	INSULATION
6	SPACER (2)
7	INSULATOR-CAP TUBE
8	INSULATOR-TUBE
9	HOLDER-THERMSTOR (NON-ILLUSTRATED)
10	WCI 8013812
10	WCI 8013618
11	WCI 8006917
12	WCI 8016234
13	ACTUATOR, ARM
14	WCI 8007511
16	WCI 8007500
17	WCI 8007514
18	WCI 8007499
19	WCI 8014269
19	WCI 8007477
20	SCREW (4)
21	WCI 8014239
21	DIVIDER, VERTICAL
22	GROMMET
23	WCI 8010970
24	CLIP-CONDENSER
25	SEAL
26	DRIER
27	WCI 8013617
27	WCI 8016139
27	CONDENSER
27	WCI 8016231
27	WCI 8014234
27	WCI 8013811
27	WCI 8013810
28	WCI 8016407
29	WCI 8013087
30	WCI 8013142
31	SEAL
32	SCREW, GROUND TO CONTROL PANEL
33	PARTITION, HORIZONTAL
33	WCI 8013078
