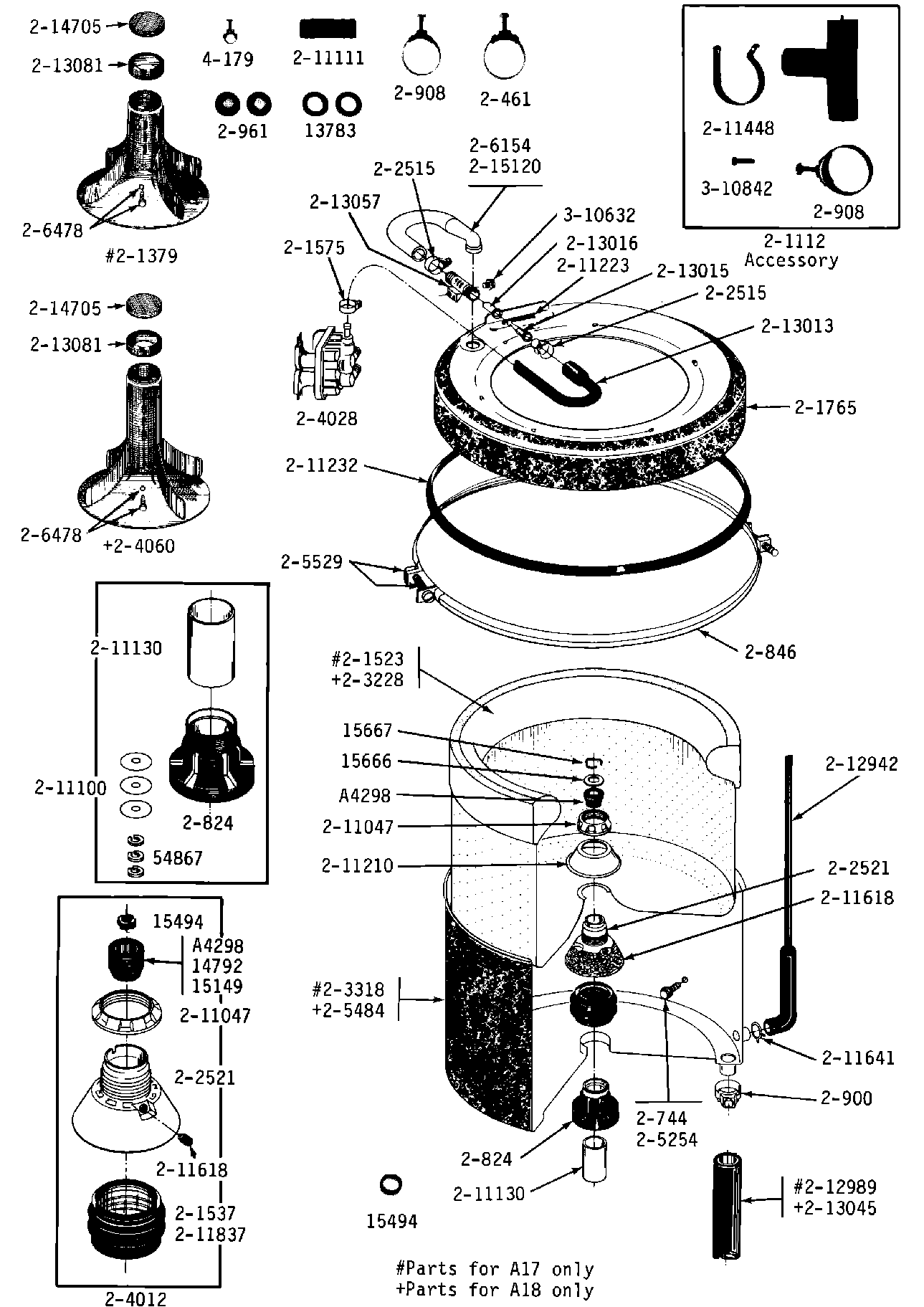

A18CT 06 – TUB, AGITATOR, MTG. STEM, HOSES & CLAMPS

A18CT 06 – TUB, AGITATOR, MTG. STEM, HOSES & CLAMPS

Written by

in

A18CT 06 – TUB, AGITATOR, MTG. STEM, HOSES & CLAMPS

Products

PositionProduct
002MAY Y013783
003MAY Y014792
004MAY Y015149
005MAY Y015494
006WPY015666 Whirlpool Washer Retainer
007MAY Y015667
008MAY Y054867
009MAY Y059137
010MAY Y059141
011MAY 200461
012WP76314 Whirlpool Fill Hose
013MAY 200675
014MAY 200681
015MAY 200682
016W10175939 Whirlpool Bolt Assembly
017MAY 200756
018MAY 200757
0196-2040130 Whirlpool Washer Tub Bearing Kit
021MAY 200900
022MAY 200908
023MAY 200961
02476660 Whirlpool Syphon Break with Clamps
025MAY 201486
026MAY 201487
027MAY 201537
028WP596669 Whirlpool Hose Clamp
029MAY 201765
032MAY 202521
033MAY 202861
034PART NOT USED
035MAY 204012
037MAY 204028
038PART NOT USED
039W10175938 Whirlpool Bolt
040PART NOT USED
042MAY 206154
043MAY 206478
044WP6-2110472 Whirlpool Nut Clamp
045MAY 211100
046WP16272 Whirlpool Hose Coupling
047MAY 211130
048MAY 211210
049MAY 211223
050WP211232 Whirlpool Seal
051MAY 211448
052MAY 211618
053WP285655 Whirlpool Hose Clamp
054MAY 211704
056MAY 212942
057WP213013 Whirlpool Injector Hose
058WP213015 Whirlpool Nozzle Injector Tube
059WP216201 Whirlpool Rubber Injector Valve
060WP213045 Whirlpool Dishwasher Tub to Pump Hose
062MAY 213057
063MAY 213081
064MAY 214705
065MAY 215120
066DOWEL PIN FOR HANDLE
067MAY Y310632
068MAY Y310842
069MAY 400179
