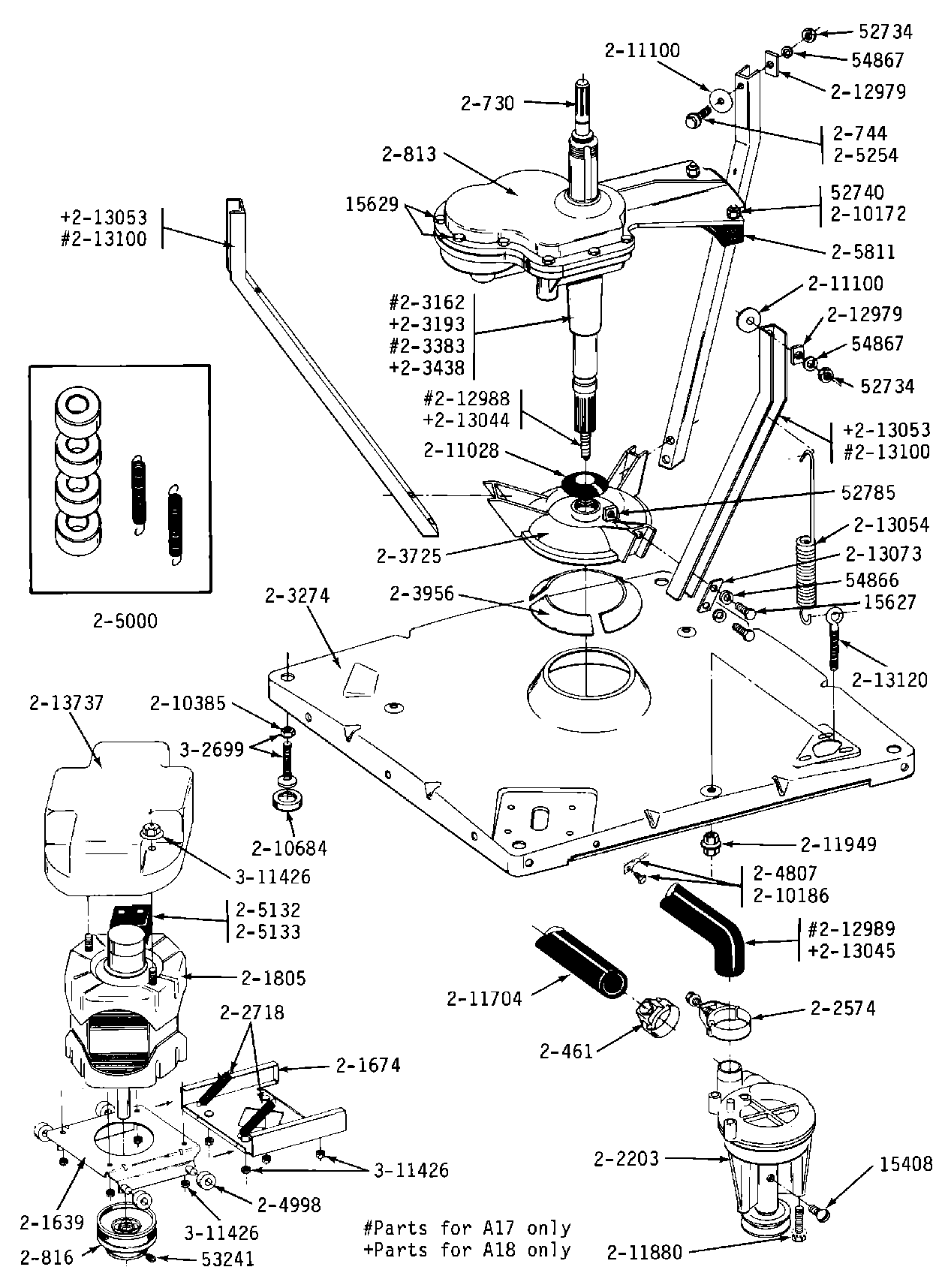

A18CT 08 – BASE, PUMP, MOTOR & COMPONENTS

Products

Position	Product
001	MAY Y015408
003	MAY Y015629
004	MAY Y052734
005	WP62739 Whirlpool Nut
006	MAY Y052785
007	MAY Y053241
008	MAY Y054866
009	MAY Y054867
010	MAY Y059141
011	MAY 200461
012	MAY 200730
013	W10175939 Whirlpool Bolt Assembly
015	MAY 200816
016	MAY 201639
017	MAY 201674
018	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
019	MAY 202203
020	WP285655 Whirlpool Hose Clamp
021	202718 Whirlpool Tension Spring
023	MAY 203274
024	PART NOT USED
025	MAY 203725
026	203956 Whirlpool Damper Pads 3 Pack with Poly
027	MAY 204807
028	MAY Y204998
029	205000 Whirlpool Motor Spring and Guide Kit
030	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
032	W10175938 Whirlpool Bolt
034	DOWEL PIN FOR HANDLE
035	MAY 210186
036	WP210385 Whirlpool Lock Nut
037	WP210684 Whirlpool Dishwasher Leveling Leg Pad
038	MAY 211028
039	MAY 211100
040	MAY 211704
041	WPY014874 Whirlpool Screw
042	WP211949 Whirlpool Nut
043	MAY 212979
044	PART NOT USED
045	WP213045 Whirlpool Dishwasher Tub to Pump Hose
046	PART NOT USED
047	MAY 213054
048	MAY 213073
049	MAY 213120
050	MAY 213737
051	LEG, ADJUSTABLE (W/NUT)---S
052	WP3400029 Whirlpool Dishwasher Nut
