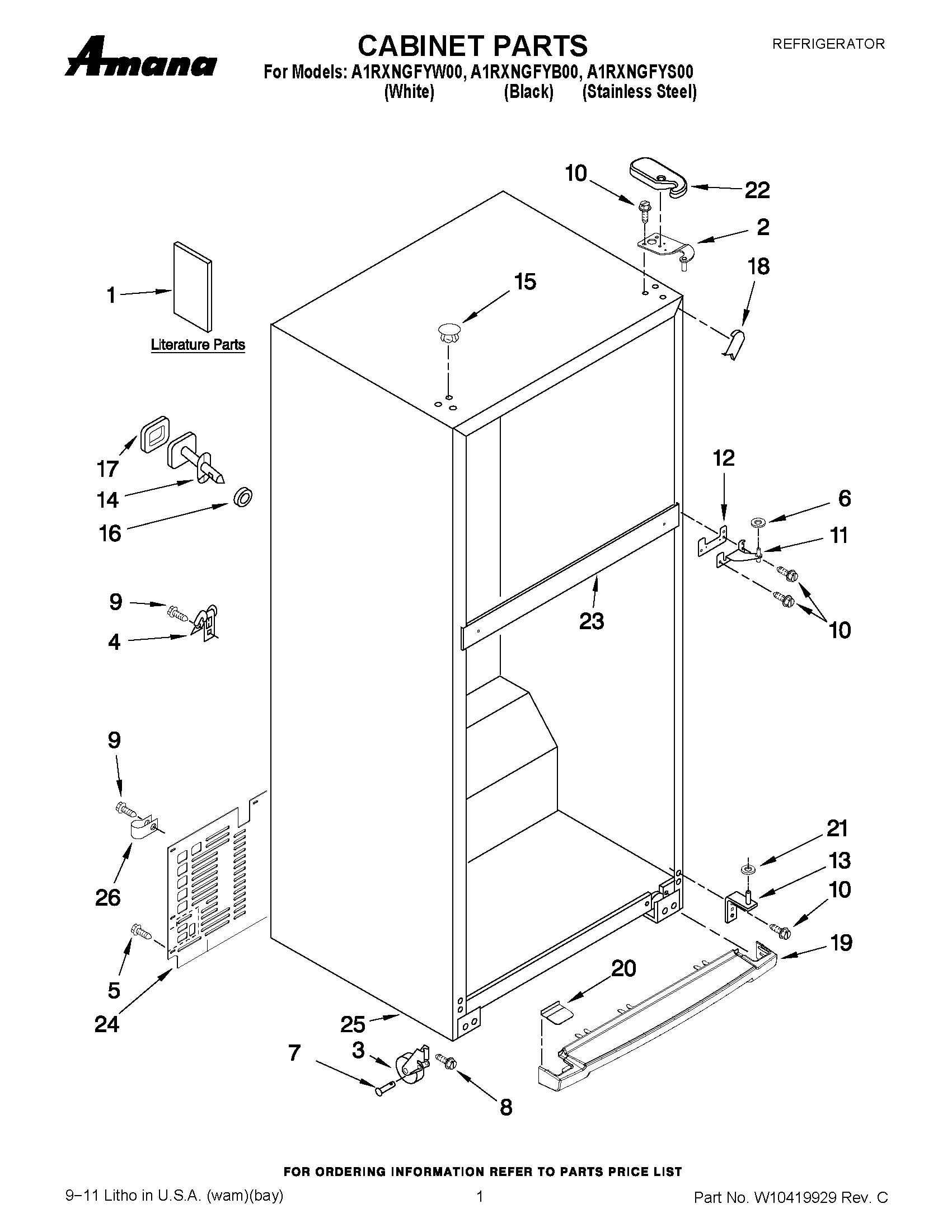

A1RXNGFYB00 01 – CABINET PARTS

Products

PositionProduct
1MAY W10359292
1DO-IT-YOURSELF MANUAL REF./ FRZ.
1SERVICE & WIRING SHEET
1MAY W10359280
2HINGE (TOP)
3ROLLER, FRONT
4MAY 549193
5MAY 489427
6WASHER, PLASTIC
7MAY 2179826
8MAY 3400517
9MAY 8281265
10MAY 489497
11MAY 2254618
12MAY 2183852
13MAY 2254473
15HOLE PLUG
15MAY 2183998
18CORNER FILLER (BLACK)
18CORNER FILLER (WHITE)
19GRILLE (INCLUDES ILLUS. 20) (BLACK)
19GRILLE (INCLUDES ILLUS. 20) (WHITE)
20ENDCAP, GRILLE (WHITE)
20ENDCAP, GRILLE (BLACK)
21Washer (1/16)
22COVER, HINGE (WHITE, LS)
22COVER, HINGE (BLACK, RS)
22COVER, HINGE (BLACK, LS)
22COVER, HINGE (WHITE, RS)
24MAY W10384414
25LINER (NOT A SERVICEABLE PART)
26CLAMP, TUBE
