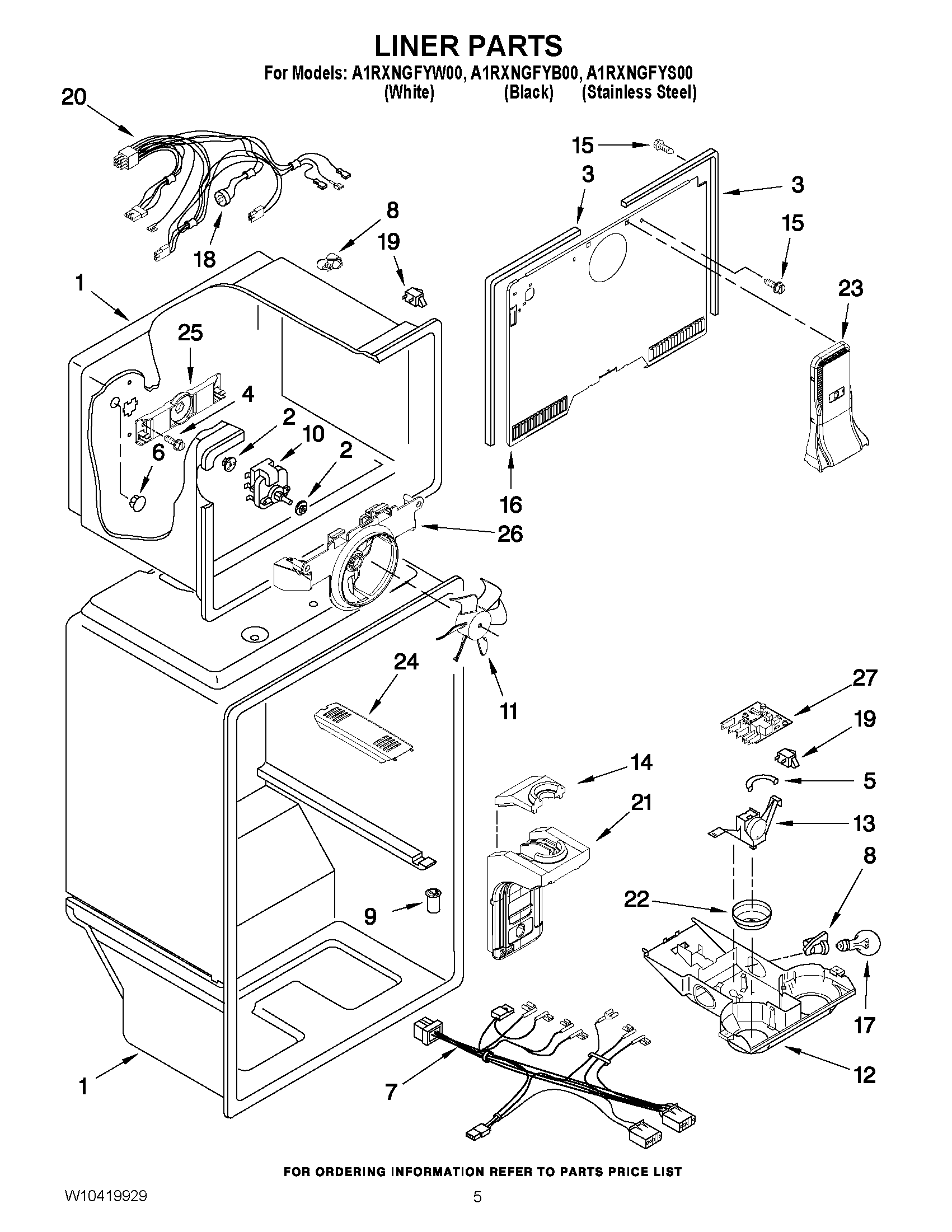

A1RXNGFYB00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254360
4	Screw
5	THERMOSTAT TUBE BARRIER
6	MAY 941839
7	WIRE ASSY. CONTROL BOX
8	Socket, Light
9	MAY 2210509
10	MAY W10208121
11	MAY 2200509
12	MAY W10394915
13	THERMOSTAT
14	MAY W10322086
15	MAY 489478
16	MAY W10385129
17	LIGHT BULB
18	DEFROST, BI-METAL
19	MAY 1118894
20	WIRE ASSEMBLY, FREEZER COMPARTMENT (INCLUDES ITEM 15)
21	AIR DIFFUSER ASSEMBLY
22	KNOB, THERMOSTAT
23	MAY W10394363
24	LIGHT COVER, RC
25	Bracket, Fan Back
26	Bracket,
27	ELEC. CONTROL, DEFROST
