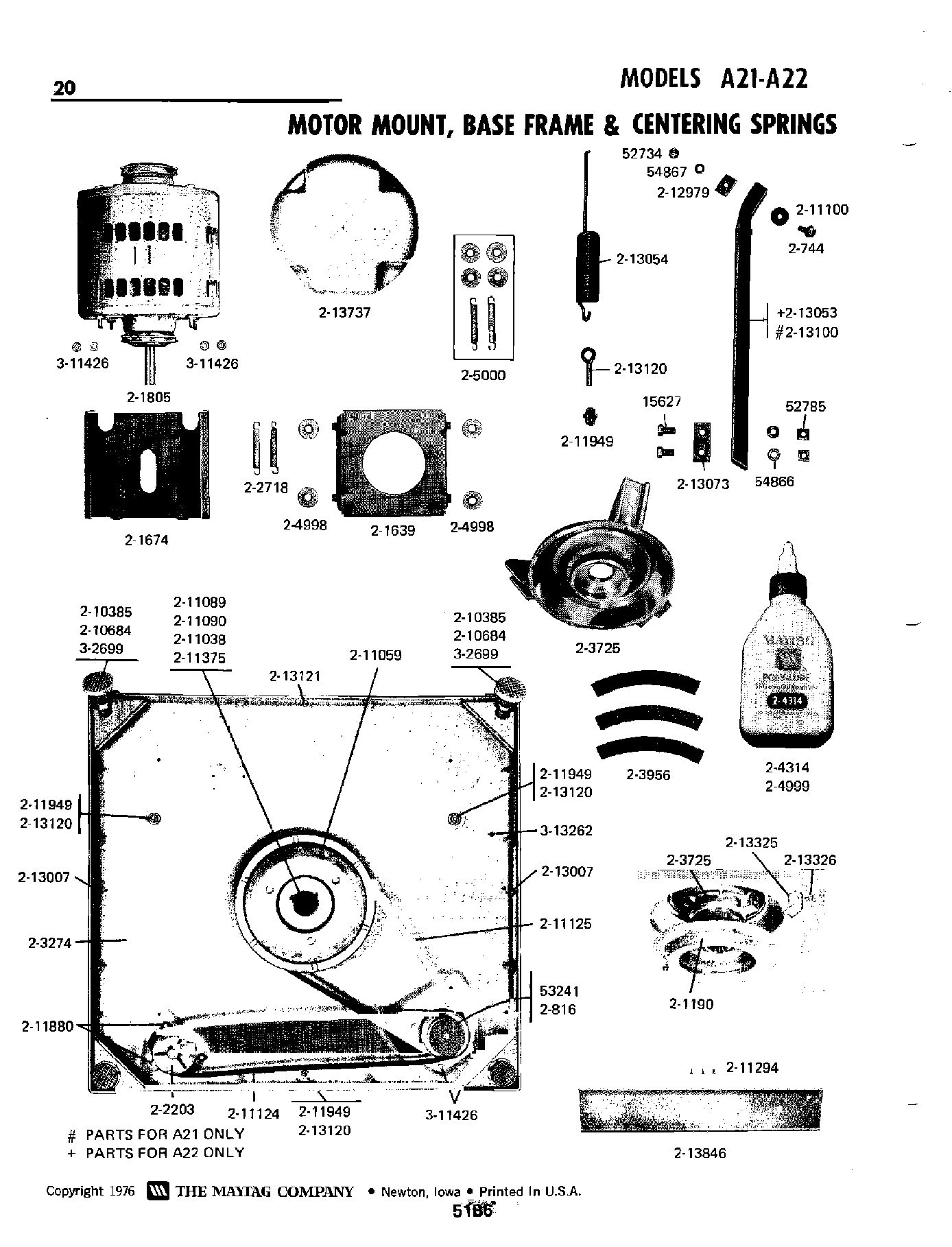

A21CM 07 – MOTOR MOUNT, BASE FRAME & CENTERING SPRS

A21CM 07 – MOTOR MOUNT, BASE FRAME & CENTERING SPRS

Written by

in

A21CM 07 – MOTOR MOUNT, BASE FRAME & CENTERING SPRS

Products

PositionProduct
002MAY Y052734
003MAY Y052785
004MAY Y053241
005MAY Y054866
006MAY Y054867
007W10175939 Whirlpool Bolt Assembly
008MAY 200816
009MAY 201190
010MAY 201639
011MAY 201674
01212002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
013MAY 202203
014202718 Whirlpool Tension Spring
015MAY 203274
016MAY 203725
017203956 Whirlpool Damper Pads 3 Pack with Poly
018MAY 204314
019MAY 204590
020MAY Y204998
021WP99003172 Whirlpool Silicone L
022205000 Whirlpool Motor Spring and Guide Kit
023WP210385 Whirlpool Lock Nut
024WP210684 Whirlpool Dishwasher Leveling Leg Pad
025DOWEL PIN FOR HANDLE
026MAY 211043
027MAY 211045
028MAY 211059
029WP211089 Whirlpool Lug Stop
030WP22003555 Whirlpool Washer ST
031MAY 211100
03212112425 Whirlpool Washer Pump and Drive Belt Set
034WP90767 Whirlpool Screw
035WP912618 Whirlpool Dishwasher Screw
036WPY014874 Whirlpool Screw
037WP211949 Whirlpool Nut
038MAY 212979
039213007 Whirlpool Screw #12
041MAY 213054
042MAY 213073
043MAY 213100
044MAY 213120
045WPW10346892 Whirlpool Screw
046WP213325 Whirlpool Clip
047MAY 213326
048MAY 213737
049MAY 213846
050LEG, ADJUSTABLE (W/NUT)—S
051WP3400029 Whirlpool Dishwasher Nut
052MAY Y313262
