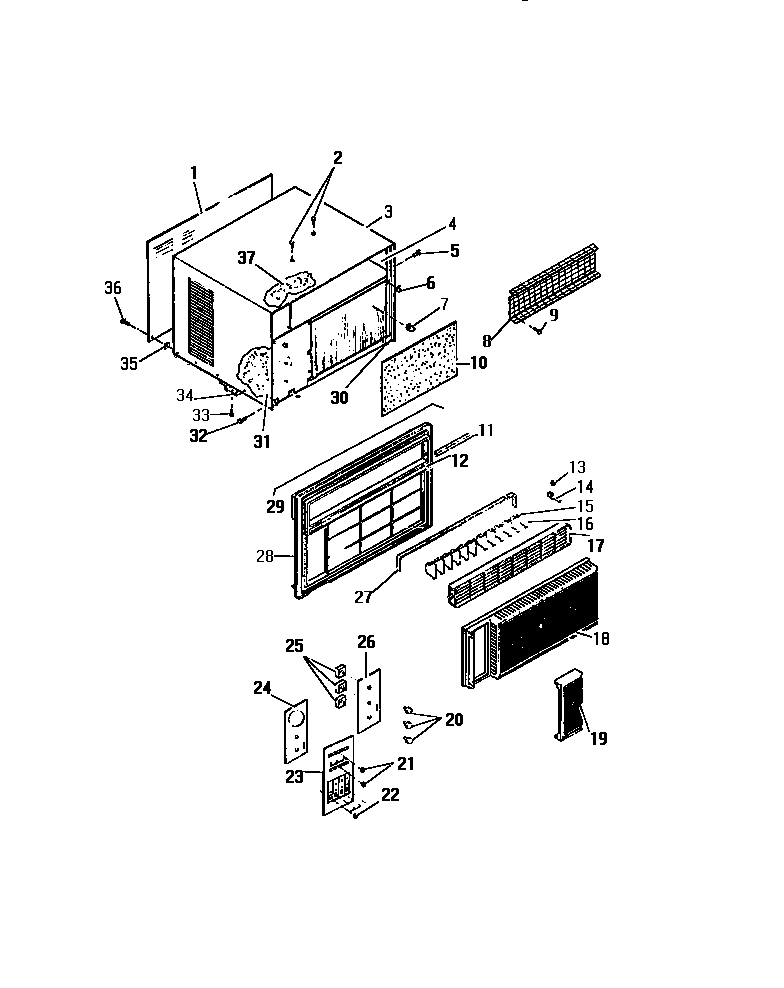

A2238D2 15 – CABINET FRONT (`CC` CABINET MODELS)

Products

Position	Product
1	PANEL-REAR
2	SCREW
3	SHELL
3	WCI 8013175
4	INSULATION-SHELL, R. SIDE
5	SCREW-FRONT LOCKING
6	WCI 8010928
7	CLIP-CAP. TUBE
7	WCI 8013095
8	SCREEN
9	SCREW (2)
10	WCI 8009020
10	WCI 8009019
11	WCI 8014101
11	WCI 8013174
12	WCI 8016350
12	WCI 8016330
12	WCI 8016349
12	WCI 8016399
13	PAD (2)
14	HANDLE (2)
15	WCI 8013697
16	LOUVER (12)
17	LOUVER & GRILL ASSEMBLY
18	WCI 8013733
18	WCI 8011043
19	WCI 8016326
19	HOUSING, ALMOND
20	WCI 8016109
21	KNOB-SLIDE CONTROL
22	WCI 8016116
23	WCI 8016213
24	WCI 8016152
25	WCI 8006801
25	SEAL-SPACER (NON-ILLUSTRATED)
25	SPACER
25	SEAL-ESCUTCHEON
26	WCI 8016398
26	WCI 8016151
27	SEAL-CABINET, FRONT
28	WCI 8016325
28	FRAME
29	WCI 8016327
29	WCI 8016328
29	WCI 8016329
29	WCI 8016400
30	CLIP-FRONT TO BASE
31	INSULATION-SHELL, L. SIDE
33	SCREW (2)
34	SUPPORT
35	NUT
36	SCREW
37	WCI 8007542
