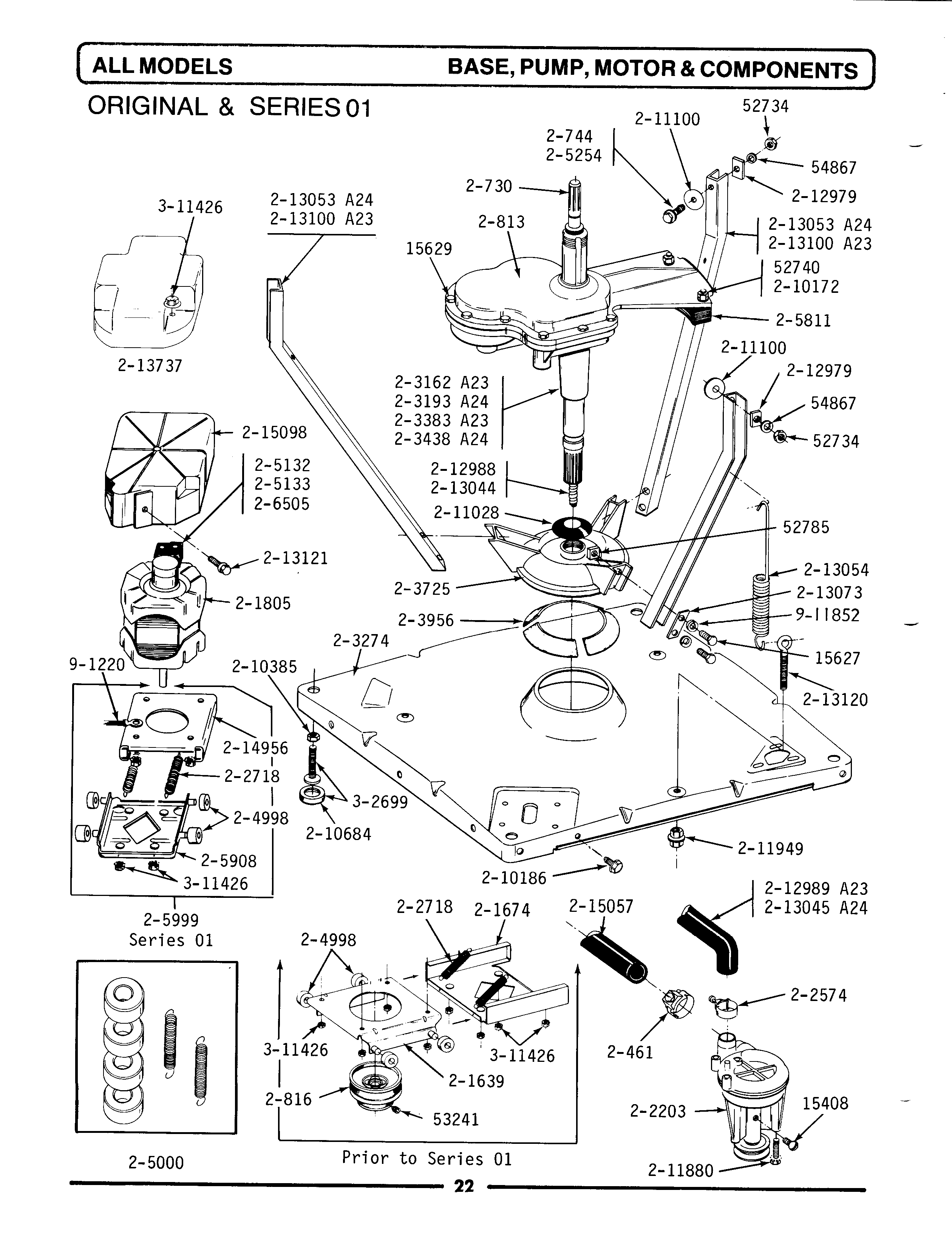

A23CA 05 – BASE, PUMP, MOTOR & COMPONENTS

Products

Position	Product
001	MAY Y015408
003	MAY Y015629
004	MAY Y052734
005	WP62739 Whirlpool Nut
006	MAY Y052785
007	MAY Y053241
008	MAY Y054867
009	MAY 200461
010	MAY 200730
011	W10175939 Whirlpool Bolt Assembly
013	MAY 200816
014	MAY 201639
015	MAY 201674
016	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
017	MAY 202203
018	WP285655 Whirlpool Hose Clamp
019	202718 Whirlpool Tension Spring
022	MAY 203274
023	MAY 203383
024	PART NOT USED
025	MAY 203725
026	203956 Whirlpool Damper Pads 3 Pack with Poly
027	MAY Y204998
028	205000 Whirlpool Motor Spring and Guide Kit
029	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
031	W10175938 Whirlpool Bolt
033	MAY 205908
034	MAY 205999
036	DOWEL PIN FOR HANDLE
037	MAY 210186
038	WP210385 Whirlpool Lock Nut
039	WP210684 Whirlpool Dishwasher Leveling Leg Pad
040	MAY 211028
041	MAY 211100
042	WPY014874 Whirlpool Screw
043	WP211949 Whirlpool Nut
044	MAY 212979
045	MAY 212988
046	WPY212989 Whirlpool Outer Hose
047	PART NOT USED
048	WP213045 Whirlpool Dishwasher Tub to Pump Hose
049	PART NOT USED
050	MAY 213054
051	MAY 213073
052	MAY 213100
053	MAY 213120
054	WPW10346892 Whirlpool Screw
055	MAY 213737
056	MAY 214956
057	MAY 215057
058	MAY 215098
059	LEG, ADJUSTABLE (W/NUT)—S
060	WP3400029 Whirlpool Dishwasher Nut
061	MAY 901220
062	MAY 911852
