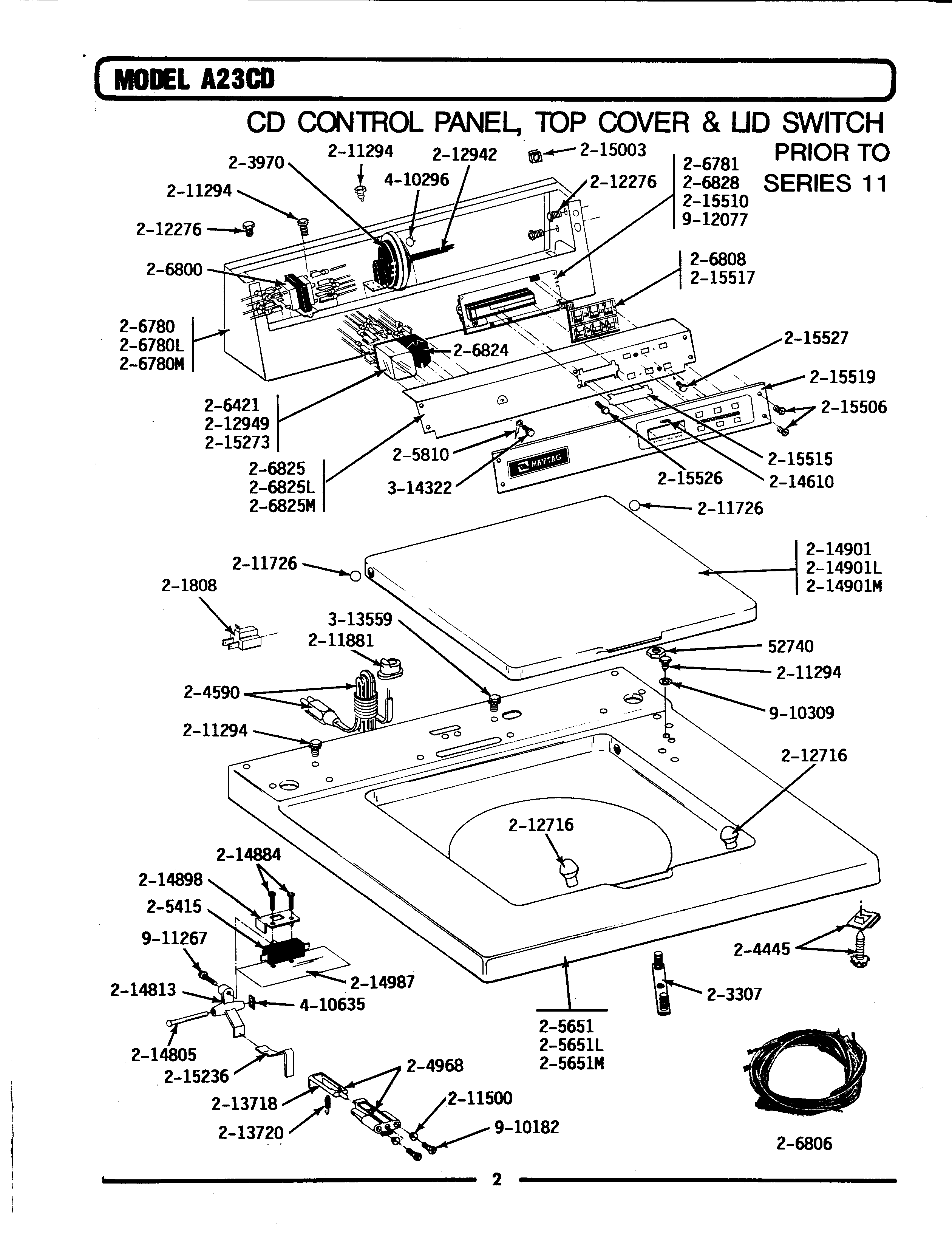

A23CDL 01 – CD CONTROL PANEL, TOP COVER & LID SWITCH

Products

Position	Product
002	MAY Y201808
004	MAY 203970
005	MAY 204445
007	PLUNGER & BRACKET ASSEMBLY–W
008	W10820036 Whirlpool Door Switch Kit
009	TOP COVER-WHITE
013	WPW10135389 Whirlpool Switch
014	MAY 206824
015	BACK BRACKET ASSY
017	MAY 206828
018	MAY 207766
019	WP90767 Whirlpool Screw
020	MAY 211500
021	WP211726 Whirlpool Ball Assembly
022	GROMMET
023	MAY 212276
024	WP212716 Whirlpool Lid Bumper
025	MAY 212942
026	SCREW, BUSHINGS
027	MAY 213718
028	WP213720 Whirlpool Spring Assembly
029	MAY 214610
030	MAY 214805
031	MAY 214813
032	MAY 214884
033	MAY 214898
034	LID-WHITE
035	DOWEL PIN FOR HANDLE
036	MAY 214987
037	MAY 215003
038	MAY 215236
039	SPRING CLIP
040	WPW10131119 Whirlpool Screw
041	MAY 215510
042	SPACER CIRCUIT BOARD
043	DISPLAY COVER
044	WPW10424308 Whirlpool Push Button
045	MAY 215519
046	SCREW, CIRCUIT BOARD
047	W10756178 Whirlpool Screw
048	MAY Y313559
049	MAY Y314322
050	WP596669 Whirlpool Hose Clamp
051	MAY 410635
052	MAY 910182
053	MAY 910309
054	MAY 911267
055	M0282005 Whirlpool Nut
