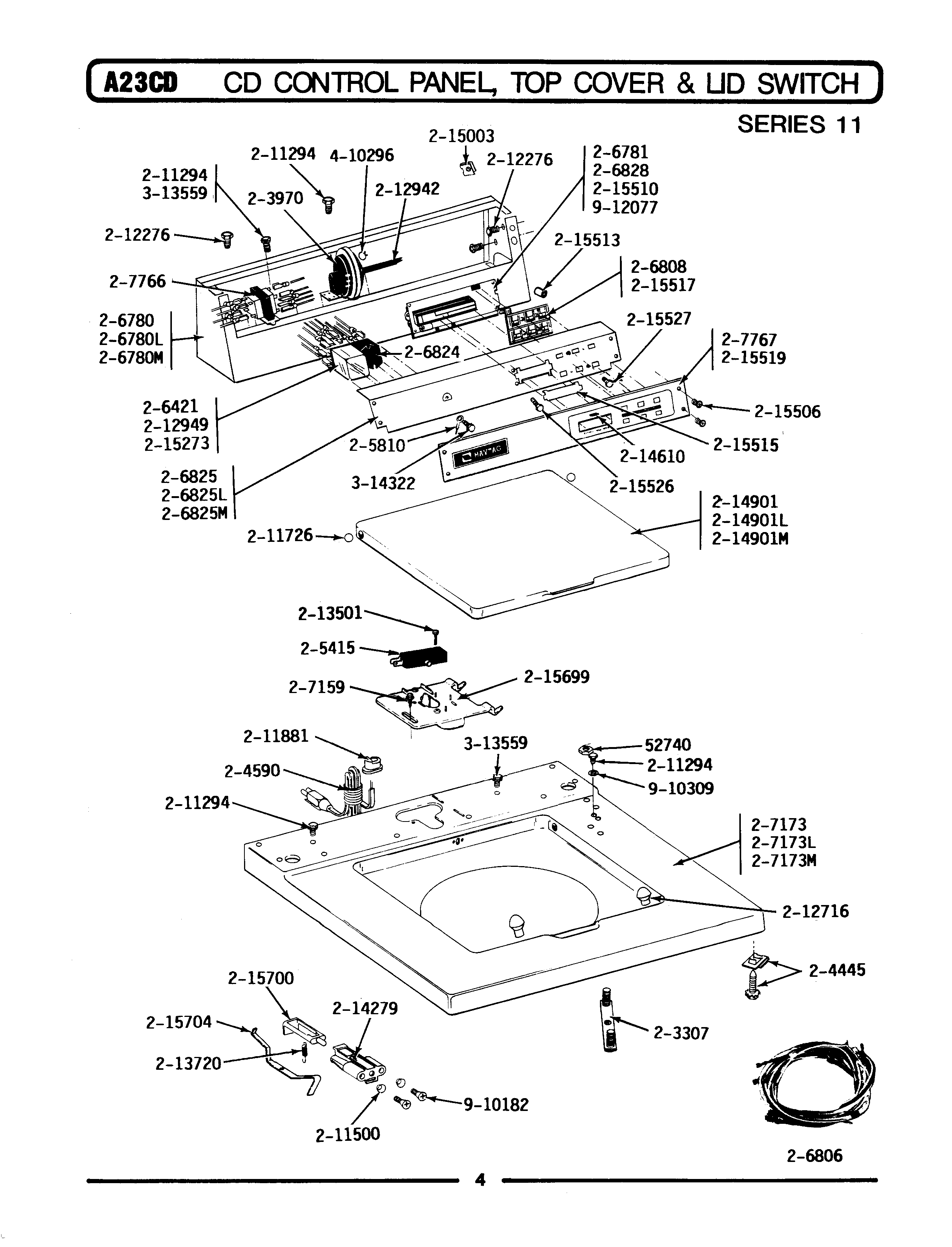

A23CDL 02 – CD CONTROL PANEL, TOP COVER & LID SWITCH

Products

Position	Product
002	WP62739 Whirlpool Nut
003	MAY Y201808
005	MAY 203970
006	MAY 204445
007	MAY 204590
008	W10820036 Whirlpool Door Switch Kit
009	MAY 205810
010	MAY 206421
011	CONTROL COVER ASSY
012	MAY 206780L
015	WPW10135389 Whirlpool Switch
016	MAY 206824
017	BACK BRACKET ASSY
019	MAY 206828
020	MAY 207766
021	SCREW
022	TOP COVER ASSY
024	WP90767 Whirlpool Screw
025	MAY 211500
026	WP211726 Whirlpool Ball Assembly
027	GROMMET
028	MAY 212276
029	WP212716 Whirlpool Lid Bumper
030	MAY 212942
031	SCREW, BUSHINGS
032	WP213720 Whirlpool Spring Assembly
033	MAY 214279
034	MAY 214610
035	LID-WHITE
037	MAY 214987
038	MAY 215003
039	SPRING CLIP
040	WPW10131119 Whirlpool Screw
041	MAY 215510
042	SPACER CIRCUIT BOARD
043	DISPLAY COVER
044	WPW10424308 Whirlpool Push Button
045	MAY 215519
046	SCREW, CIRCUIT BOARD
047	W10756178 Whirlpool Screw
048	MAY Y215699
049	DOWEL PIN FOR HANDLE
050	MAY 215704
051	MAY Y313559
052	MAY Y314322
053	WP596669 Whirlpool Hose Clamp
054	MAY 410635
055	MAY 910182
056	MAY 910309
057	M0282005 Whirlpool Nut
