A23CDL 03 – CONTROL PANEL
Written by
in

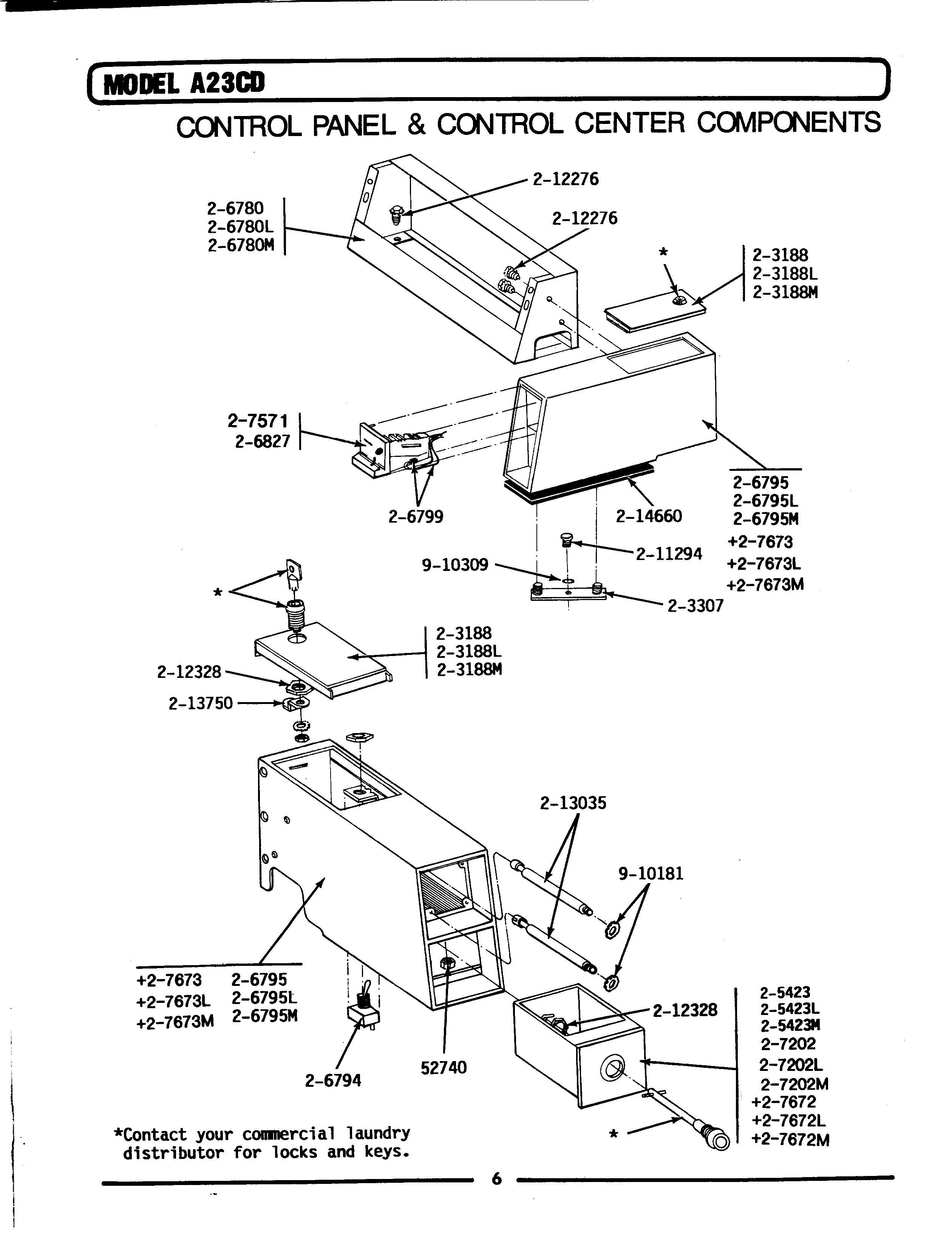

A23CDL 03 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 001 | WP62739 Whirlpool Nut |
| 002 | MAY 203188 |
| 003 | ACCESS DOOR-ALMOND |
| 005 | COIN BOX-WHITE |
| 006 | COIN BOX-ALMOND |
| 007 | CONTROL COVER ASSY |
| 008 | MAY 206780L |
| 009 | MAY 206794 |
| 010 | MAY 206795 |
| 011 | MAY 206795L |
| 012 | MAY 206799 |
| 016 | DOWEL PIN FOR HANDLE |
| 017 | MAY 207672 |
| 018 | MAY 207672L |
| 019 | MAY 207673 |
| 020 | MAY 207673L |
| 021 | WP90767 Whirlpool Screw |
| 022 | MAY 212276 |
| 023 | W11395752 Whirlpool Nut |
| 024 | MAY 213035 |
| 025 | W11165684 Whirlpool Cam |
| 026 | MAY 214660 |
| 027 | MAY 910181 |
| 028 | MAY 910309 |
