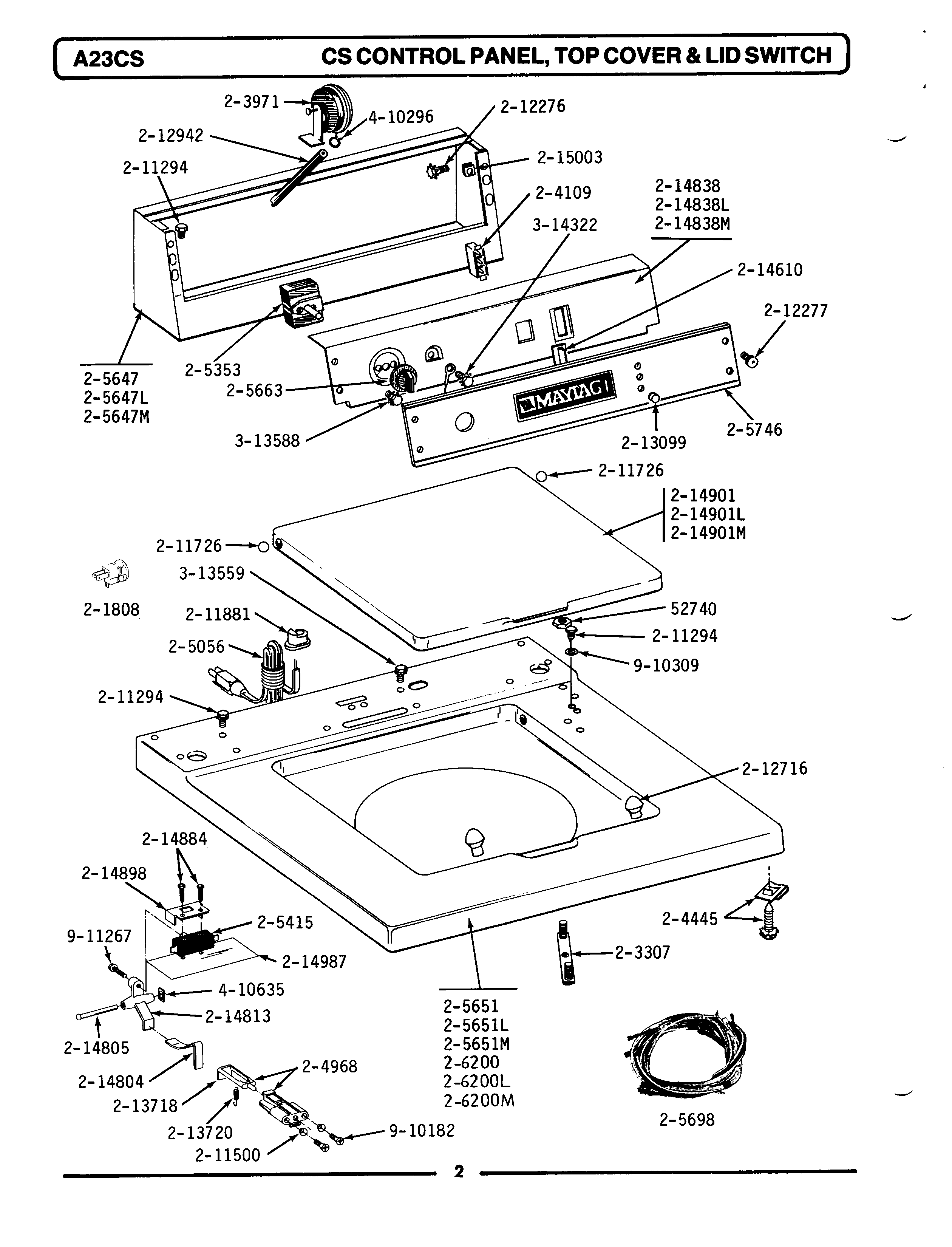

A23CSW 01 – CONTROL PANEL, TOP COVER & LID SWITCH

Products

Position	Product
001	WP62739 Whirlpool Nut
002	MAY Y201808
004	MAY 203971
005	MAY 204109
006	MAY 204445
007	PLUNGER & BRACKET ASSEMBLY–W
008	MAY 205056
009	SWITCH, TEMP.
010	W10820036 Whirlpool Door Switch Kit
013	TOP COVER-WHITE
015	MAY 205663
016	MAY 205698
020	WP90767 Whirlpool Screw
021	MAY 211500
022	WP211726 Whirlpool Ball Assembly
023	GROMMET
024	MAY 212276
025	WP1163283 Whirlpool Air Conditioner Screw
026	WP212716 Whirlpool Lid Bumper
027	MAY 212942
028	MAY 213099
029	MAY 213718
030	WP213720 Whirlpool Spring Assembly
031	MAY 214610
032	MAY 214804
033	MAY 214805
034	MAY 214813
035	MAY 214838
037	MAY 214884
038	MAY 214898
039	LID-WHITE
040	DOWEL PIN FOR HANDLE
041	MAY 214987
042	MAY 215003
043	MAY Y313559
044	WP488234 Whirlpool Air Conditioner Screw
045	MAY Y314322
046	WP596669 Whirlpool Hose Clamp
047	MAY 410635
048	MAY 910182
049	MAY 910309
050	MAY 911267
