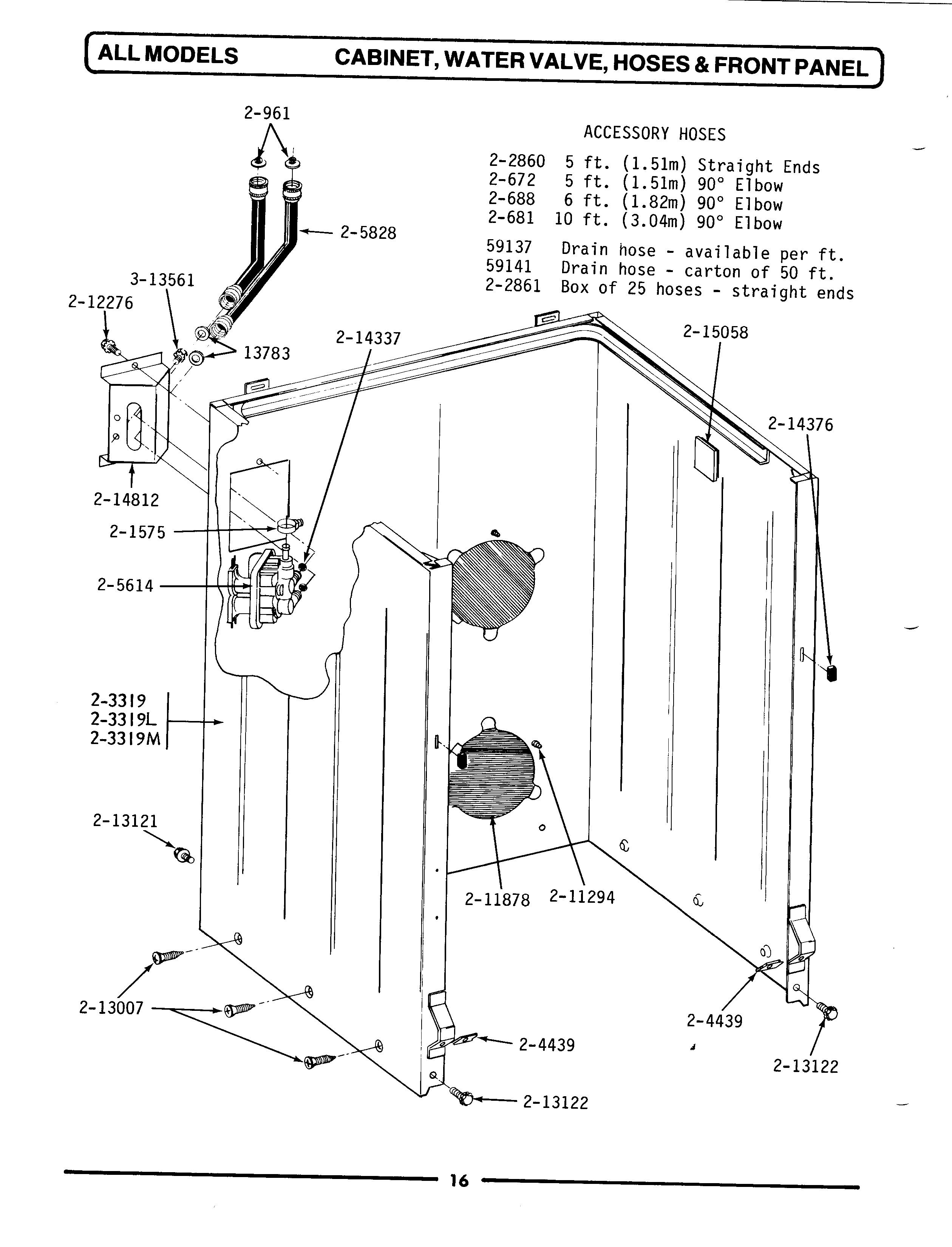

A23CT 02 – CABINET, WATER VALVE, HOSES & FRNT PANEL

A23CT 02 – CABINET, WATER VALVE, HOSES & FRNT PANEL

Written by

in

A23CT 02 – CABINET, WATER VALVE, HOSES & FRNT PANEL

Products

PositionProduct
001MAY Y013783
002MAY Y059137
003MAY Y059141
004MAY 200461
005WP76314 Whirlpool Fill Hose
006MAY 200681
008MAY Y200832
009MAY 200908
010MAY 200961
01176660 Whirlpool Syphon Break with Clamps
012WP596669 Whirlpool Hose Clamp
013202860 Whirlpool Inlet Hose 5 FT
014MAY 202861
015MAY 203237
018SCREW & FSTNER ASSY (FT. PNL)
019205613 Whirlpool Washer Water Inlet Valve
020MAY 205828
021MAY 206103
022WP16272 Whirlpool Hose Coupling
023MAY 211149
024WP90767 Whirlpool Screw
025MAY 211448
026DOWEL PIN FOR HANDLE
027MAY 212276
028MAY 212982
029MAY 212998
030MAY 212998L
031213007 Whirlpool Screw #12
032WPW10346892 Whirlpool Screw
033WP27001200 Whirlpool Screw
034MAY 213846
035WP96160 Whirlpool Washer Inlet Valve Screen
036MAY 214376
037MAY 214768
038MAY 214812
039MAY 215057
040MAY 215058
041MAY Y310842
042MAY Y313561
