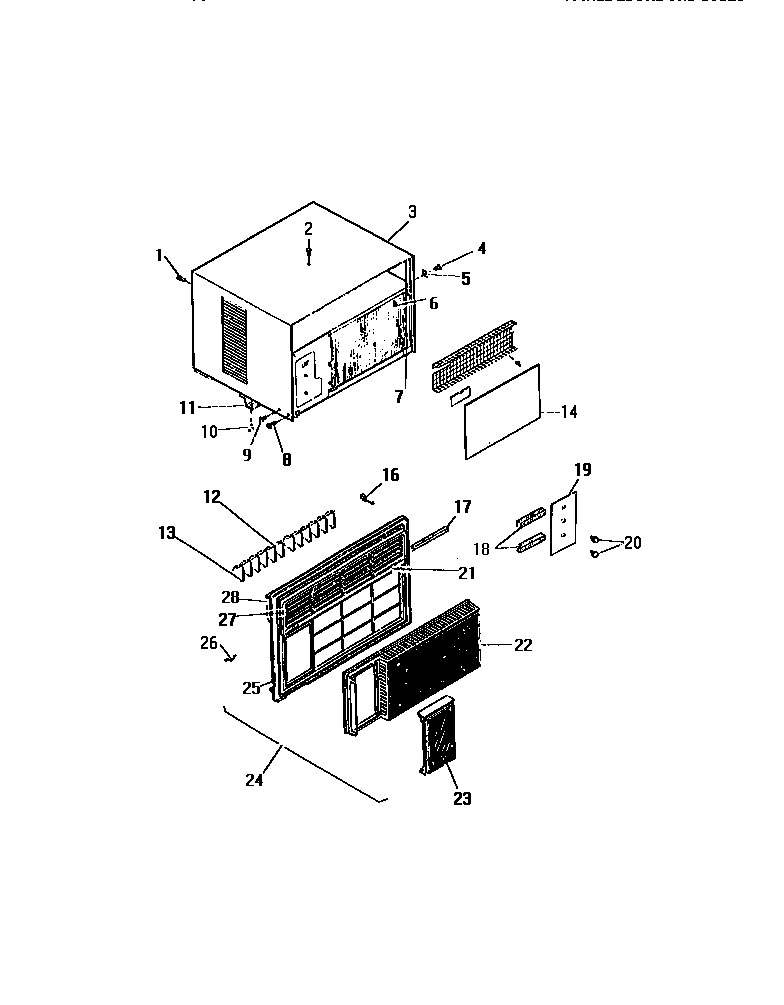

A2438DC2 01 – CABINET FRONT (`AAA` CABINET MODELS – Aparts

A2438DC2 01 – CABINET FRONT (`AAA` CABINET MODELS

Products

Position	Product
2	WCI 8010320
3	SHELL
3	SHELL
4	SCREW-FRONT LOCKING
5	NUT
6	CLIP-CAP. TUBE
7	CLIP (2)
8	SCREW
9	SCREW (4)
10	SCREW (2)
11	SUPPORT
12	LINK-LOUVER (2)
13	LOUVER (12)
14	WCI 8009018
16	HANDLE (2)
17	SEAL
18	SEAL
19	WCI 8006836
19	WCI 8006837
20	KNOB-CONTROL (3)
21	WCI 8013820
21	WCI 8013633
22	WCI 8013620
23	WCI 8013621
24	WCI 8013627
24	WCI 8013819
25	WCI 8013023
26	WCI 8009030
27	WCI 8011235
28	WCI 8007461
