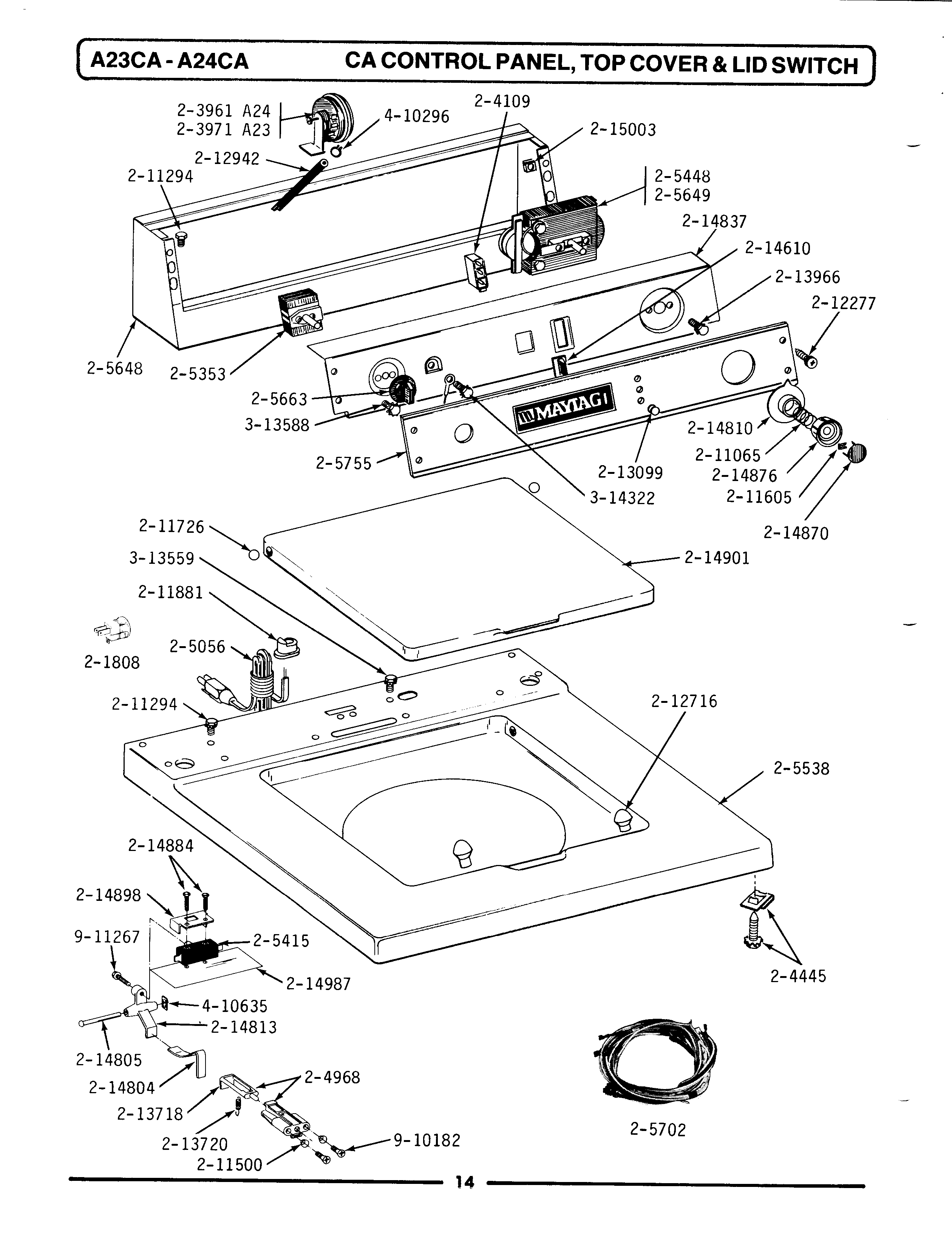

A24CA 01 – CA CONTROL PANEL, TOP COVER & LID SWITCH

Products

PositionProduct
001MAY Y201808
002MAY 203961
003MAY 203971
004MAY 204109
005MAY 204445
006PLUNGER & BRACKET ASSEMBLY–W
007MAY 205056
008SWITCH, TEMP.
009W10820036 Whirlpool Door Switch Kit
010MAY 205448
013MAY 205649
014MAY 205663
017WP211065 Whirlpool Timer Spring
018WP90767 Whirlpool Screw
019MAY 211500
020MAY 211605
021WP211726 Whirlpool Ball Assembly
022GROMMET
023WP1163283 Whirlpool Air Conditioner Screw
024WP212716 Whirlpool Lid Bumper
025MAY 212942
026MAY 213099
027MAY 213718
028WP213720 Whirlpool Spring Assembly
029WP3400014 Whirlpool Dishwasher Screw
030MAY 214610
031MAY 214804
032MAY 214805
033MAY 214810
034MAY 214813
036MAY 214870
037MAY 214876
038MAY 214884
039MAY 214898
040LID-WHITE
041DOWEL PIN FOR HANDLE
042MAY 215003
043MAY Y313559
044WP488234 Whirlpool Air Conditioner Screw
045MAY Y314322
046WP596669 Whirlpool Hose Clamp
047MAY 410635
048MAY 910182
049MAY 911267
