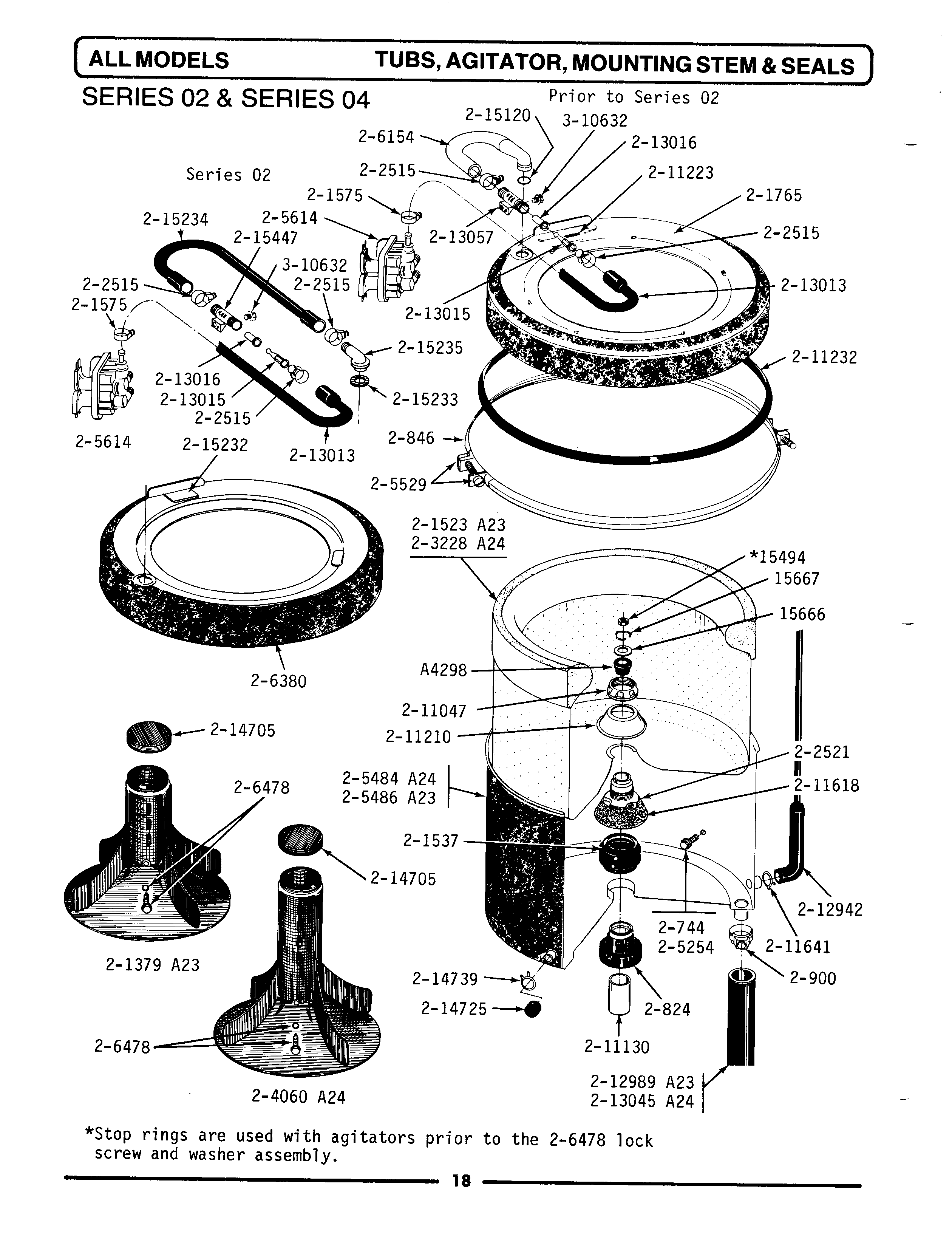

A24CA 03 – TUB, AGITATOR, MOUNTING STEM & SEAL

Products

Position	Product
001	WP6-0A57420 Whirlpool Agitator Seal
002	MAY Y015494
003	WPY015666 Whirlpool Washer Retainer
004	MAY Y015667
005	MAY Y054867
006	W10175939 Whirlpool Bolt Assembly
007	6-2040130 Whirlpool Washer Tub Bearing Kit
009	MAY 200900
010	MAY 201379
011	DOWEL PIN FOR HANDLE
012	MAY 201537
013	WP596669 Whirlpool Hose Clamp
014	MAY 201765
016	MAY 202521
017	PART NOT USED
018	MAY 204012
020	PART NOT USED
021	W10175938 Whirlpool Bolt
022	PART NOT USED
023	MAY 205486
025	205613 Whirlpool Washer Water Inlet Valve
026	MAY 206154
027	MAY 206380
028	MAY 206478
029	MAY 206531
030	MAY 206683
031	WP6-2110472 Whirlpool Nut Clamp
032	MAY 211100
033	MAY 211130
034	MAY 211210
035	MAY 211223
036	WP211232 Whirlpool Seal
037	MAY 211618
038	WP285655 Whirlpool Hose Clamp
039	MAY 212942
040	WPY212989 Whirlpool Outer Hose
041	WP213013 Whirlpool Injector Hose
042	WP213015 Whirlpool Nozzle Injector Tube
043	WP216201 Whirlpool Rubber Injector Valve
044	WP213045 Whirlpool Dishwasher Tub to Pump Hose
045	MAY 213057
046	MAY 214705
047	MAY 214725
049	MAY 215120
050	MAY 215232
051	WP215233 Whirlpool Seal
052	WPY215234 Whirlpool Hose
053	MAY 215235
054	WP215447 Whirlpool Sleeve
055	MAY Y310632
