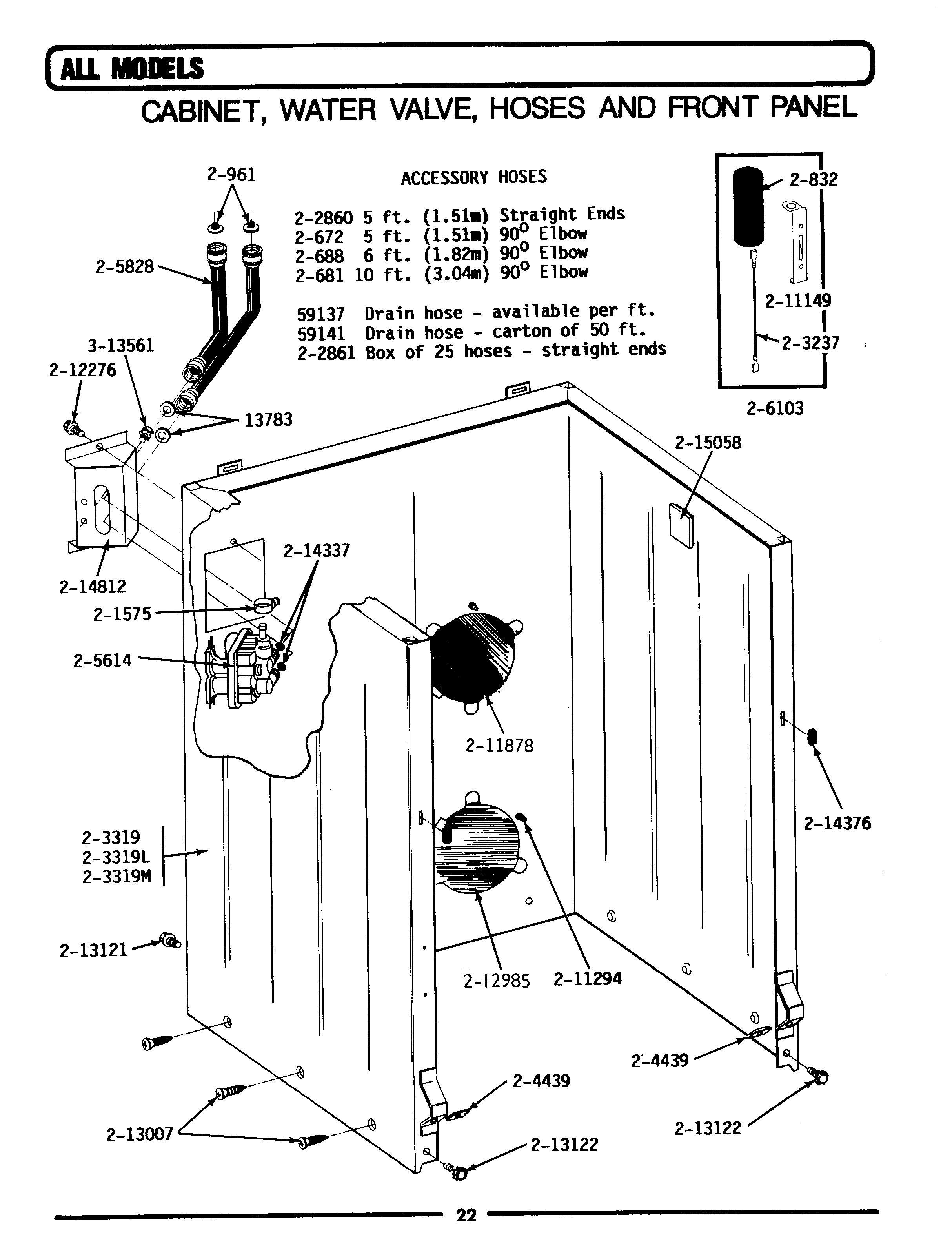

A25CAE 03 – CABINET, WATER VALVE, HOSES & FRNT PANEL

A25CAE 03 – CABINET, WATER VALVE, HOSES & FRNT PANEL

Written by

in

A25CAE 03 – CABINET, WATER VALVE, HOSES & FRNT PANEL

Products

PositionProduct
001MAY Y013783
002MAY Y059137
003MAY Y059141
004MAY 200461
005WP76314 Whirlpool Fill Hose
006MAY 200681
008MAY Y200832
009MAY 200908
010MAY 200961
01176660 Whirlpool Syphon Break with Clamps
012WP596669 Whirlpool Hose Clamp
013202860 Whirlpool Inlet Hose 5 FT
014MAY 202861
015MAY 203237
017SCREW & FSTNER ASSY (FT. PNL)
018205613 Whirlpool Washer Water Inlet Valve
019MAY 205828
020MAY 206103
021WP16272 Whirlpool Hose Coupling
022MAY 211149
023WP90767 Whirlpool Screw
024MAY 211448
025DOWEL PIN FOR HANDLE
026MAY 212276
027MAY 212982
028MAY 212985
029MAY 212998
030213007 Whirlpool Screw #12
031WPW10346892 Whirlpool Screw
032WP27001200 Whirlpool Screw
033MAY 213846
034WP96160 Whirlpool Washer Inlet Valve Screen
035MAY 214376
036MAY 214768
037MAY 214812
038MAY 215057
039MAY 215058
040MAY Y310842
041MAY Y313561
