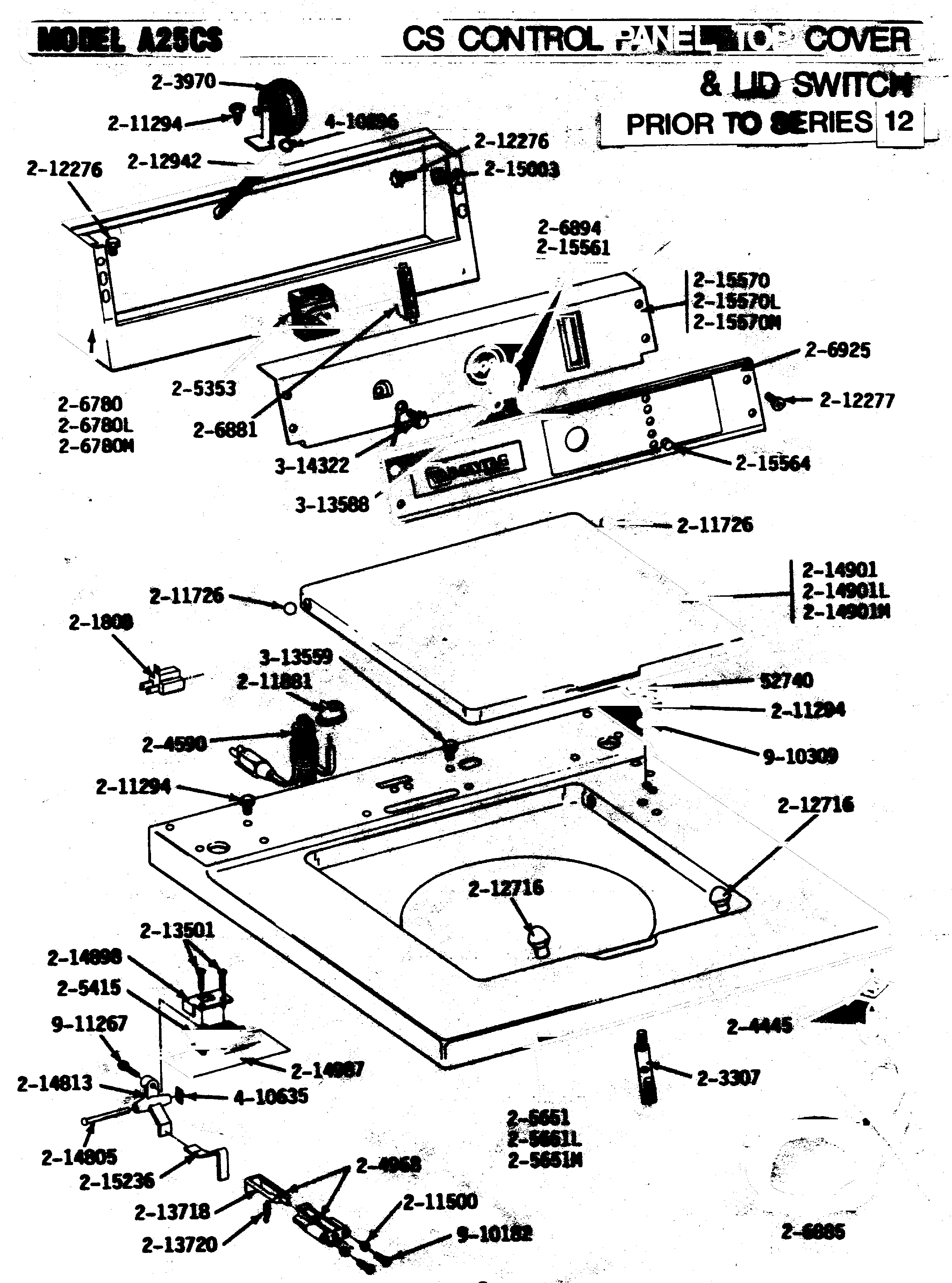

A25CME 01 – CONTROL PANEL, TOP CVR & LID SWTCH (00)

A25CME 01 – CONTROL PANEL, TOP CVR & LID SWTCH (00)

Written by

in

A25CME 01 – CONTROL PANEL, TOP CVR & LID SWTCH (00)

Products

PositionProduct
001WP62739 Whirlpool Nut
002MAY Y201808
004MAY 203970
005MAY 204445
006MAY 204590
007PLUNGER & BRACKET ASSEMBLY–W
008SWITCH, TEMP.
009W10820036 Whirlpool Door Switch Kit
010TOP COVER-WHITE
011MAY 206780L
011CONTROL COVER ASSY
014MAY 206894
016WP90767 Whirlpool Screw
017MAY 211500
018WP211726 Whirlpool Ball Assembly
019GROMMET
020MAY 212276
021WP1163283 Whirlpool Air Conditioner Screw
022WP212716 Whirlpool Lid Bumper
023MAY 212942
024MAY 213501
025MAY 213718
026WP213720 Whirlpool Spring Assembly
027MAY 214805
028MAY 214813
029MAY 214898
030LID-WHITE
031MAY 214987
032MAY 215003
033MAY 215236
034MAY 215561
035WP215564 Whirlpool Indicator Lens
036DOWEL PIN FOR HANDLE
036MAY 215570
037MAY Y313559
038WP488234 Whirlpool Air Conditioner Screw
039MAY Y314322
040WP596669 Whirlpool Hose Clamp
041MAY 410635
042MAY 910182
043MAY 910309
044MAY 911267
