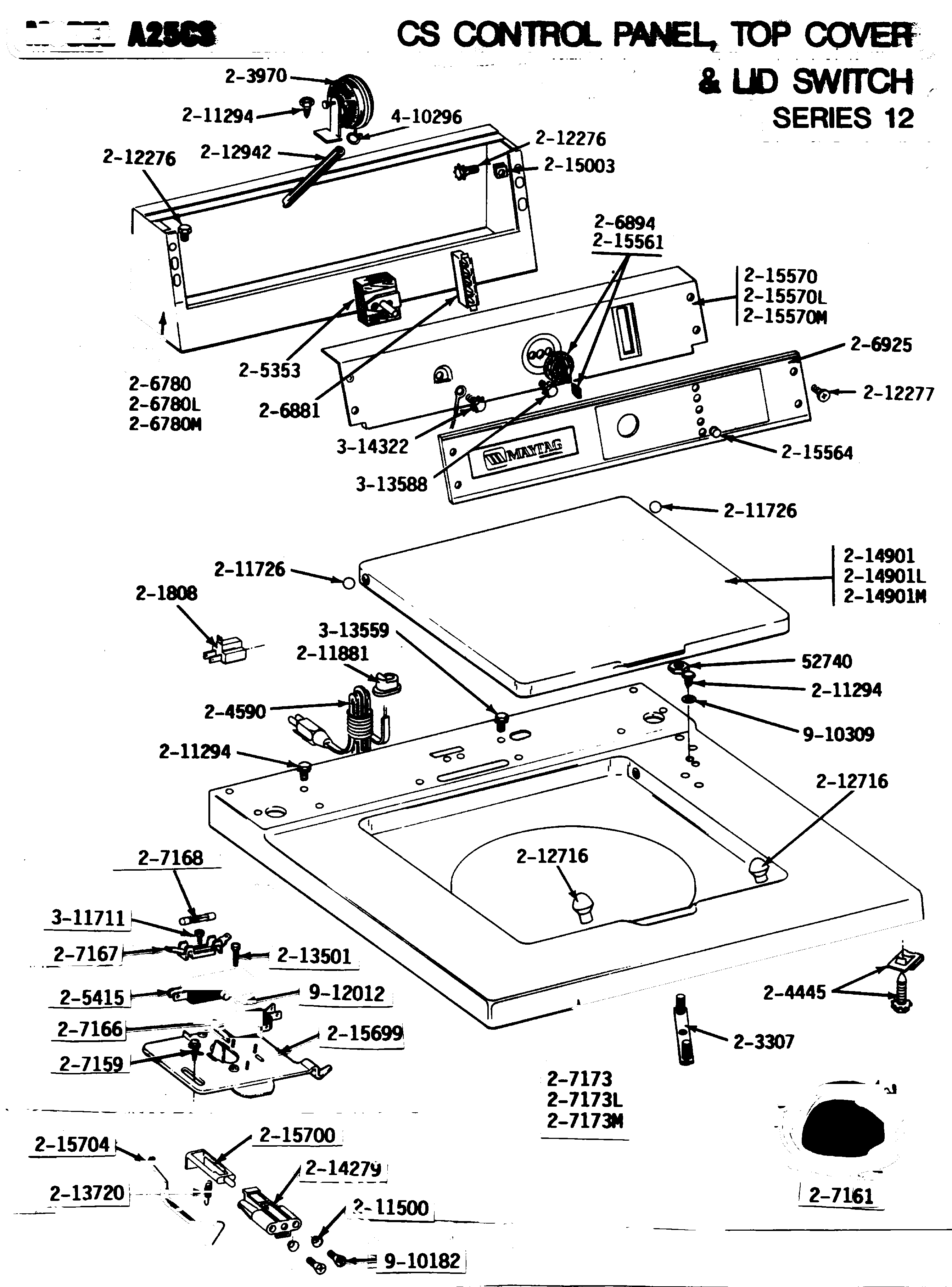

A25CS 02 – CONTROL PANEL, TOP CVR & LID SWTCH (12)

Products

Position	Product
001	WP62739 Whirlpool Nut
002	MAY Y201808
004	MAY 203970
005	MAY 204445
006	MAY 204590
007	SWITCH, TEMP.
008	W10820036 Whirlpool Door Switch Kit
009	MAY 206780L
009	CONTROL COVER ASSY
011	MAY 206894
013	SCREW
014	MAY 207161
015	WP207166 Whirlpool CH Switch
016	MAY 207167
017	MAY 207168
018	TOP COVER ASSY
019	WP90767 Whirlpool Screw
020	MAY 211500
021	WP211726 Whirlpool Ball Assembly
022	GROMMET
023	MAY 212276
024	WP1163283 Whirlpool Air Conditioner Screw
025	WP212716 Whirlpool Lid Bumper
026	MAY 212942
027	MAY 213501
028	WP213720 Whirlpool Spring Assembly
029	MAY 214279
030	LID-WHITE
031	MAY 215003
032	MAY 215561
033	WP215564 Whirlpool Indicator Lens
034	MAY 215570
035	MAY Y215699
036	DOWEL PIN FOR HANDLE
037	MAY 215704
038	MAY Y311711
039	MAY Y313559
040	WP488234 Whirlpool Air Conditioner Screw
041	MAY Y314322
042	WP596669 Whirlpool Hose Clamp
043	MAY 910182
044	MAY 910309
045	MAY 912012
