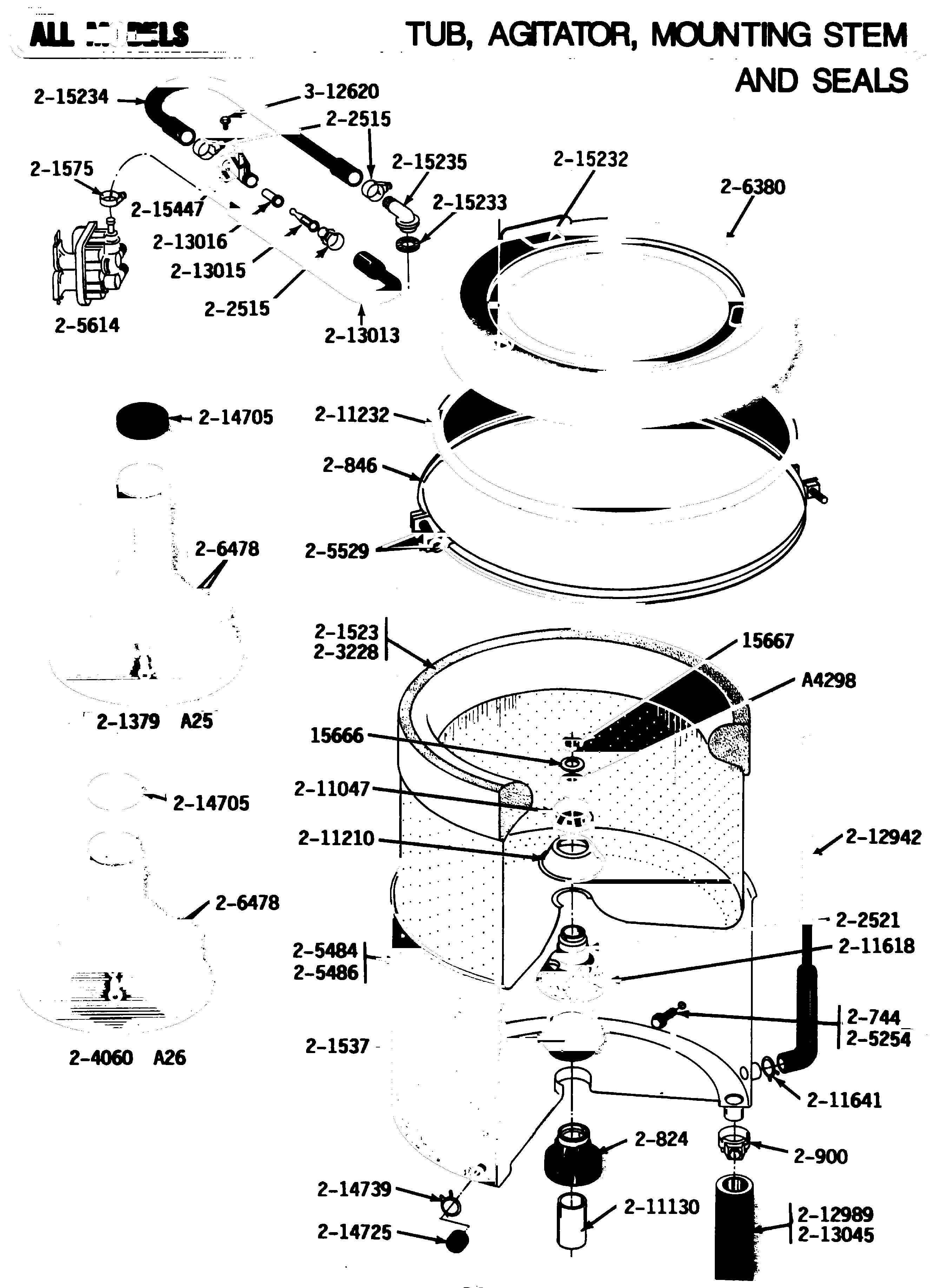

A25CT 06 – TUB, AGITATOR, MOUNTING STEM & SEAL

Products

Position	Product
001	WP6-0A57420 Whirlpool Agitator Seal
002	WPY015666 Whirlpool Washer Retainer
003	MAY Y015667
004	W10175939 Whirlpool Bolt Assembly
005	6-2040130 Whirlpool Washer Tub Bearing Kit
007	MAY 200900
008	MAY 201379
009	DOWEL PIN FOR HANDLE
010	MAY 201537
011	WP596669 Whirlpool Hose Clamp
013	MAY 202521
014	PART NOT USED
015	MAY 204012
017	PART NOT USED
018	W10175938 Whirlpool Bolt
019	PART NOT USED
020	MAY 205486
022	205613 Whirlpool Washer Water Inlet Valve
023	MAY 206380
024	MAY 206478
025	MAY 206683
026	WP6-2110472 Whirlpool Nut Clamp
027	MAY 211100
028	MAY 211130
029	MAY 211210
030	WP211232 Whirlpool Seal
031	MAY 211618
032	WP285655 Whirlpool Hose Clamp
033	MAY 212942
034	WPY212989 Whirlpool Outer Hose
035	WP213013 Whirlpool Injector Hose
036	WP213015 Whirlpool Nozzle Injector Tube
037	WP216201 Whirlpool Rubber Injector Valve
038	WP213045 Whirlpool Dishwasher Tub to Pump Hose
039	MAY 214705
040	MAY 214725
042	MAY 215232
043	WP215233 Whirlpool Seal
044	WPY215234 Whirlpool Hose
045	MAY 215235
046	WP215447 Whirlpool Sleeve
047	MAY 312620
