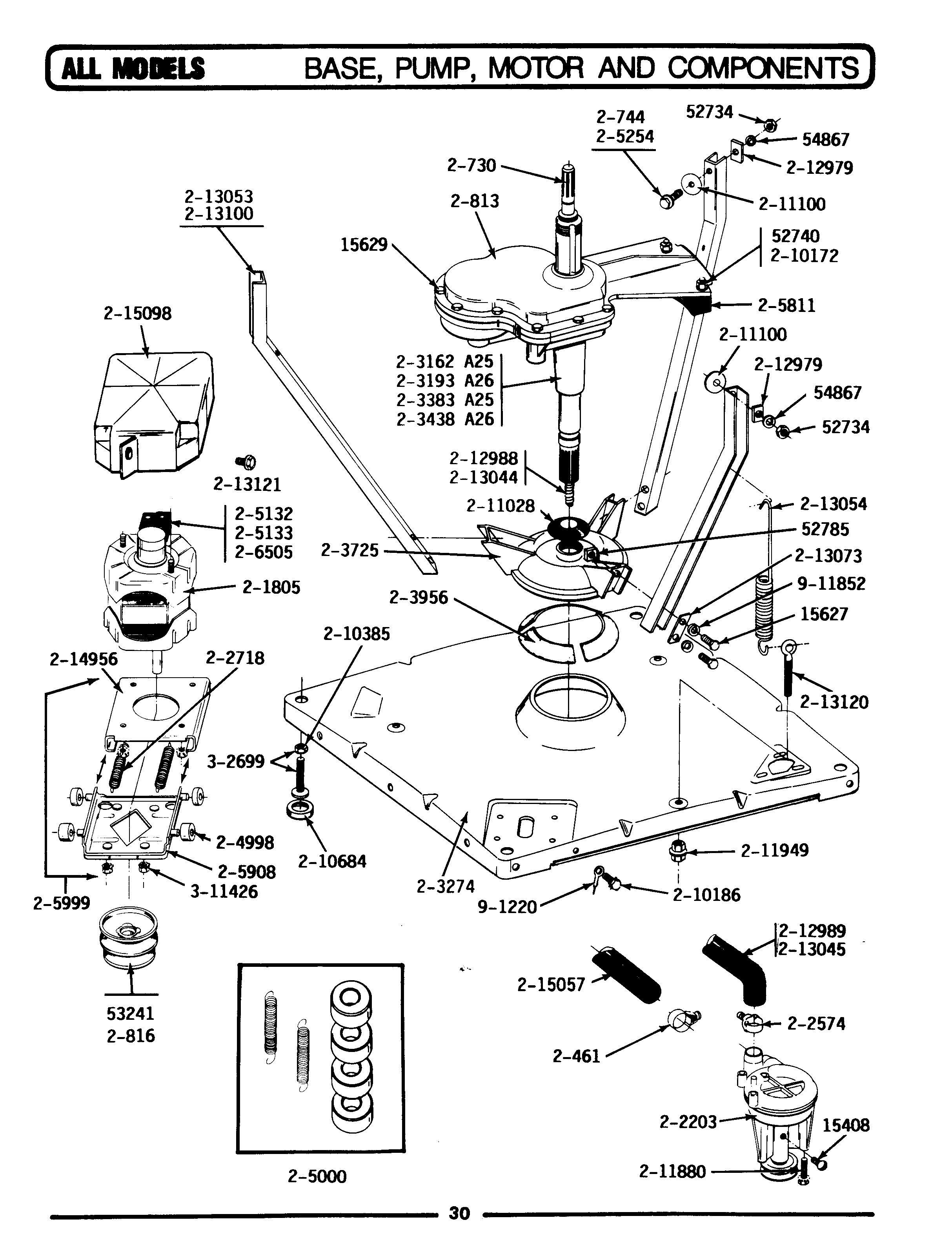

A25CT 09 – BASE, PUMP, MOTOR & COMPONENTS

Products

Position	Product
001	MAY Y015408
003	MAY Y015629
004	MAY Y052734
005	MAY Y052785
006	MAY Y053241
007	MAY Y054867
008	MAY 200461
009	MAY 200730
010	W10175939 Whirlpool Bolt Assembly
012	MAY 200816
013	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
014	MAY 202203
015	WP285655 Whirlpool Hose Clamp
016	202718 Whirlpool Tension Spring
019	MAY 203274
020	MAY 203383
021	PART NOT USED
022	MAY 203725
023	203956 Whirlpool Damper Pads 3 Pack with Poly
024	MAY Y204998
025	205000 Whirlpool Motor Spring and Guide Kit
026	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
027	2-1664-8 AND 2-5463
028	W10175938 Whirlpool Bolt
030	MAY 205908
031	MAY 205999
032	2-1664-11 AND 2-5463-1
033	DOWEL PIN FOR HANDLE
034	MAY 210186
035	WP210385 Whirlpool Lock Nut
036	WP210684 Whirlpool Dishwasher Leveling Leg Pad
037	MAY 211028
038	MAY 211100
039	WPY014874 Whirlpool Screw
040	WP211949 Whirlpool Nut
041	MAY 212979
042	MAY 212988
043	WPY212989 Whirlpool Outer Hose
044	PART NOT USED
045	WP213045 Whirlpool Dishwasher Tub to Pump Hose
046	PART NOT USED
047	MAY 213054
048	MAY 213073
049	MAY 213100
050	MAY 213120
051	WPW10346892 Whirlpool Screw
052	MAY 214956
053	MAY 215057
054	MAY 215098
055	LEG, ADJUSTABLE (W/NUT)—S
056	WP3400029 Whirlpool Dishwasher Nut
057	MAY 901220
058	MAY 911852
