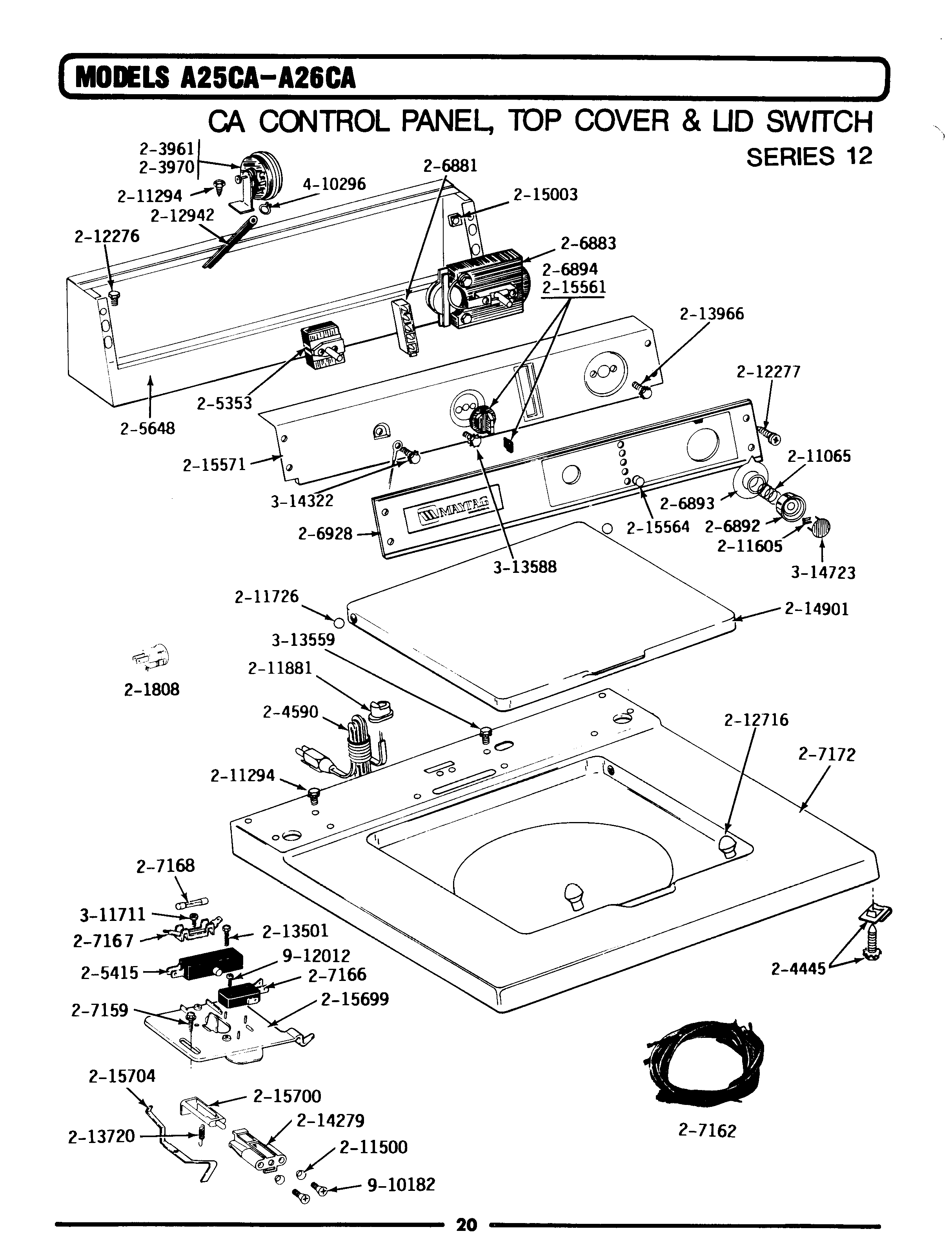

A26CA 02 – CONTROL PANEL, TOP CVR & LID SWTCH (12)

A26CA 02 – CONTROL PANEL, TOP CVR & LID SWTCH (12)

Written by

in

A26CA 02 – CONTROL PANEL, TOP CVR & LID SWTCH (12)

Products

PositionProduct
001MAY Y201808
002MAY 203961
003MAY 203970
004MAY 204445
005MAY 204590
006SWITCH, TEMP.
007W10820036 Whirlpool Door Switch Kit
008MAY 205448
012MAY 206892
013MAY 206893
014MAY 206894
015MAY 206928
016SCREW
018WP207166 Whirlpool CH Switch
019MAY 207167
020MAY 207168
022WP211065 Whirlpool Timer Spring
023WP90767 Whirlpool Screw
024MAY 211500
025MAY 211605
026WP211726 Whirlpool Ball Assembly
027GROMMET
028MAY 212276
029WP1163283 Whirlpool Air Conditioner Screw
030WP212716 Whirlpool Lid Bumper
031MAY 212942
032MAY 213501
033WP213720 Whirlpool Spring Assembly
034WP3400014 Whirlpool Dishwasher Screw
035MAY 214279
036LID-WHITE
037MAY 215003
038MAY 215561
039WP215564 Whirlpool Indicator Lens
040MAY 215571
041MAY Y215699
042DOWEL PIN FOR HANDLE
043MAY 215704
044MAY Y311711
045MAY Y313559
046WP488234 Whirlpool Air Conditioner Screw
047MAY Y314322
048WPW10133501 Whirlpool Cap
049MAY 910182
050MAY 912012
