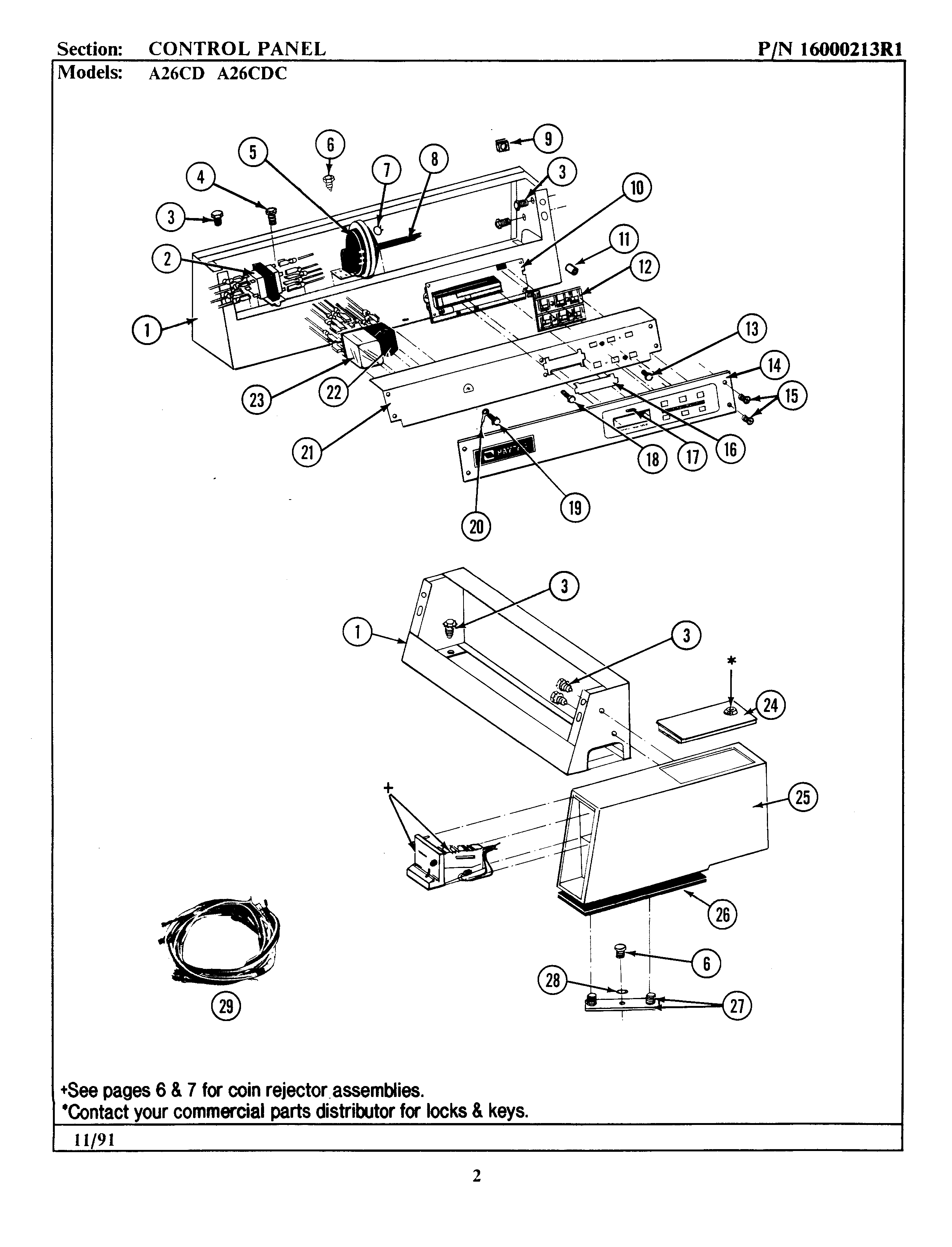

A26CDC 01 – CONTROL PANEL

A26CDC 01 – CONTROL PANEL

Written by

in

A26CDC 01 – CONTROL PANEL

Products

Position	Product
001	MAY 206780L
001	CONTROL COVER ASSY
002	MAY 207766
003	MAY 212276
004	MAY Y313559
005	MAY 203263
006	WP90767 Whirlpool Screw
007	WP596669 Whirlpool Hose Clamp
008	MAY 212942
009	MAY 215003
010	MAY 206828
010	M0282005 Whirlpool Nut
011	SPACER CIRCUIT BOARD
012	WPW10424308 Whirlpool Push Button
012	WPW10135389 Whirlpool Switch
013	W10756178 Whirlpool Screw
014	MAY 215519
015	WPW10131119 Whirlpool Screw
016	DISPLAY COVER
017	MAY 214610
018	SCREW, CIRCUIT BOARD
019	MAY Y314322
020	MAY 205810
021	BACK BRACKET ASSY
022	MAY 206824
023	SCREW, BUSHINGS
023	MAY 206421
024	MAY 203188M
024	ACCESS DOOR-ALMOND
024	MAY 203188
025	MAY 207940
025	(ALM)
026	MAY 214660
028	MAY 910309
029	DOWEL PIN FOR HANDLE
