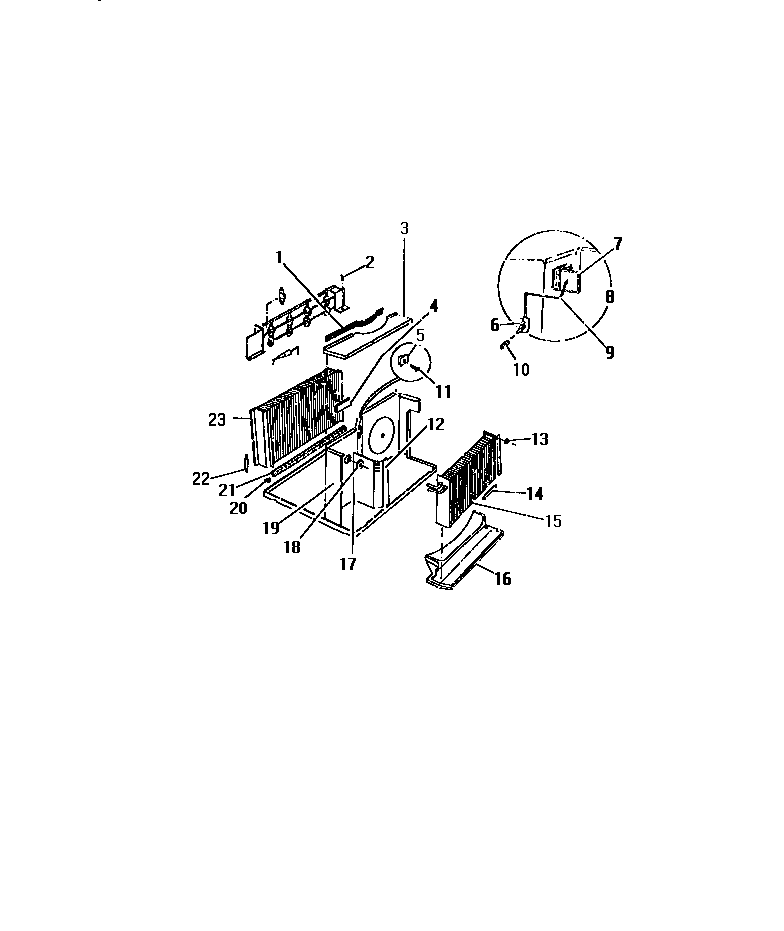

A2838C2 04 – EVAPORATOR, CONDENSER (`AAA` CABINE – Aparts

A2838C2 04 – EVAPORATOR, CONDENSER (`AAA` CABINE

Products

Position	Product
1	SEAL
2	WCI 8002951
3	PARTITION, HORIZONTAL
4	WCI 8006453
5	WCI 8009025
6	WCI 8007514
7	WCI 8006918
8	WCI 8007511
9	WCI 8007499
10	WCI 8007500
11	SCREW (4)
12	INSULATION
13	SPACER (2)
14	INSULATOR-TUBE
15	EVAPORATOR
16	WCI 8006917
17	DIVIDER, VERTICAL
18	GROMMET
19	WCI 8010970
20	CLIP-CONDENSER
21	SEAL
22	DRIER
23	WCI 8014234
23	CONDENSER
