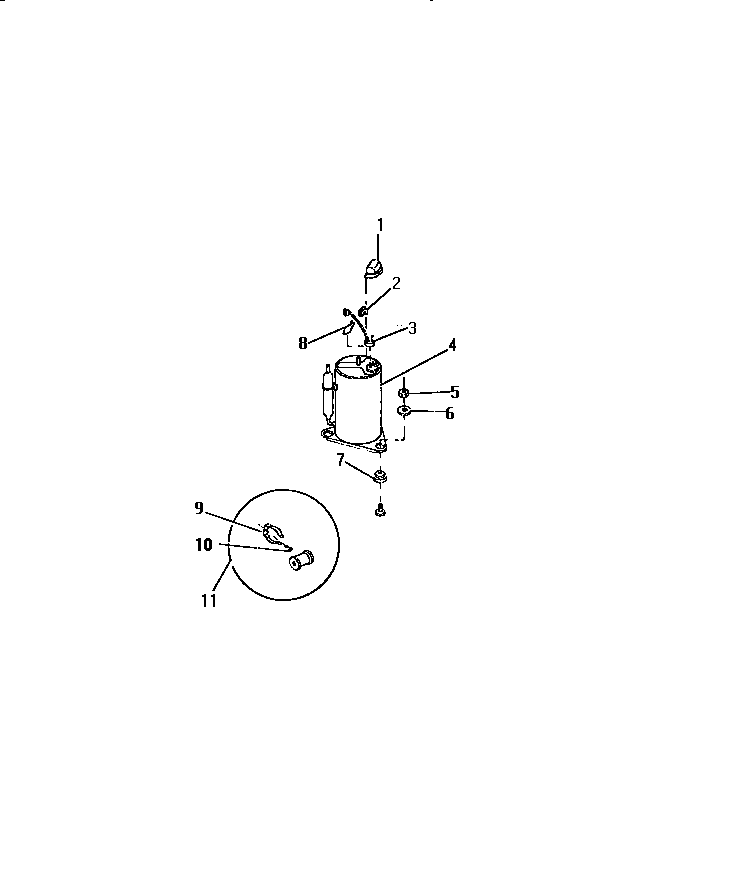

A2838D2 13 – COMPRESSOR (`AAA` CABINET MODELS)
Products
| Position | Product |
|---|---|
| 1 | COVER-TERMINAL |
| 2 | WCI 8014230 |
| 3 | PROTECTOR |
| 3 | PROTECTOR |
| 3 | WCI 8014227 |
| 4 | COMPRESSOR |
| 4 | WCI 8016177 |
| 5 | NUT |
| 6 | WASHER |
| 7 | GROMMET (3) |
| 8 | WCI 8014231 |
| 9 | CLAMP |
| 10 | SCREW |
| 11 | WCI 8950097 |
A2838D2 13 – COMPRESSOR (`AAA` CABINET MODELS)
| Position | Product |
|---|---|
| 1 | COVER-TERMINAL |
| 2 | WCI 8014230 |
| 3 | PROTECTOR |
| 3 | PROTECTOR |
| 3 | WCI 8014227 |
| 4 | COMPRESSOR |
| 4 | WCI 8016177 |
| 5 | NUT |
| 6 | WASHER |
| 7 | GROMMET (3) |
| 8 | WCI 8014231 |
| 9 | CLAMP |
| 10 | SCREW |
| 11 | WCI 8950097 |
